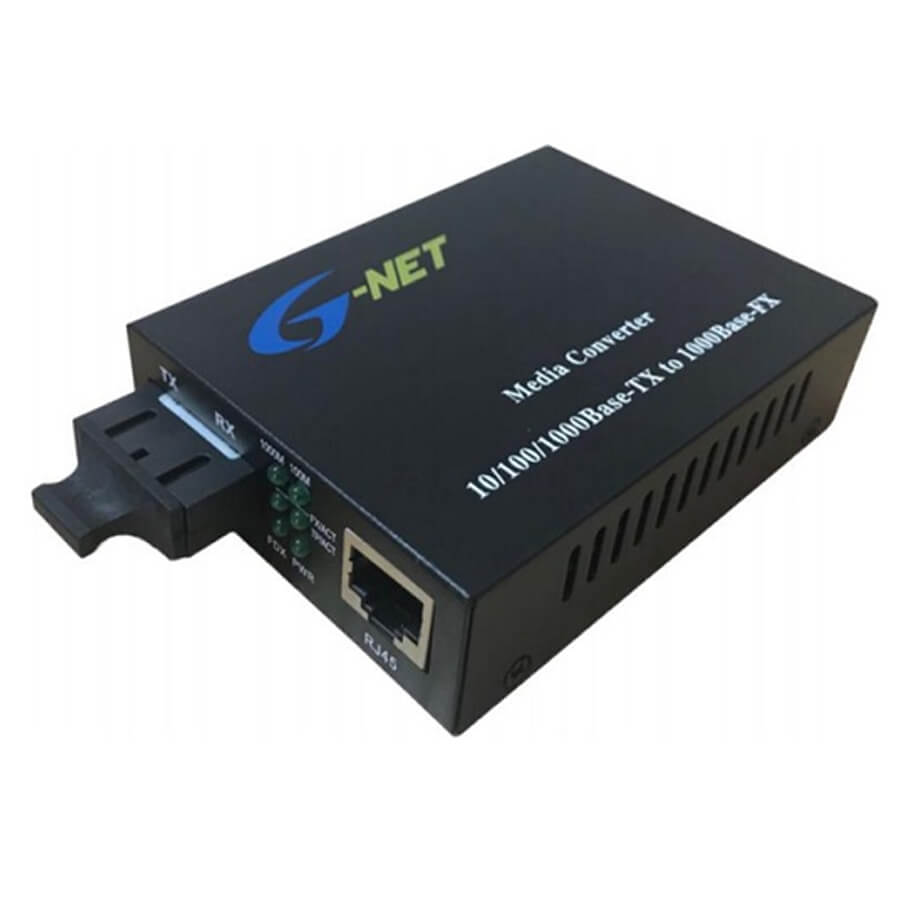

Chuyển đổi quang điện Media Converter G-NET HHD-220G-100
- 1x10/100/1000Base-TX+1x100Base-FX, dualfiber, singlemode, 100km, SC.
- Ethernet Port: 1 x 10/100/1000Base-TX.
- Fiber Port: 1x1000Base-FX Fiber port.
- Transmission Distance: 100km.
- Simplex SC/UPC connector.
- Compliant with IEEE802.3, IEEE 802.3ab, IEEE 802.3z, IEEE802.3u, IEEE802.3x standard.
- Supports auto MDI/MDI-X, obtains the fastest possible connection.
- Supports MAC address auto learning and auto aging.
- LED indicators display the working status, supporting simple trouble shooting.
- All ports support non-blocking full wire-speed forwarding rate.
- Plug and play, no configuration required.
- Desktop or Wall Mounted, easy to install and use.
- Fanless design, natural cooling.
- External Power Supply (Built-in power aslo avaliable).
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | MAC Address Table: 4K Packet Buffer Size: 256K Switching mode: Store and Forward Conversion mode: Medium conversion Delay time: <10μs Bit error rate: <1/1000000000 |
| Network Medium | Cat5 UTP |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | 1x1000Base-FX Fiber port Wavelength: 1310nm/1550nm Simplex SC/UPC connector |
| Ethernet Port | 1x10/100/1000Base-TX RJ45 Port Supports 10/100/1000Base-T auto negotiation and auto-MDI/MDI-X Support 10/100/1000M full/half duplex mode |
| Transmission Distance | 100km |
| LED Indicator | POWER (power) FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M) TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action) FDX(Ethernet interface mode indicator ON:Full duplex/OFF:Half duplex) |
| Power | External Power Adapter Input Voltage:AC100-240V,50/60Hz Output Voltage:DC 5V 2A Max Power consumption: 5W |
| Mechanical | Case: Metal Cooling way: Natural cooling,fanless design Installation:Desktop or Wall Mounted Dimension: 93 x 70 x 26 mm(L x W x H) |
| Environmental | Working Temperature: 0°C to 50°C Storage Temperature:-20°C to 70°C Working Humidity: 10%~90%(non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) |
| MTBF | 100,000 hours |
- Bảo hành: 24 tháng.
