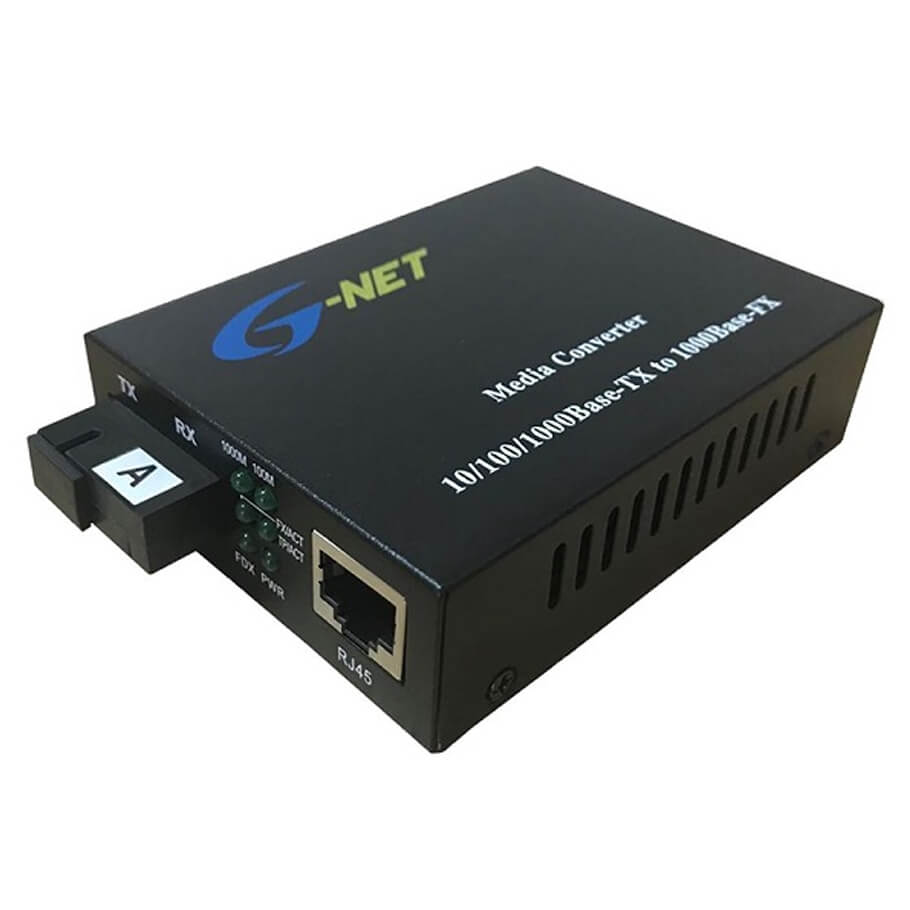

Chuyển đổi quang điện Media Converter G-NET HHD-210G-20A/B
- G-NET HHD-210G-20A/B là bộ chuyển đổi quang điện 1 sợi quang, tốc độ 10/100/1000Mbps sử dụng cho internet và camera IP.
- Khoảng cách truyền dẫn: 20km.
- Bước sóng: 1310nm.
- Đầu nối: SC.
- Tốc độ truyền: 10/100/1000Mbps.
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | MAC Address Table: 4K Packet Buffer Size: 256K Switching mode: Store and Forward Conversion mode: Medium conversion Delay time: <10μs Bit error rate: <1/1000000000 |
| Network Medium | 10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 UTP or better(≤100 meters) 1000BASE-TX: Cat5 UTP or better(≤100 meters) |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | 1x1000Base-FX Fiber port Wavelength: 1310nm Simplex SC/UPC connector |
| Ethernet Port | 1x10/100/1000Base-TX RJ45 Port Supports 10/100/1000Base-T auto negotiation and auto-MDI/MDI-X Support 10/100/1000M full/half duplex mode |
| Transmission Distance | 20km |
| LED Indicator | POWER (power) FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M) TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action) FDX(Ethernet interface mode indicator ON:Full duplex/OFF: Half duplex) |
| Power | External Power Adapter Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC 5V 2A Max Power consumption: 5W |
| Mechanical | Case: Metal Cooling way: Natural cooling,fanless design Installation: Desktop or Wall Mounted Dimension (L x W x H): 93 x 70 x 26 mm |
| Environmental | Working Temperature: 0°C to 50°C Storage Temperature:-20°C to 70°C Working Humidity: 10%~90%(non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) |
| MTBF | 100,000 hours |
- Bảo hành: 24 tháng.
