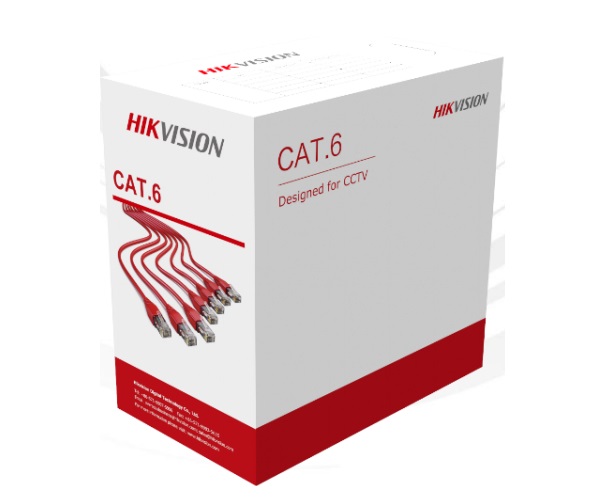

Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-SCO
- Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
- Compliant with RoHS 2.0.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Specification
| Model | DS-1LN6U-SCO |
| Category | Cat.6 |
| Reference standard | ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 |
| Conductor | Material: Solid-Bare Copper (99.95%) Diameter: 0.55 ± 0.005 mm, 23 AWG |
| Insulation | Material: HDPE Diameter: 0.98 ± 0.05 mm |
| Sheath | Thickness: 0.50 ± 0.10 mm Diameter: 6.00 ± 0.30 mm Material: PVC Color: Grey |
| Rip-cord | Yes |
| Separator | Yes |
| Sheath physical properties | |
| Before aging | Tensile strength ≥ 13.5 Mpa |
| Aging period | 100°C × 24h × 10d |
| After aging | Tensile strength ≥ 12.5 Mpa Elongation ≥ 125% |
| Cold bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks |
| Electrical Characteristics (20°C) | |
| 1.0-250.0 MHz impedance | 100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz |
| 1.0-250.0 MHz delay skew | ≤ 45 ns/100 m |
| DC resistance | ≤ 9.38 Ω/100 m |
| DC conductor resistance unbalance |
≤ 5.0% |
| Package dimension | 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75inch × 15.75inch × 9.45inch) |
| Weight | 12.3 ± 0.5kg |
| Cable length | (305 ± 1.5) m |
| Ambient temperature | -20°C to 75°C (-4°F to 167°F) |
| Operating voltage | 60 V |
