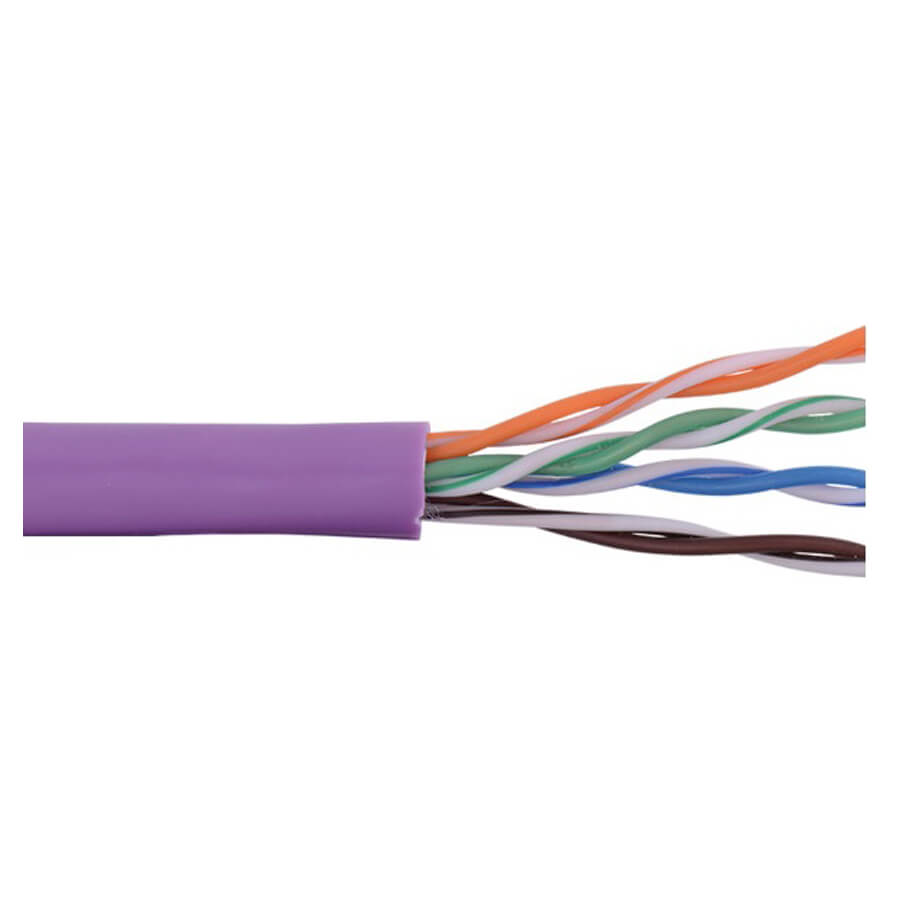

Cáp mạng VIVANCO CAT5e U/UTP VCCAUU54LSP3 (305m/Box, LSZH, Purple)
- Cáp mạng CAT5e 4 pair U/UTP Unshielded Cable, 305 m/Box, LSZH, Purple.
- Part number: VCCAUU54LSP3.
Compliance
- IEC/ISO 11801.
- ANSI/TIA/EIA-568-C.2
- IEC 61156-5.
Construction
- U/UTP.
- 24 AWG, soil bare copper.
- Jacket diameter: 5.1±0.3mm.
Features & Benefits
- Frequency 1-100MHZ, extended to 350MHZ.
- Suitable for 1000Base-T, Ethernet application.
- 25 year system warranty.
| Electrial Characteristics | |
| Direct Current Resistance of Each Conductor | ≤ 9.38 Ω / 100 m |
| Operating Capacitance | ≤ 5.6 nF/ 100m |
| Unbalanced Capacitance | ≤ 330 nF/ 100m |
| Impedance (ohms) | 1~100MHz 100±15% |
| NVP | 70% |
| Delay Deviation | ≤ 45ns |
| Physical Characteristics | |
| Maximum Tension | 110N |
| Minimum Bending Radius | 10 times max jacket diameter |
| Installation Temperature | 0~50°C (+32~122°F) |
| Storage Temperature | -20~75°C (-4~167°F) |
| Operating Temperature | -20~60°C (-4~140°F) |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
