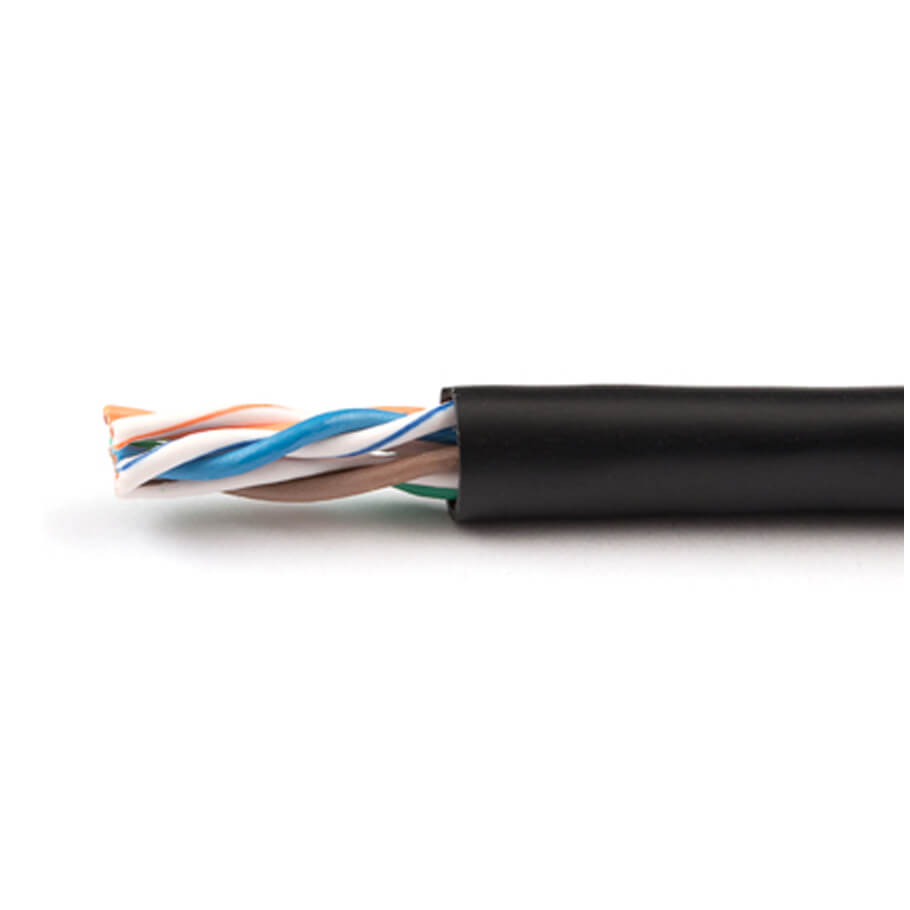

Cáp mạng outdoor VIVANCO CAT.5E UTP VCCAUU54PEK3 (305m/Box, LDPE, Black)
- Cáp mạng CAT.5E UTP, vỏ nhựa LDPE, màu đen, 305 mét/thùng.
- Thích hợp dùng trong nhà và ngoài trời.
- CAT.5E U/UTP Unshielded Cable, LDPE, Black, 305m/Pull box.
- Part number: VCCAUU54PEK3
Compliance
- ISO/IEC 11801
- ANSI/TIA/EIA-568-C.2
- IEC 61156-5
Construction
- U/UTP
- 0.51mm (24 AWG) solid bare copper
- 5.0mm max jacket diameter
Features and Benefits
- Frequency 1-100MHZ, extended to 300MHZ
- Suitable for 1000Base-T, Ethernet application
- 25 year system warranty.
|
Electrical Performance |
|
|
Direct Current Resistance of each Conductor |
＜9.38K/100m |
|
Operating Capacitance |
≤5.6nF/100m |
|
Unbalanced Capacitance |
≤330pF/100m |
|
Impedance (ohms) |
1-100MHz 100±15% |
|
NVP |
68% |
|
Delay Deviation |
≤45ns |
|
Physical Performance |
|
|
Items |
Specification |
|
Tensile |
110N |
|
Min. Bend Radius |
10 times of max jacket diameter |
|
Installation Temperature |
0 to 50℃(+32 to 122°F) |
|
Storage Temperature |
-20 to 75℃(-4 to 167°F) |
|
Operating Temperature |
-20 to 60℃(-4 to 140°F) |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
