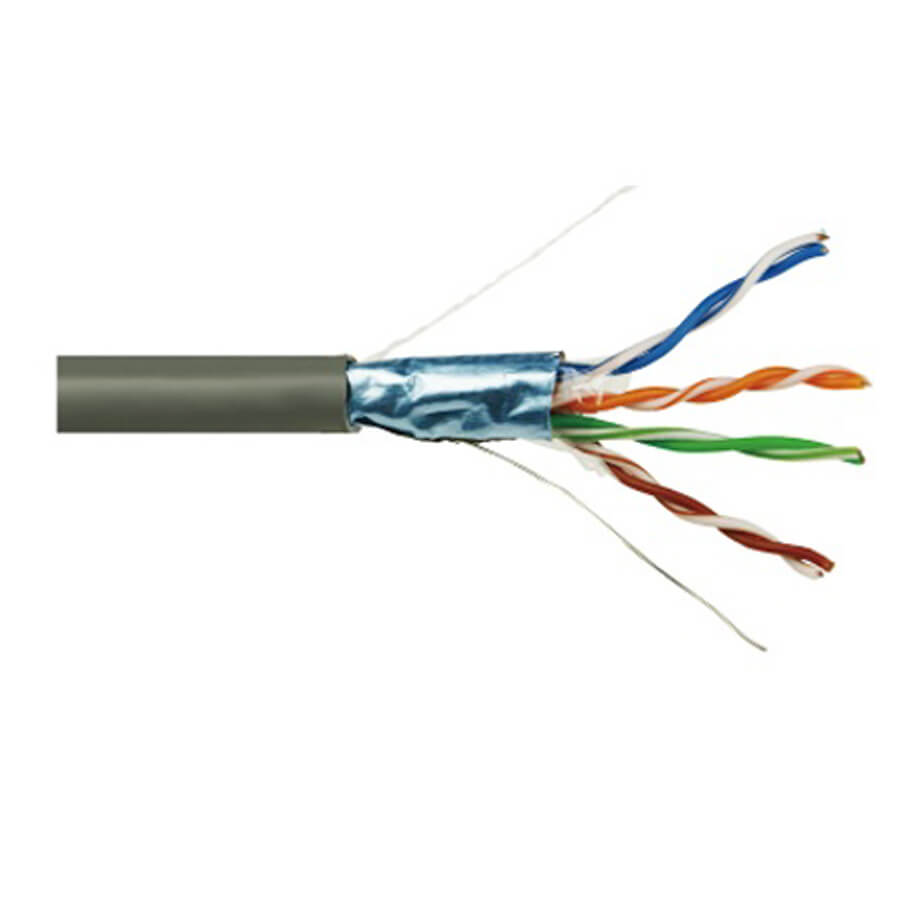

Cáp mạng VIVANCO CAT.5E FTP VCCAFU54PVG3 (305m/Drum, PVC, Grey)
- Cáp mạng bọc giáp chống nhiễu CAT.5E FTP, màu xám, 305 mét/cuộn.
- CAT.5E FTP Shielded Cable, PVC, Grey, 305m/Drum.
- Part number: VCCAFU54PVG3
Compliance
- ISO/IEC 11801
- ANSI/TIA/EIA-568-C.2
- IEC 61156-5
Construction
- F/UTP, 0.51mm (24 AWG) solid bare copper.
- 6.4mm(F/UTP) max jacket diameter.
Features and Benefits
- Frequency 1-100MHZ, extended to 350MHZ.
- Suitable for 1000Base-T, Ethernet application.
- 25 year system warranty.
|
Electrical Performance |
|
|
Direct current resistance of each conductor |
＜9.38Ω/100m |
|
Operating Capacitance |
≤5.6nF/100m |
|
Unbalanced capacitance |
≤330pF/100m |
|
Impedance (ohms) |
1-100MHz 100±15% |
|
NVP |
67% |
|
Delay deviation |
≤45ns |
|
Physical Performance |
|
|
Items |
Specification |
|
Tensile |
110N |
|
Min. Bend Radius |
10 times of max jacket diameter |
|
Installation Temperature |
0 to 50℃(+32 to 122°F) |
|
Storage Temperature |
-20 to 75℃(-4 to 167°F) |
|
Operating Temperature |
-20 to 60℃(-4 to 140°F) |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
