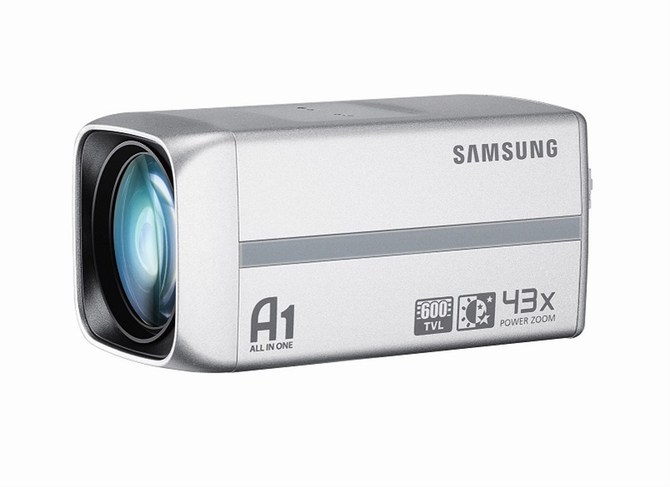

Camera Zoom SAMSUNG SCZ-3430P
- Cảm biến hình ảnh: 1/4” CCD.
- Độ phân giải 600 TV Lines.
- Độ nhạy sáng: 1.2 Lux; 50 IRE.
- Ống kính cố định: 3.2 ~ 138.5 mm.
- Góc camera quan sát: Ngang 1.47° ~ 1.10°; dọc 61.22° ~ 47.6°.
- Zoom quang: 43x.
- Chức năng phát hiện chuyển động.
- Zoom số: 1 ~ 16x.
- Chức năng chống ngược sáng BLC.
- Tự động điều chỉnh độ lợi.
- Chức năng giảm nhiễu số SNR (3D, 2D).
- Tiêu đề camera quan sát: 54 ký tự, 2 lines.
- Cân bằng ánh sáng trắng.
- Điều khiển Remote: RS485, CCVC.
- Nguồn điện: 12V DC.
- Công suất tiêu thụ: 5.6 W.
Chi tiết kỹ thuật
|
Electrical |
|
|
Input Voltage |
Dual (12V DC / 24V AC) |
|
Power Consumption |
Max 5.6W |
|
VIDEO |
|
|
Imaging Device |
1/4' Ex-view HAD PS CCD |
|
Total Pixels |
795(H) x 596(V) |
|
Effective Pixels |
752(H) x 582(V) |
|
Scanning System |
2 : 1 Interlace / Progressive |
|
Synchronization |
Internal / Line lock |
|
Frequency |
H: 15.625KHz / V: 50Hz |
|
Horizontal Resolution |
Color: 600TV line(Min.) / B/W: 700TV line(Min.) |
|
Min. Illumination |
Color : 0.7Lux(50IRE; F1.65), 0.001Lux(Sens-up, 512x), B/W: 0.07Lux(50IRE@F1.65) |
|
S / N (Y signal) |
52dB (AGC off, Weight on) |
|
Video Output |
CVBS: 1.0 Vp-p / 75Ω composite |
|
LENS |
|
|
Zoom Ratio |
43x (Optical), 16x (Digital) |
|
Focal Length |
3.2 ~ 138.5mm (F1.65 ~ 3.7) |
|
Max. Aperture Ratio |
1 : 1.65(Wide) ~3.7(Tele) |
|
Min. Object Distance |
100cm (3.28ft) |
|
Angular Field of View |
H: 61.22° (Wide) ~ 1.47°(Tele) / V: 47.16°(Wide) ~ 1.1°(Tele) |
|
Focus |
Auto / Manual / One AF |
|
OPERATIONAL |
|
|
On Screen Display |
English, Japanese, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Danish, Turkish |
|
Camera Title |
On / Off (Max. 54ea / 2 lines) |
|
Day & Night |
Auto (ICR) / Extern / Color / B/W |
|
Motion Detection |
Sensitivity 1~ 7 level |
|
Wide Dynamic Range |
160x |
|
Digital Image Stabilization |
On/Off |
|
Backlight Compensation |
BLC (On / Off) / WDR (SCZ-3430) |
|
Extended Dynamic Range |
Low / Medium / High / Off |
|
Digital ImageStabilizationProtocol |
On / Off |
|
Privacy Masking |
On / Off (12 polygonal programmable zones) |
|
2D+3D Noise Filter (A1) |
Off / Very low / Low / Medium / High / Very high / User / Fix |
|
Sens-up (Frame Integration) |
On / Off (Selectable limit ~ 512x) |
|
White Balance |
ATW1 / ATW2 / AWC (Manual) / 3200°K / 5600°K |
|
Electronic Shutter Speed |
1/60~1/10,000sec 1/50~1/10,000sec |
|
Digital Zoom |
On / Off (2x ~ 16x) |
|
AGC |
On / Off (Very Low / Low / Medium / High / Very High / User / Fix) |
|
PIP |
On / Off |
|
Schedule |
Day / Time schedule |
|
Communication |
RS-485, Coaxial control |
|
Protocol |
Samsung-T, Samsung-E, Pelco-D, Pelco-P, Bosch, Honeywell, Vicon, Panasonic, AD, GE |
|
ENVIRONMENTAL |
|
|
OperatingTemperature/Humidity |
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% |
|
MECHANICAL |
|
|
Dimension(WxHxD) |
59 x 59 x 144.2mm (2.32' x 2.32' x 5.68') |
|
Weight |
508g (1.12 lb) |
|
Certifications |
CE (Class A |
- Sản xuất tại Hàn Quốc.
- Bảo hành: 12 tháng.
