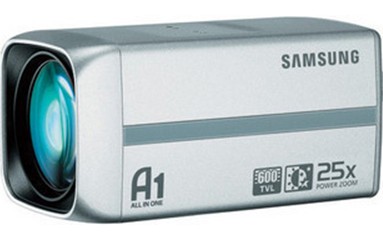

Camera Zoom SAMSUNG SCZ-2250PD
- Cảm biến hình ảnh: 1/4’’ Super HAD CCD II.
- Điểm ảnh: 752(H) x 582(V).
- Tần số: Ngang 15.625KHz / dọc 50Hz.
- Độ phân giải camera 600 TV Lines (Color); B/W 700 TV Lines
- Độ nhạy sáng: (Color) 0.2Lux; F1.65 (50IRE).
- Ống kính cố định: 3.66 ~ 91.36 mm.
- Zoom quang: 25x.
- Góc quan sát: H - 54.95°(Wide) ~ 2.24°(Tele) / V:41.83°(Wide) ~ 1.68°(Tele).
- Đa ngôn ngữ.
- Tiêu đề camera: 54 ký tự.
- Chế độ quan sát Ngày và Đêm: OFF/ ON/ EXT.
- Chức năng lọc nhiễu số 3D, 2D (OFF/ LOW/ MID/ HIGH/ USER).
- Chức năng phát hiện chuyển động.
- Zoom số: 16x.
- Hỗ trợ giao thức: Coax - CCVC RS-485 - Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon.
- Sử dụng nguồn: 12V DC ±10%.
Chi tiết kỹ thuật
|
VIDEO |
|
|
Imaging Device |
1/4' Super HAD CCD II |
|
Total Pixels |
795(H) x 596(V) |
|
Effective Pixels |
752(H) x 582(V) |
|
Scanning System |
2 : 1 Interlace |
|
Synchronization |
Internal |
|
Frequency |
H: 15.625KHz / V: 50Hz |
|
Horizontal Resolution |
Color: 600TV lines, B/W: 700TV lines |
|
Min. Illumination |
Color: 0.2 Lux@F1.65 (50IRE), 0.0004 Lux (Sens-up, 512x) B/W: 0.02Lux@F1.65 (50IRE), 0.00004Lux (Sens-up, 512x) |
|
S / N Ratio |
52dB (AGC off, Weight on) |
|
Video Output |
CVBS: 1.0 Vp-p / 75Ω composite |
|
LENS |
|
|
Focal Length (Zoom Ratio) |
3.66 ~ 91.36mm (Optical 25x) |
|
Max. Aperture Ratio |
1 : 1.65(Wide) ~ 3.0(Tele) |
|
Angular Field of View |
H: 54.95°(Wide) ~ 2.24°(Tele) / V: 41.83°(Wide) ~ 1.68°(Tele) |
|
Min. Object Distance |
1m (3.28ft) |
|
Focus Control |
Auto / Manual / One AF |
|
Zoom Movement Speed |
2.9sec (Wide to tele) |
|
OPERATIONAL |
|
|
On Screen Display |
English,
French, German, Spanish, Italian, Chinese, Russian, Polish, Czech,
Romanian, |
|
Camera Title |
Off / On (Displayed 54 characters) |
|
Day & Night |
Day / Night / Auto / Ext |
|
Backlight Compensation |
Off / On (Area setting) |
|
Contrast Enhancement |
XDR (Off / Low / Mid / High) |
|
Digital Noise Reduction |
Adaptive 3D+2D (Off / Low / Mid / High / User) |
|
Digital Image Stabilization |
Off / On |
|
Motion Detection |
Off / Tracking / Detection |
|
Privacy Masking |
Off / On (12 programmable zones with polygonal masking) |
|
Sens-up (Frame Integration) |
2x ~ 512x |
|
Gain Control |
Off / On |
|
White Balance |
ATW1 / ATW2 / AWC (Manual) / 3200K / 5600K |
|
Electronic Shutter Speed |
1/50 ~ 1/120,000sec |
|
Digital Zoom / Reverse |
Off / On (1x ~ 16x) / Off / H / V / H/V |
|
Profile |
Standard / ITS / Backlight / Day & Night / Gaming / Custom |
|
VPS / Intelligent Video |
Off / On: SCZ-3250 / Fixed / Moved |
|
PIP |
Off / On |
|
Schedule |
Day / Time |
|
Alarm |
1 Out |
|
Communication |
Coaxial control (SPC-300 compatible), RS-485 |
|
Protocol |
Coax: CCVC RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon |
|
ENVIRONMENTAL |
|
|
Operating Temperature / Humidity |
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH |
|
ELECTRICAL |
|
|
Input Voltage / Current |
12V DC ±10% |
|
MECHANICAL |
|
|
Color / Material |
Silver / Aluminum, Steel |
|
Dimensions (WxHxD) |
59.0 x 59.0 x 124.2mm (2.32' x 2.32' x 4.89') |
|
Weight camera |
421g (0.93 lb) |
- Sản xuất tại: Hàn Quốc.
- Bảo hành: 12 tháng.
