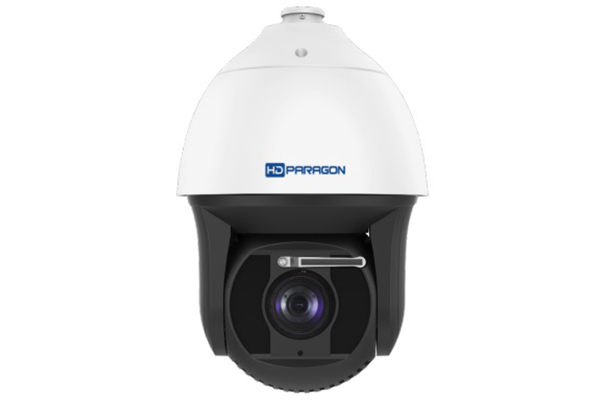

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HDPARAGON HDS-PT8242IX-AELWT3

Trang Chủ >> Camera quan sát >> Camera IP HDPARAGON >> Camera IP Speed Dome hồng ngoại 2.0 Megapixel HDPARAGON HDS-PT8242IX-AELWT3
Mã số:02727626
Camera IP Speed Dome hồng ngoại 2.0 Megapixel HDPARAGON HDS-PT8242IX-AELWT3

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HDPARAGON HDS-PT8242IX-AELWT3

- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.

- Độ phân giải: 2.0 Megapixel.

- Darkfighter Ultra-low illumination technology (Color: 0.002 Lux @(F1.2, AGC ON), B/W:

0.0002 Lux @(F1.2, AGC ON),0 Lux with IR).

- Zoom quang: 42x.

- W: Wiper (hỗ trợ cần gạc nước).

- Tầm camera quan sát hồng ngoại: 400 mét.

- Chức năng quan sát Ngày và Đêm (IR-CUT).

- Chức năng theo dõi thông minh Smart tracking là công nghệ tiên tiến cho camera quay quét, cho phép tăng cường hiệu quả của hệ thống giám sát hình ảnh

- Chức năng phát hiện thông minh Smart detection.

- Chức năng chống ngược sáng WDR 140dB.

- Chức năng giảm nhiễu số 3D-DNR.

- Chức năng Smart IR là một công nghệ được phát triển nhằm phục vụ camera an ninh điều chỉnh cường độ của đèn LED hồng ngoại. Công nghệ Smart IR được phát minh để giải quyết vấn đề đền LED phát ánh sáng hồng ngoại ở cự ly gần bị lóa vào ban đêm.

- Chức năng chống sương mù defog.

- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Chức năng cấp nguồn qua mạng Hi-PoE.

- Nguồn điện: 24VAC.

Đặc tính kỹ thuật

Model HDS-PT8242IX-AELWT3
Camera Module
Image Sensor  1/1.8 inch progressive scan CMOS
Min. Illumination  Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Speed  1/1 s to 1/30,000 s
Focus  semi-auto, manual, auto
Day & Night  ICR
BLC Yes
WDR  140 dB WDR
HLC  Yes
3D DNR  Yes
EIS  Yes. Built-in gyroscope to improve EIS performance
Regional Exposure  Yes
Regional Focus  Yes
Digital Zoom  16 ×
Optical Zoom  42 ×
Privacy Mask  up to 24 masks, polygon region, mosaic mask, mask color configurable
General Function mirror, password protection, watermark, IP address filter
Optical Defog  Yes
Lens
Focal Length  6.0 mm to 252 mm, 42 × Optical
Zoom Speed  Approx. 4.5 s
FOV  Horizontal field of view: 56.6° to 1.7° (wide-tele)
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele)
Aperture  F1.2 to F4.6
PTZ
Movement Range (Pan)  360°
Movement Range (Tilt)  -20° to 90° (auto flip)
Pan Speed  Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed  Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Zoom  Yes
Presets  300
Patrol Scan  8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory  Yes
Park Action  Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning  Yes
PTZ Status Display  Yes
Preset Freezing  Yes
Scheduled Task  Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution  1920 × 1080
Main Stream  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression  H.265, H.264, MJPEG
H.264 Type  Baseline profile, main profile, high profile
H.265 Type  Main profile
H.264+  Yes
H.265+ Yes
SVC Yes
ROI  Dynamic face tracking, fixed region, dynamic license plate tracking
Audio
Audio Compression  G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate  64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
Smart Features
Face Capture  Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road Traffic  Support vehicle detection (license plate number, vehicle model, and vehicle color recognition)
Basic Event  Motion detection, video tampering alarm, alarm input and output
Smart Event  Unattended Baggage Detection, Object Removal Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection
Smart Tracking  Manual tracking, event tracking, auto-tracking
Smart Record  ANR, Dual-VCA
Alarm Linkage  Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Vandal-proof Alarm Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Network
Protocols  IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API  ISAPI ,HDPARAGON SDK,ONVIF (Profile S, Profile G, Profile
Simultaneous Live View  Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Measures  User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client  Guarding Vision, Guarding Vision client
Web Browser  IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
Interface
Communication Interface  1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
On-board Storage Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input  7 alarm inputs
Alarm Output  2 alarm outputs
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output  1 audio output, line level, impedance: 600 Ω
Ω Video Output 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
RS-485  Pelco-P, Pelco-D, self-adaptive
Supplement Light
IR Distance  400 m
Smart IR  Yes
General
Power  24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
Operating Conditions  Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Wiper  Yes
Dimensions  Φ 266.6 mm × 410 mm
Weight  Approx. 8 kg

- Bảo hành: 24 tháng.
