0916 287 068 Camera IP Hanwha Techwin WISENET TNB-9000/VAP
Trang Chủ >>
Camera quan sát >> Camera IP Hanwha Vision >> Camera IP Hanwha Techwin WISENET TNB-9000/VAP
Mã số:02065862

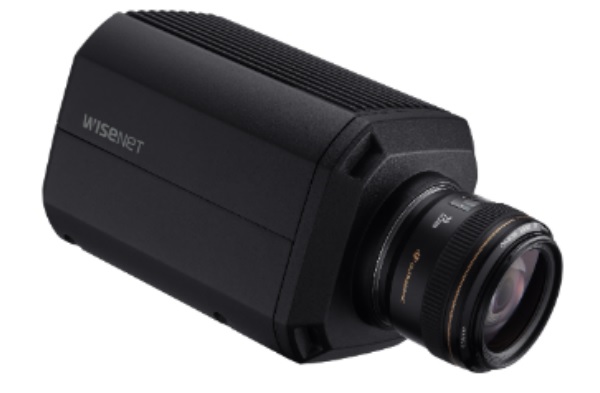

Camera IP Hanwha Techwin WISENET TNB-9000/VAP
- Cảm biến hình ảnh: CMOS.
- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
- Hỗ trợ khe cắm Micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 256GB.
- Độ nhạy sáng camera ip: Color: 0.015Lux (F1.4, 1/30sec), B/W: 0.0015Lux(F1.4, 1/30sec)
- Tương thích với ống kính Canon.
- Phân tích video thông minh dựa trên AI (Phát hiện / phân loại đối tượng, thuộc tính, BestShot).
- Chức năng quan sát Ngày và Đêm (ICR).
- Tương thích với tín hiệu ngõ ra: Video HDMI (1080p 30 khung hình / giây).
- Hỗ trợ WiseStreamII.
- Giao tiếp cổng: RJ-45, SFP (100 / 1000Mbps)
- Hỗ trợ chức năng cấp nguồn qua mạng HPoE (IEEE802.3bt, Class5).
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | TNB-9000/VAP |
| Video | |
| Imaging Device | 43.3mm Full-frame CMOS |
| Effective Pixels | 7680(H) x 4320(V) |
| Min. Illumination | Color : 0.015Lux(F1.4, 1/30sec) B/W : 0.0015Lux(F1.4, 1/30sec) |
| Video Out | HDMI: 1080p@30fps |
| Lens | |
| Angular Field of View | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) : Horizontal field of view: 8K 62.1° Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) : Horizontal field of view: 8K 44.5° Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) : Horizontal field of view: 8K 31.6° Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) : Horizontal field of view: 8K 19.2° Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) : Horizontal field of view: 8K 16.1° Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) : Horizontal field of view: 8K 23.2° ~ 8.3° |
| Focus Control | Autofocus |
| Lens Type | Canon EF mount Lens |
| Mount Type | Canon EF mount |
| Optional Lens | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) |
| Operational | |
| Camera Title | Displayed up to 75 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, DWDR |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point polygonal zones (in 8K resolution only) |
| Privacy Masking | 6ea, Rectangular - Color: Grey/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec) |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object - Analytics events based on AI engine : object detection, Directional detection, Enter/Exit, Loitering, Virtual line - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 7680x4320, 7360x4128, 6016x3384, 6016x4008, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: 8K @ Max. 15fps (Mode 0) : Available in Jan. 2020 H.265/H.264: 24MP @ Max. 20fps (Mode 1) : Available in May. 2020 H.265/H.264: 15MP @ Max. 30fps (Mode 2) : Available in May. 2020 H.265/H.264: 4K @ Max. 60fps (Mode 3) : Available in May. 2020 |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Web Viewer | Supported OS: Windows 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental | |
| Operating Temperature / Humidity | 0°C ~ +45°C (32°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -40°C ~ +65°C (-40°F ~ +149°F) / Less than 90% RH |
| Certification | EMC EN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A, IC ICES-003 Class A, Safety UL 60950-1 |
| Electrical | |
| Input Voltage | HpoE (IEEE802.3bt, Class5), 12VDC |
| Power Consumption | PoE: Max 30W, typical 20W 12VDC: Max 26W, typical 18W |
| Mechanical | |
| Color / Material | Black / Aluminum |
| Product dimensions / weight | 120 x 118.1 x 179mm, 2.1Kg |
| Package dimensions / weight | 250 x 250 x 323mm, 3.8Kg |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
