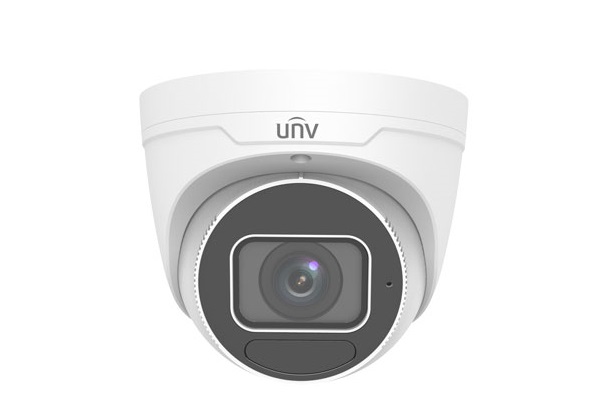

Camera IP Dome hồng ngoại 8.0 Megapixel UNV IPC3638SB-ADZK-I0

Trang Chủ >> Camera quan sát >> Camera IP UNV >> Camera IP Dome hồng ngoại 8.0 Megapixel UNV IPC3638SB-ADZK-I0
Mã số:02943398
Camera IP Dome hồng ngoại 8.0 Megapixel UNV IPC3638SB-ADZK-I0

Camera IP Dome hồng ngoại 8.0 Megapixel UNV IPC3638SB-ADZK-I0

- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.

- Độ phân giải: 8.0 Megapixel.

- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.

- Ống kính: 2.8 ~ 12mm.

- Tầm quan sát hồng ngoại: 40 mét.

- Công nghệ LightHunter đảm bảo chất lượng hình ảnh cực cao trong môi trường ánh sáng yếu.

- Công nghệ WDR thực 120dB cho phép hình ảnh rõ nét trong cảnh ánh sáng mạnh.

- Hỗ trợ chế độ hành lang Corridor Mode.

- Tích hợp micro.

- Hỗ trợ khe cắm thẻ nhớ micro SD 256GB.

- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Hỗ trợ cấp nguồn qua mạng PoE.

Đặc tính kỹ thuật

Model IPC3638SB-ADZK-I0
Camera
Sensor 1/2.8', 8.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Angle of view (H) 107.4°~ 29.2°
Angle of View (V) 54.2°~ 16.3°
Angle of View (O) 111.0°~33.1°
Adjustment angle Pan: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9.0W
Dimensions (Ø x H) Φ129 x 110mm (Ø5.1” x 4.3”)
Net Weight 0.69kg (1.52lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported

- Bảo hành: 02 năm.

Giá: Vui lòng gọi (Đã bao gồm VAT)
