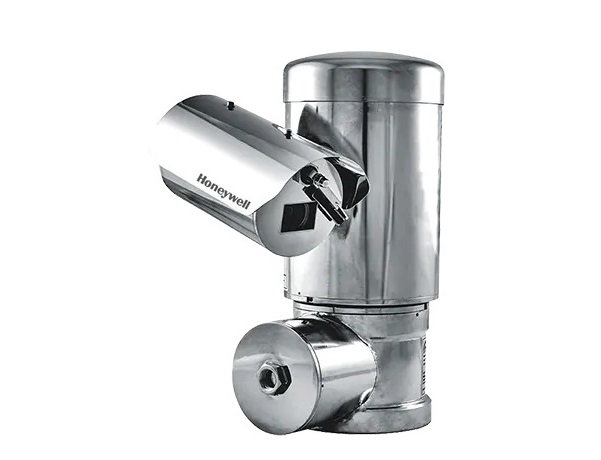

Camera IP chống cháy nổ PTZ 2.0 Megapixel HONEYWELL HEPZ302W0

Trang Chủ >> Camera quan sát >> Camera IP HONEYWELL >> Camera IP chống cháy nổ PTZ 2.0 Megapixel HONEYWELL HEPZ302W0
Mã số:02891233
Camera IP chống cháy nổ PTZ 2.0 Megapixel HONEYWELL HEPZ302W0

Camera IP chống cháy nổ PTZ 2.0 Megapixel HONEYWELL HEPZ302W0

- Cảm biến hình ảnh: 1/2.8-inch Sony Progressive CMOS.

- Độ phân giải camera ip: 2.0 Megapixel.

- Ống kính: 4.5 mm – 135 mm/ F1.6 – F4.4.

- Tốc độ khung hình: Lên đến 60 fps.

- Độ nhạy sáng tối thiểu: 0.005 lux (color), 0.0005 lux (B/W)@ F1.6.

- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: 24 VAC, 5A, 50/60 Hz Max 120W.

Đặc tính kỹ thuật

Model  HEPZ302W0
CAMERA
Image Sensor 1/2.8-inch Sony Progressive CMOS
Optical Zoom  30x
Digital Zoom 16x
Number Of Pixels (H × V) 1920 × 1080 (1080p)
WDR 120 dB
S/N Ratio ≥ 55 dB (AGC off)
Minimum Illumination 0.0187 lux (color)/0.012 lux (B/W) @ F1.6, 30 IRE, 1/30
0.0547 lux (color)/0.0348 lux (B/W) @ F1.6, 50 IRE, 1/30
0.005 lux (color)/0.0005 lux (B/W) @ F1.6, long exposure
Focal Length 4.5 mm – 135 mm
Max Aperture F1.6 – F4.4
Focus Mode Manual/Auto/Semiauto/PTZ Trigger
Angle Of View H: 62.35° – 2.53°; V: 37.87° – 1.79°
White Balance Auto/Indoor/Outdoor/ATW/Manual/ Outdoor Auto/Sodium Lamp Auto/ Sodium Lamp
Exposure Mode Iris Priority/Shutter Priority/Gain Priority/Manual
Electronic Shutter 1/1 to 1/30,000 sec
Backlight Compensation BLC/HLC/WDR (120 dB)
Electronic Image Stabilization On/Off
Defog On/Off
Day/Night Auto/Color/BW
OPERATION
Pan Travel 360° endless
Tilt Travel -90° to 90°
Manual Speed 0.1 to 100°/s
Presets 250
Preset Accuracy ±0.02°
Preset Speed 0.1 to 100°/s
PTZ Mode Tour, Auto Pan
Idle Motion Support Preset, Tour
Privacy Masks 24
Motion Detection On/Off
Image Rotation Flip
Auto Resume After Power Failure Preset, Tour, Auto
Auto Tracking Yes
Video Analytics ADPRO IntrusionTrace, ADPRO LoiterTrace, Face Detection
Event Notification Record to FTP, Relay output, Email, Preset, Tour, Snapshot
Web Languages Supported English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish
MECHANICAL
Dimensions 540 mm × 310 mm × 490 mm (21.3' × 12.2' × 19.3')
Weight Product: 27.5 kg (60.6 lb.); Package: 30.4 kg (67.0 lb.)
Housing AISI 316L Stainless Steel Construction
Sunshield Yes
Wiper Yes
Threaded Hole 3/4-inch NPT
Connectors Power input: 3-pin
Network: RJ45 connector
Alarm I/O: 1/1 (washer control)
Hardware Reset: 1
ELECTRICAL
Power Source 24VAC, 120W Min
Power Consumption 24 VAC, 5A, 50/60 Hz
ENVIRONMENTAL
ATEX II 2 G Ex d IIC T6 Gb Ta –40°C to 60°C
II 2 D Ex tb IIIC T85° C Db Ta –40°C to 60°C
IECEx Ex d IIC T6 Gb Ta –40°C to 60°C
Ex tb IIIC T85° C Db Ta –40°C to 60°C
UL Listed For USA Class I, Zone 1, AEx d IIC T6
Zone 21, AEx tb IIIC T85°C
Class I, Division 2, Groups A, B, C & D
Class II, Division 2, Groups F & G
UL Listed For Canada Class I, Zone 1, Ex d IIC T6 Gb
Class II, Groups E, F & G
Class I, Division 2, Groups A, B, C & D
Class II, Division 2, Groups F & G
Operating Temperature -40°C to 60°C (–40°F to 140°F), Cold start –40°C (–40°F)
Relative Humidity 10% to 95%, non-condensing
Waterproof Standard IP66 (EN60529)
IP SPECIFICATIONS
Video Compression H.265 / H.264 / MJPEG
Video Streaming Primary Stream: 1080p up to 60/50 fps; 1.3M/720p up to 30/25 fps
2nd Stream: 1080p/1.3M/720p up to 30/25 fps
3rd Stream: D1/CIF up to 30/25 fps
Video Resolution Up to 1080p (1920×1080p)
Interface RJ-45, 10/100 Mbps Ethernet
Supported Protocols IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL,
ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP,
Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF, RS485, Pelco P, Pelco D
Security Multiple user access levels with enhanced password policy, IP filtering, IEEE 802.1x, Strong Digest authentication for Access permission, HTTPS, TLS1.2 only; high strength encrypted algorithm AES-256, SSH/Telnet closed and FTP disabled to reduce surface being attacked, PCI-DSS compliant, built-in
cybersecurity hardware chipset
Maximum Users Access 20 users
Supported Web Browsers Internet Explorer® (11.0+), Firefox, Chrome
Supported OS Windows® 7 32-bit/64-bit
Communication ONVIF Profile S and Q
REGULATORY
ATEX EN60079-0; EN60079-1; EN60079-31
IECEx IEC 60079-0; IEC 60079-1; IEC 60079-31
UL UL 60079-0 & C22.2 N0. 60950-0:11;
UL 60079-1 & C22.2 N0. 60950-1:11;
UL 60079-31 & C22.2 N0. 60950-31:12
Emissions EN55032; ANSI C63.4-2014, ICE 003 Rev6, AS/NZ CISPR 32:2013
Immunity EN50130-4
Safety EU: EN60950-1; EN60950-22
UL 60950-1; UL 60950-22
IEC60950-1; IEC60950-22
RoHS EN50581

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi
