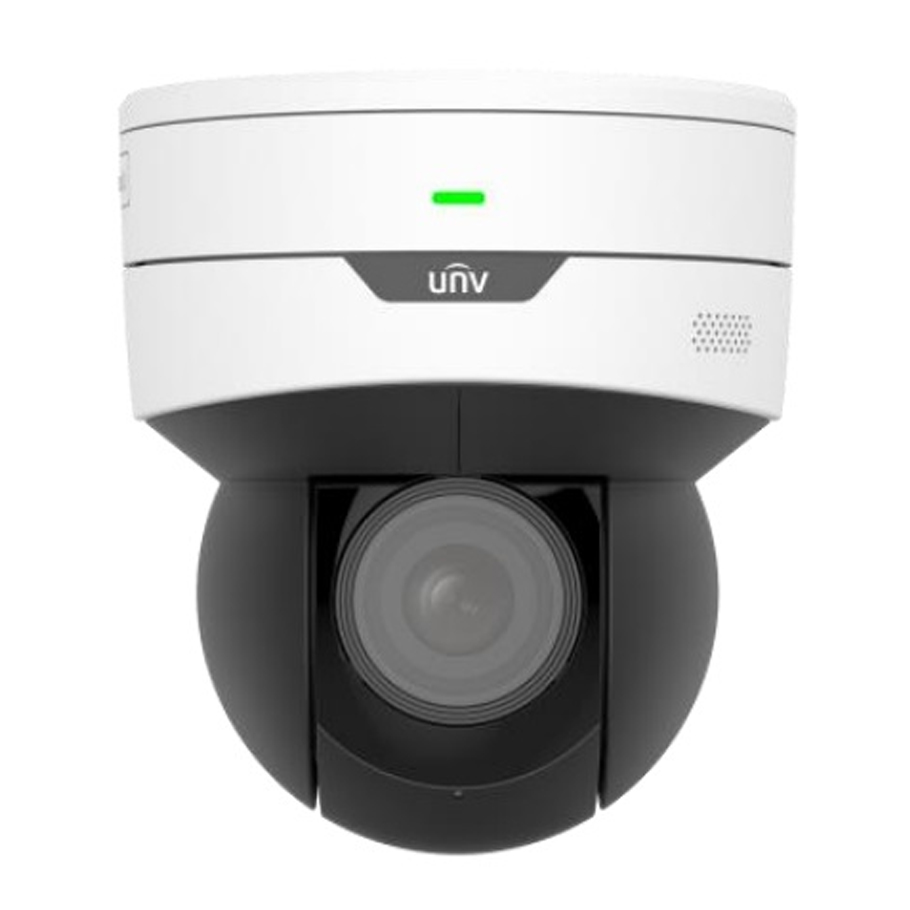

Camera IP Speed Dome hồng ngoại không dây 5.0 Megapixel UNV IPC6415SR-X5UPW-VG
- Cảm biến hình ảnh: 1/2.7 inch progressive scan CMOS.
- Độ phân giải: 5.0 Megapixel.
- Độ nhạy sáng: Colour:0.003 lux (F1.2, AGC ON); 0Lux with IR on.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Ống kính: 2.7~13.5mm, lấy nét tự động AF và ống kính zoom động cơ.
- Góc nhìn: 106.9°~30.6° (H), 56.0°~17.7° (V), 131.5°~39.8° (D).
- Tầm quan sát hồng ngoại: 30 mét với công nghệ hồng ngoại thông minh (Smart IR).
- Ống kính quang học 5x.
- Hỗ trợ công nghệ LightHunter mang đến chất lượng hình ảnh cực cao trong môi trường thiếu sáng.
- Hỗ trợ thẻ SD lên tới 256GB.
- Hỗ trợ tính năng thông minh:
+ Ngăn chặn xâm nhập thông minh;
+ Hỗ trợ lọc cảnh báo sai: Phát hiện đường chéo, phát hiện xâm nhập, phát hiện khu vực vào, phát hiện khu vực rời khỏi.
- Hỗ trợ các tính năng camera: 120dB WDR, HLC, BLC, Digital Defog, 2D/3D DNR.
- Tích hợp Mic và loa, hỗ trợ đàm thoại hai chiều.
- Hỗ trợ kết nối Wifi.
- Hỗ trợ một cổng vào và một cổng ra báo động.
- Nguồn điện: DC12V(±25%), PoE(IEEE 802.3at).
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/2.7 inch, 5.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour:0.003 lux (F1.2, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Lens type | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens |
| Iris | Auto aperture |
| Field of View (H) | 106.9°~30.6° |
| Field of View (V) | 56.0°~17.7° |
| Field of View (D) | 131.5°~39.8° |
| Illuminator | |
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880*1620),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZLive EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt | |
| Pan Range | 350° |
| Pan Speed | 0.1°/s ~ 60°/s Preset speed: 60°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 0.1° ~ 50°/s Preset speed: 50°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patro |
| Patrol Stay Time | 120s~1800s |
| Home Position | Support |
| Interface | |
| Alarm I/O | 1/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support (IEEE802.11b/g/n) |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| General | |
| Power | DC12V(±25%), PoE(IEEE 802.3at) Power consumption: Max 15W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ129 x 143.6mm |
| Weight | 0.76kg |
| Working Environment | -10℃~50℃(14°F ~ 122°F),Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) |
| Surge protection | 4KV |
| Reset Button | Support |
Xuất xứ: Trung Quốc.
