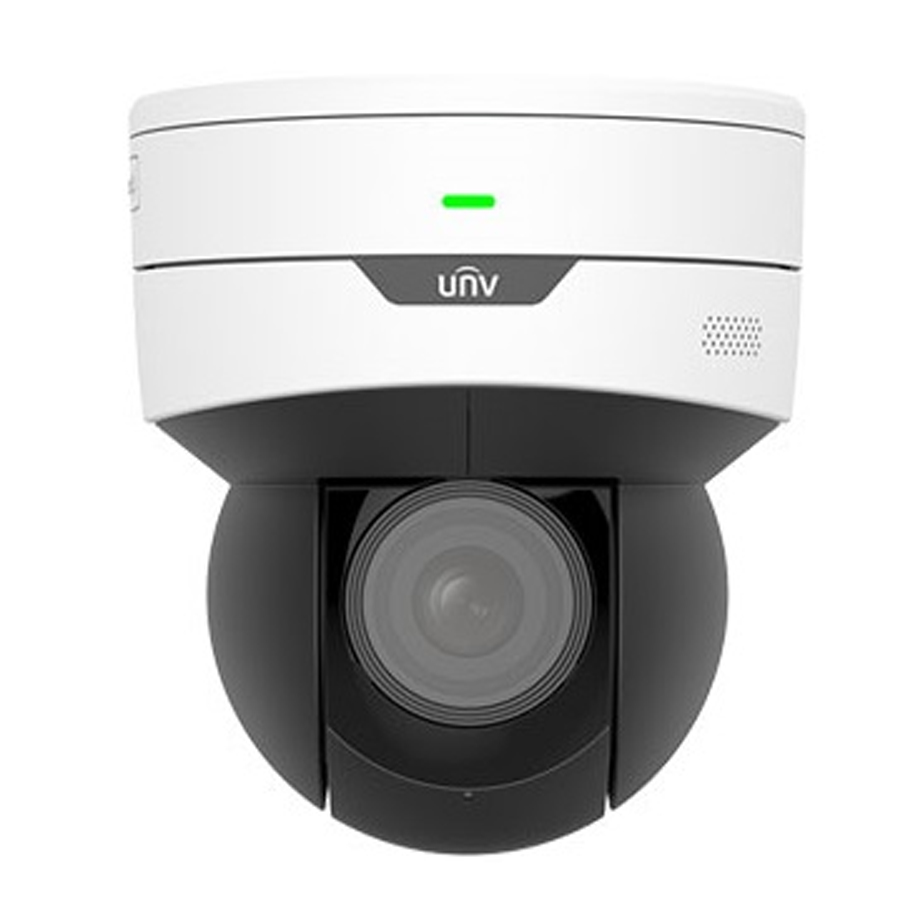

Camera IP Speed Dome hồng ngoại không dây 5.0 Megapixel UNV IPC6415SR-X5UPW
- Cảm biến hình ảnh: 1/2.7” progressive scan CMOS.
- Độ phân giải: 5M (2592*1944): Max. 30fps.
- Chuẩn nén hình ảnh: Ultra265/H.265/H.264/MJPEG.
- Hỗ trợ 3 luồng video.
- Ống kính zoom quang: 5x (2.7~13.5mm, lấy nét tự động AF và ống kính zoom động cơ).
- Góc nhìn: 105.3°~ 25.4°.
- Tầm quan sát hồng ngoại: 30 mét.
- Hỗ trợ các tính năng: Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, chống ngược sáng WDR 120dB, chống sương mù Defog.
- Hỗ trợ kết nối Wifi.
- Hỗ trợ khe cắm thẻ nhớ SD 256GB.
- Tích hợp micro và loa, hỗ trợ đàm thoại 2 chiều.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời theo sản phẩm.
- Nguồn cấp: DC12V (±25%) và PoE.
Thông số kỹ thuật
| Model | IPC6415SR-X5UPW |
| Camera | |
| Sensor | 1/2.7” progressive scan, 5.0 megapixel, CMOS |
| Min. Illumination | Colour: 0.002 lux (F1.2,AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000 s |
| S/N | >55dB |
| WDR | 120dB |
| Lens | |
| Lens | 2.7~13.5mm, AF automatic focusing and motorized zoom lens |
| Iris | F1.2 |
| Angle of view (H) | 27.9°~98.3° |
| Angle of view (V) | 20.6°~70.3° |
| Angle of view (O) | 30.0°~136.9° |
| Illuminator | |
| IR Range | Up to 30m |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 5M (2592*1944): Max. 30 fps Sub Stream: 720P (1280×720): Max. 30 fps Third Stream: D1 (720×576): Max. 30 fps |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 24 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G), API |
| Pan & Tilt | |
| Pan Range | 350° |
| Pan Speed | 0.1°/s ~ 60°/s Preset speed: 60°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 0.1° ~ 50°/s Preset speed: 50°/s |
| Number of Presets | 1024 |
| Home Position | Supported |
| Interface | |
| Alarm I/O | 1/1 |
| Serial Port | 1 RS485 |
| Built-in Speaker | Support |
| Built-in Mic | Support |
| WIFI | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 16W |
| Dimensions | Φ129mm×143mm |
| Weight | 0.75kg |
| Working Environment | -10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection | 4KV |
Xuất xứ: Trung Quốc.
