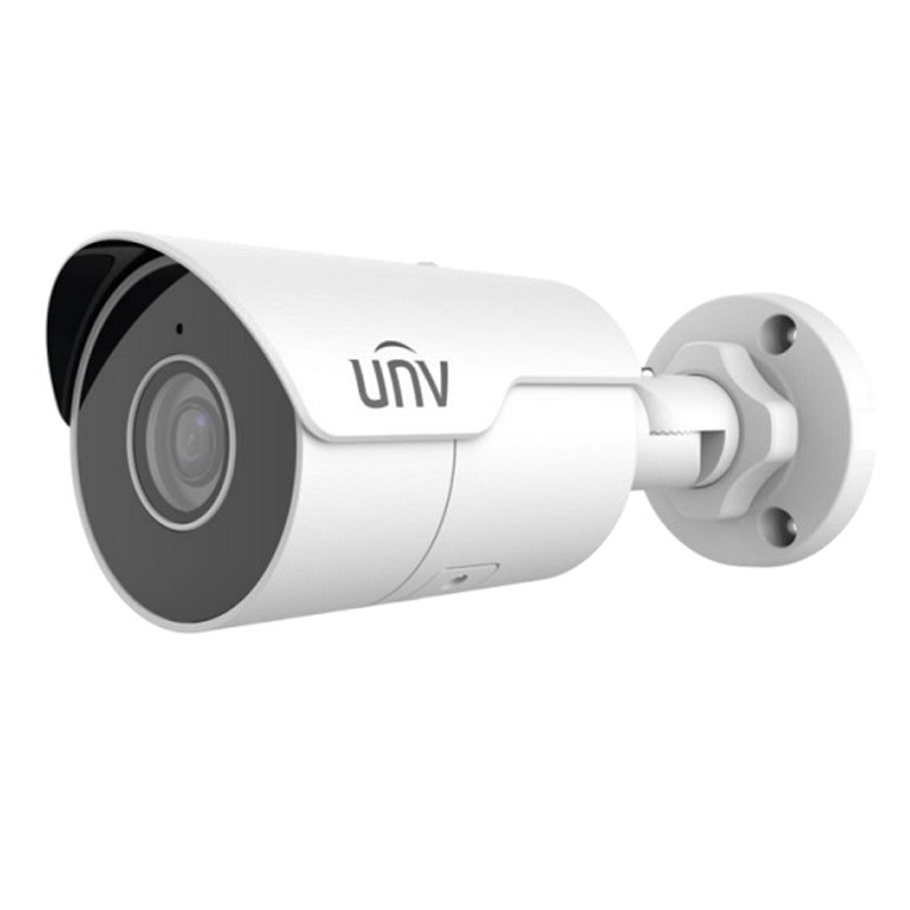

Camera IP hồng ngoại 5.0 Megapixel UNV IPC2125LE-ADF40KM-G
- Cảm biến hình ảnh: 1/2.7 inch progressive scan CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Tầm quan sát hồng ngoại: 50 mét.
- Hỗ trợ thẻ nhớ SD với dung lượng lên đến 256GB.
- Hỗ trợ các tính năng camera: 120dB WDR, HLC, BLC, Digital Defog, 2D/3D DNR.
- Hỗ trợ 9:16 Corridor Mode.
- Tích hợp Mic.
- Hỗ trợ cấp nguồn PoE.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/2.7 inch, 5.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0°~ 360° Tilt: 0°~90° Rotate: 0°~ 360° |
| S/N | >56dB |
| WDR | 120dB |
| Lens | |
| Lens | 4.0mm@F1.6 |
| Iris | Fixed |
| Field of View (H) | 91.2° |
| Field of View (V) | 47.9° |
| Field of View (D) | 95.9° |
| Illuminator | |
| IR Range | Up to 50m (164ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | |
| Built-in Mic | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions(L × W × H) | 190×73×71mm |
| Weight | 0.45kg |
| Material | Metal |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
Xuất xứ: Trung Quốc.
