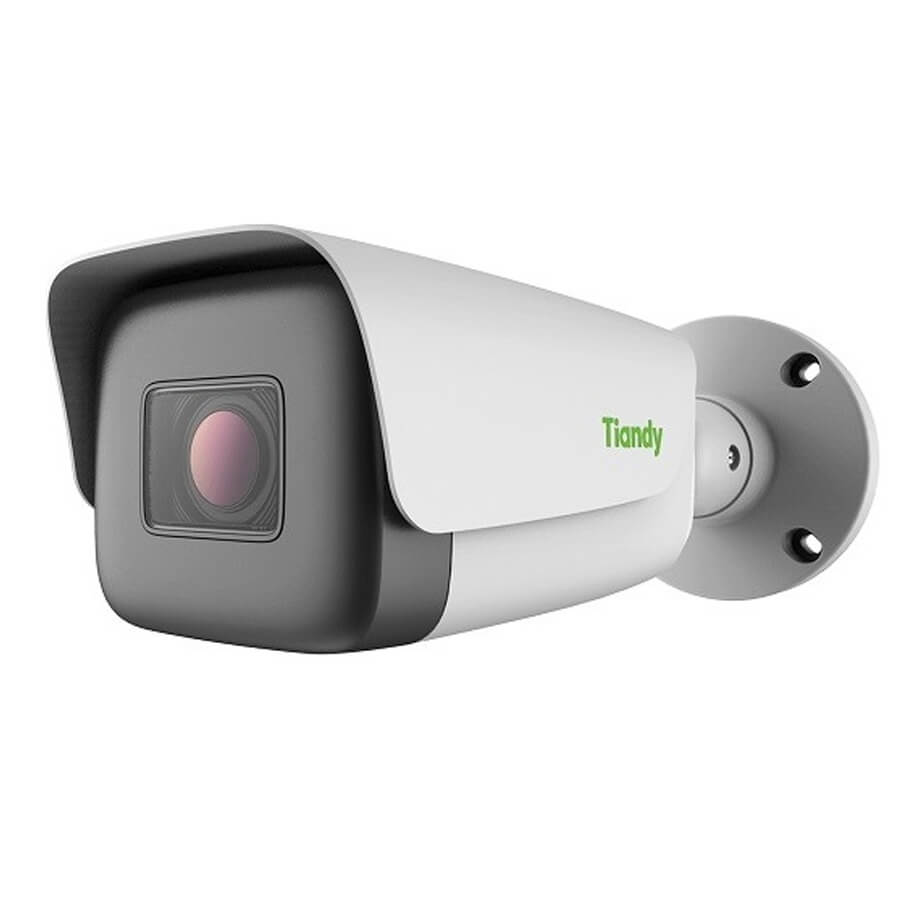

Camera IP hồng ngoại 5.0 Megapixel TIANDY TC-C35TP(I8/A/E/Y/M/H/2.7-13.5mm/V4.0)
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG.
- Ống kính: 2.7-13.5mm/F1.3~F2.2, motozied lens.
- Độ nhạy sáng: Color: 0.001Lux@ (F1.3, AGC ON), B/W: 0Lux with IR.
- Tầm quan sát hồng ngoại: 80m.
- Tích hợp micro trên camera.
- Hỗ trợ thẻ nhớ tối đa 512GB.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 2 cổng vào và 1 cổng ra alarm.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC, HLC.
- Chức năng chống ngược sáng thực WDR 120dB.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: DC 12V, PoE.
- Vỏ kim loại.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.001Lux@ (F1.3, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, roate 0~360° |
| Lens | |
| Lens Type | Motorized |
| Focus | 2.7-13.5mm |
| Lens Mount | Φ14 |
| Aperture | F1.3~F2.2, DC |
| FOV | Horizontal field of view: 101.6° ~ 34.4° |
| Illuminator | |
| IR LEDs | 4 |
| IR Range | Up to 80m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 2592x1944 |
| Main Stream | PAL: 25fps (2592×1944, 2592x1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720) |
| NTSC: 30fps (2592×1944, 2592x1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | PAL: 25fps(1920x1080, 1280x720, 704x576, 704x288, 640×360, 352x288) |
| NTSC: 30fps(1920x1080, 1280x720, 704x480, 704x240, 640×360, 352x240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 8 fixed regions of coding |
| OSD | 16×16, 32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.11x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port, RS 485 |
| Audio | 1/1, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| General | |
| Web Client Language | 15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±25%/PoE |
| Power Consumption | MAX: 8.5W (12V) MAX: 10W (PoE) |
| Protection | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Dimensions | 264.3 × 95 × 83.2 mm |
| Weight | 1.15kg |
