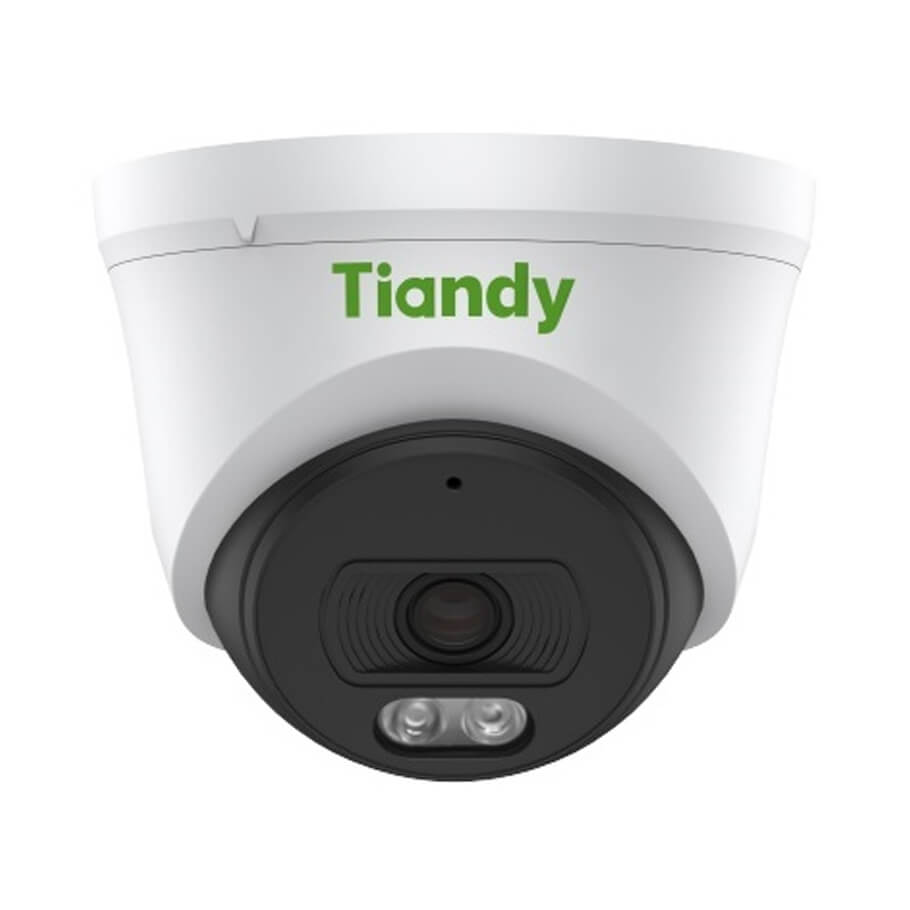

Camera IP Dome hồng ngoại 4.0 Megapixel TIANDY TC-C34XN (I3/E/Y/2.8mm/V5.0)
- Cảm biến hình ảnh: 1/3” CMOS.
- Độ phân giải: 4MP, 2560×1440@20fps.
- Chuẩn nén: S+265/H.265/H.264B/H.264M/H.264H.
- Ống kính: 2.8mm.
- Độ nhạy sáng: Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR.
- Tầm quan sát hồng ngoại: 30 mét.
- Camera tích hợp Micro.
- Nhiệt độ hoạt động: -30℃~60℃.
- Nguồn điện: PoE IEEE 802.3af, Max. 6W.
- Vật liệu: Nhựa + kim loại.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/3” CMOS |
| Min. Illumination | Color: 0.02Lux@(F1.6, AGC ON) B/W: 0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >40dB |
| Angle Adjustment | 0~340°(P); 0~75°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 92.8°(H); 52.2°(V); 106.5°(D) |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 4MP,2560×1440@20fps |
| Main Stream | PAL: 20fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC: 20fps(2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL: 20fps(704×576, 704×288, 352×288, 640×360) NTSC: 20fps(704×480, 704×240, 352×240, 640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/ Semi-Auto/ Manual/ Sunshine/ Nature Light/ Warmlight Lamp/ Daylight Lamp/ Filament Lamp/ Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
| Linkage Method | Trigger Capture; Alarm Output |
| Network | |
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| General | |
| Web Client Language | 12 languages |
| Operating Temperature | -30℃~60℃ (-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃ (-22℉~140℉) |
| Storage Humidity | 10%~95%RH (non-condensing) |
| Power Supply | PoE: IEEE 802.3af, Max. 6W |
| Protection | Surge4000V; ESD6000V |
| Boundary Dimensions | 117(L) x 117(W) x 96(H)mm |
| Gross Weight | 0.34kg |
