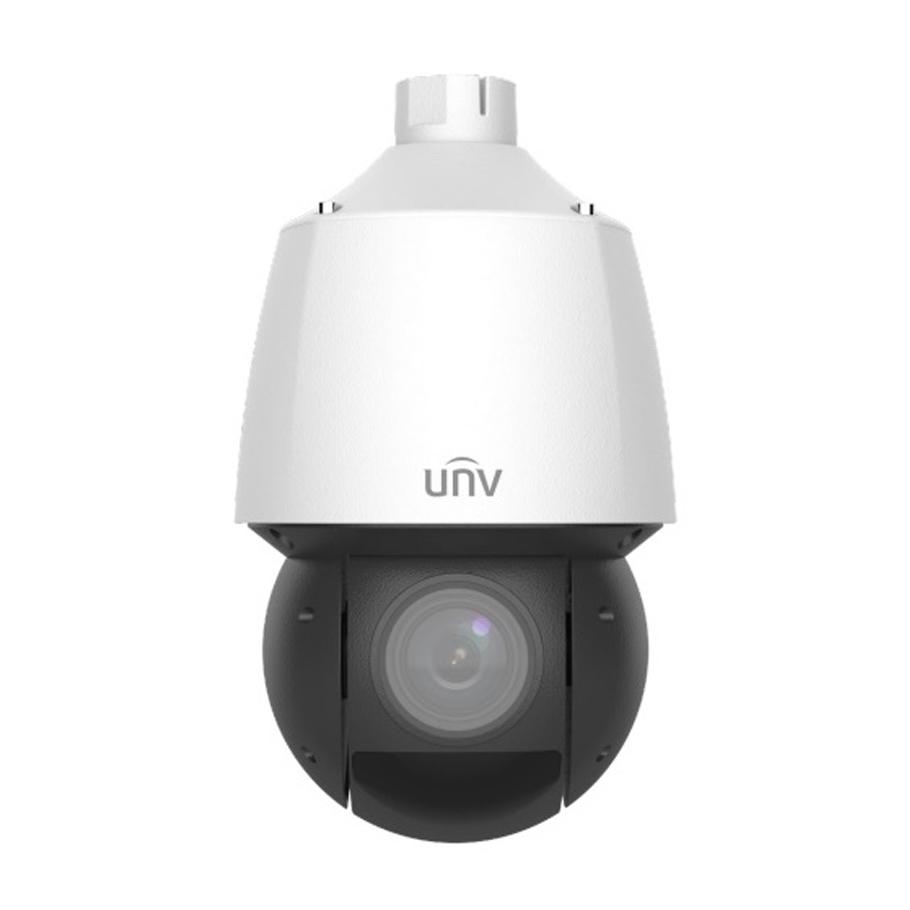

Camera IP Speed Dome hồng ngoại 4.0 Megapixel UNV IPC6424SR-X25-VF
- Cảm biến hình ảnh: 1/2.8” progressive scan CMOS.
- Độ phân giải: 4MP(2688*1520), Max 30fps.
- Chuẩn nén hình ảnh: Ultra 265/H.265/H.264/MJPEG.
- Hỗ trợ 3 luồng video.
- Ống kính zoom quang: 25x (4.8 ~ 120mm).
- Góc mở từ 52.20°~2.74°.
- Tầm quan sát hồng ngoại: 100 mét.
- Hỗ trợ dây ngoài micro và audio cho phép đàm thoại 2 chiều.
- Công nghệ LightHunter đảm bảo chất lượng hình ảnh cực cao trong môi trường thiếu ánh sáng.
- Chức năng chống ngược sáng WDR 120db.
- Hỗ trợ công nghệ chống sương mù Defog.
- Hỗ trợ khe cắm thẻ SD lên tới 256GB.
- Hỗ trợ cổng Audio 1 input/1 output, Alarm 2 input/1 output.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời theo sản phẩm.
- Nguồn điện: DC12V (±25%, 3A), PoE+ (IEEE 802.3at).
Thông số kỹ thuật
| Model | IPC6424SR-X25-VF |
| Camera | |
| Sensor | 1/2.8”, 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000 s |
| S/N | >56dB |
| WDR | 120dB |
| Lens | |
| Lens | 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens |
| Optical Zoom | 25 |
| Digital Zoom | 16 |
| Iris | Auto; F1.5 ~ F3.8 |
| Angle of view (H) | 52.20°~2.74° |
| Angle of view (V) | 30.81°~1.54° |
| Angle of view (O) | 64.20°~3.23° |
| Illuminator | |
| IR Range | UP to 100m |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
| Video stream | Triple streams |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| ROI | Support |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/ Flip Vertical/ Flip Horizontal/ 180°/ 90°Clockwise/ 90°Anti-clockwise |
| Defog | Digital Defog |
| HLC | Support |
| BLC | Support |
| Intelligent | |
| Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting | Support people flow counting and crowd density monitoring |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-way audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s Preset speed: 240°/s |
| Tilt Range | -15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 120°/s Preset speed: 200°/s |
| Number of Presets | 1024 |
| Preset Patro | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Supported |
| Home Position | Supported |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC |
| General | |
| Power | DC12V (±25%, 3A), PoE+ (IEEE 802.3at) Power consumption: MAX 21W |
| Dimensions | Ø166 x 295mm |
| Weight | 3.05kg |
| Working Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
| Protection | IP67, IK10 |
| Surge protection | 6KV |
| Reset Button | Support |
Xuất xứ: Trung Quốc.
