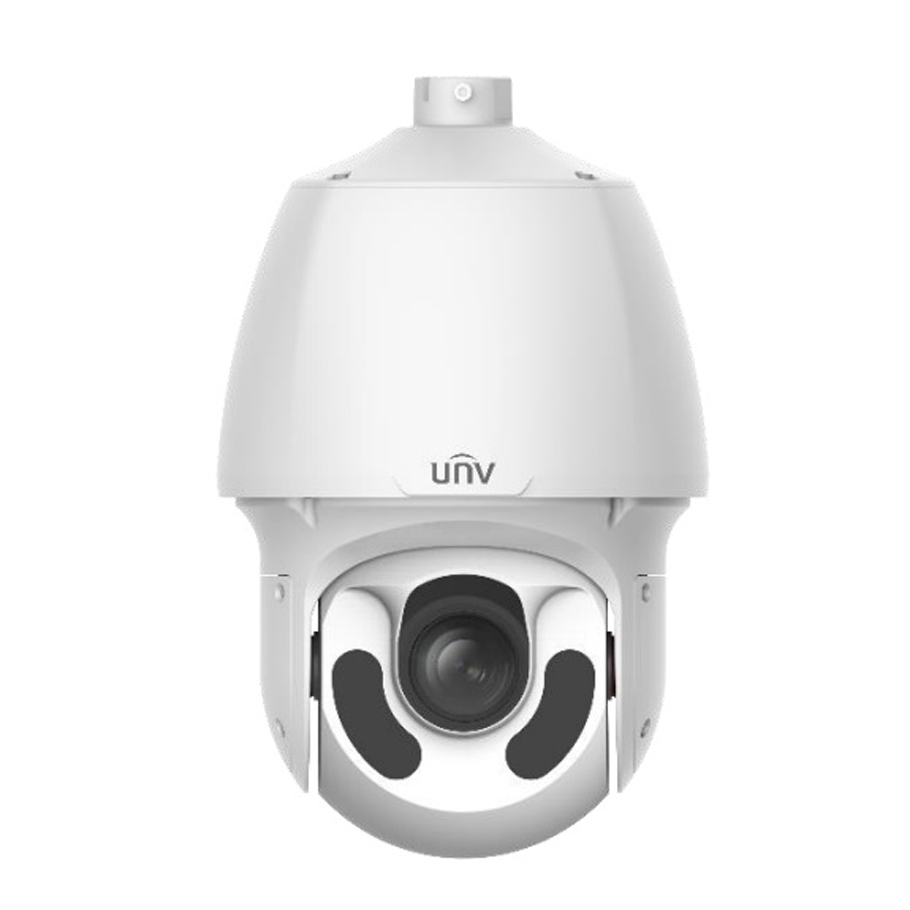

Camera IP Speed Dome hồng ngoại 2.0 Megapixel UNV IPC6622SR-X33-VF
- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Ống kính quang học 33x.
- Tầm quan sát hồng ngoại: 150 mét.
- Hỗ trợ tính năng thông minh:
+ Ngăn chặn xâm nhập thông minh;
+ Hỗ trợ lọc cảnh báo sai: Phát hiện đường chéo, phát hiện xâm nhập, phát hiện khu vực vào, phát hiện khu vực rời khỏi;
+ Đếm người, hỗ trợ đếm lưu lượng người và giám sát mật độ đám đông.
- Hỗ trợ công nghệ LightHunter mang đến chất lượng hình ảnh cực cao trong môi trường thiếu sáng.
- Hỗ trợ các tính năng camera: 120dB WDR, HLC, BLC, Digital Defog, 2D/3D DNR.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 2 cổng vào và 1 cổng ra báo động.
- Nguồn điện: AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at).
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/2.8 inch, 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Lens type | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom | 16 |
| Optical Zoom | 33 |
| Iris | Autol; F1.5 ~ F4.0 |
| Field of View (H) | 56.2° ~ 2.6° |
| Field of View (V) | 33.5° ~ 1.4° |
| Field of View (D) | 69.1° ~ 3.1° |
| Illuminator | |
| IR Range | Up to 150m (492 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting | Support people flow counting and crowd density monitoring |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZLive EZView |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s Preset speed: 300°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 200°/s Preset speed: 240°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC |
| Certification | |
| EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) Power consumption: Max 41W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions (Ø x H) | Ø227 x 384.8mm |
| Weight | 5.39kg |
| Working Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
Xuất xứ: Trung Quốc.
