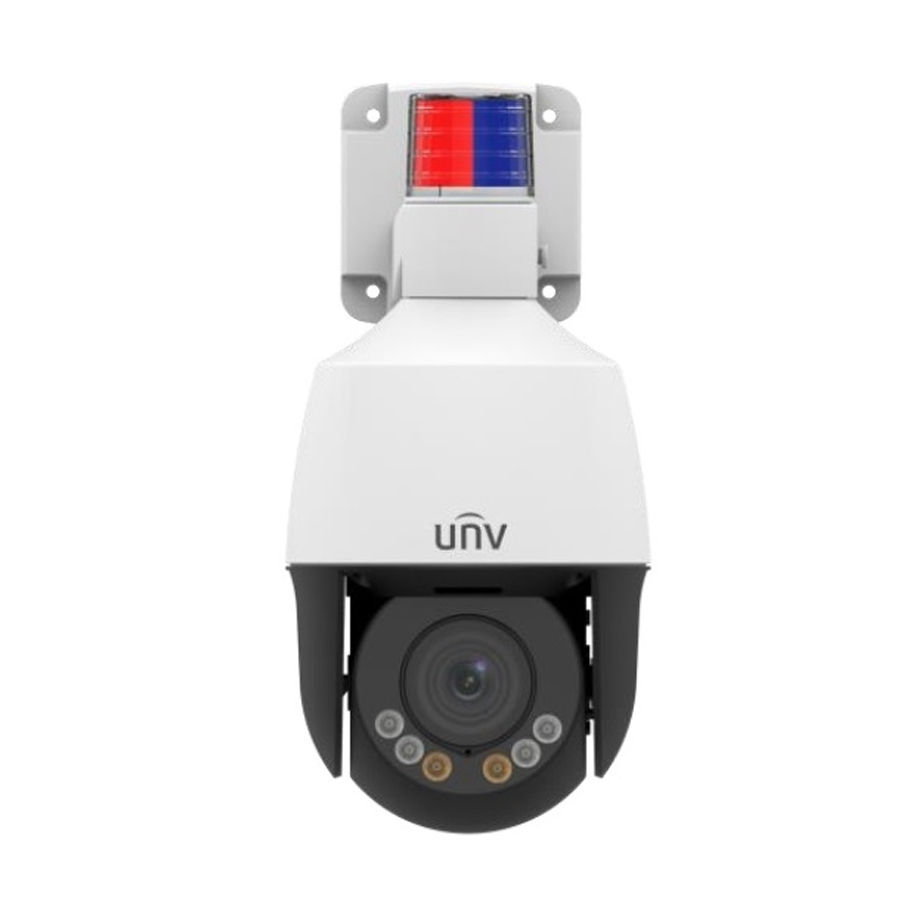

Camera IP Speed Dome hồng ngoại 2.0 Megapixel UNV IPC6312LFW-AX4C-VG
- Cảm biến hình ảnh: 1/2.7 inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng: Colour: 0.002Lux (F1.6, AGC ON); 0Lux with IR on.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Ống kính: 2.8~12mm, lấy nét tự động AF và ống kính zoom động cơ.
- Góc nhìn: 105.2° ~ 29.32° (H), 52.6° ~ 16.38° (V), 108.7° ~ 33.3° (D).
- Tầm quan sát hồng ngoại: 50 mét.
- Tầm quan sát Warm Light: 10 mét.
- Ống kính quang học 4x (2.8~12mm).
- Hỗ trợ thẻ SD lên tới 256GB.
- Camera hỗ trợ tính năng thông minh: Ngăn chặn xâm nhập thông minh/ đếm người/ mật độ đám đông.
- Hỗ trợ công nghệ LightHunter mang đến chất lượng hình ảnh cực cao trong môi trường thiếu sáng.
- Chống ngược sáng 120dB WDR.
- Tích hợp Mic và loa, đàm thoại hai chiều.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: DC12V or PoE (IEEE 802.3af).
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/2.7 inch progressive scan, 2.0 megapixel, CMOS |
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Lens type | 2.8~12mm, AF automatic focusing and motorized zoom lens |
| Optical Zoom | 4 |
| Iris | Fixed; F1.6 |
| Field of View (H) | 105.2° ~ 29.32° |
| Field of View (V) | 52.6° ~ 16.38° |
| Field of View (D) | 108.7° ~ 33.3° |
| Illuminator | |
| IR Range | Up to 50m (164ft) |
| Warm Light Range | Up to 10m (33ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting | Support people flow counting and crowd density monitoring |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U,G.711A |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZLive EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt | |
| Pan Range | 0° ~ 345° |
| Pan Speed | 0.1°/s ~ 50°/s Preset speed: 50°/s |
| Tilt Range | -10° ~ 110° |
| Tilt Speed | 0.1°/s ~ 40°/s Preset speed: 40°/s |
| Number of Presets | 256 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120s~1800s |
| Home Position | Support |
| Interface | |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Alarm Light | Support |
| Certification | |
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC12V(±25%), PoE (IEEE 802.3af) Power consumption: MAX 15W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ133mm x 269mm |
| Weight | 0.87 kg |
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Storage Environment | -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection | 2KV |
| Reset Button | Support |
Xuất xứ: Trung Quốc.
