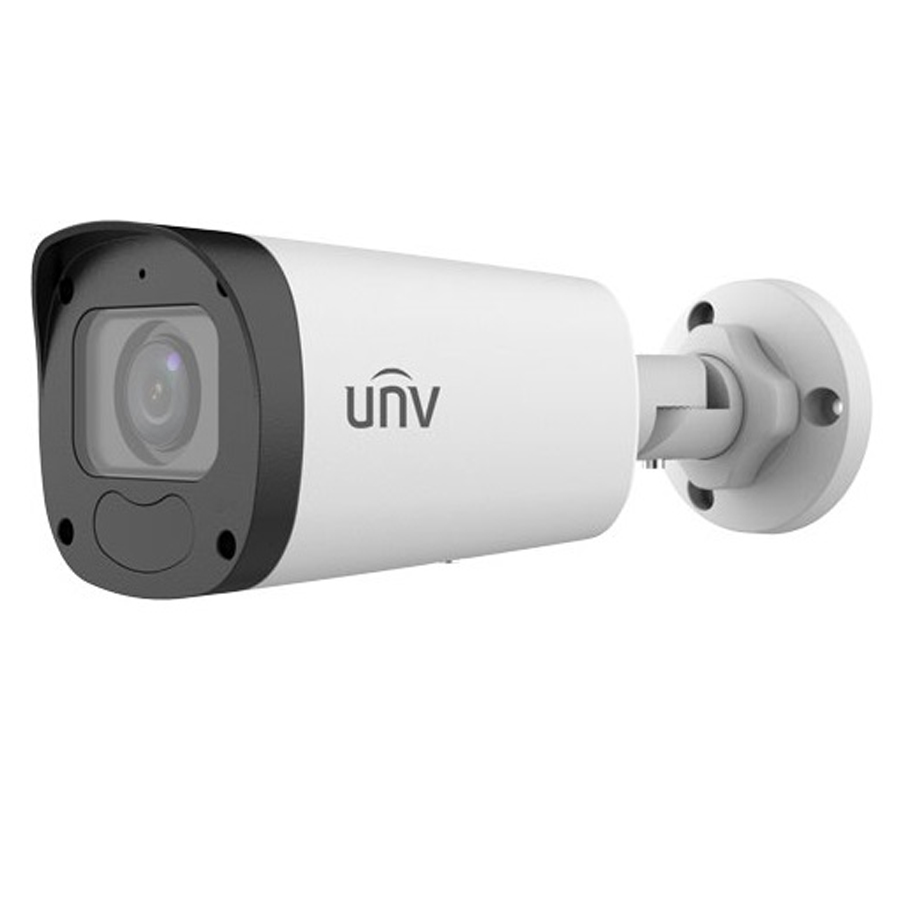

Camera IP hồng ngoại 2.0 Megapixel UNV IPC2322LB-ADZK-G
- Cảm biến hình ảnh: 1/2.7 inch progressive scan CMOS.
- Độ phân giải: 1920x1080:30fps.
- Chuẩn nén hình ảnh: Ultra 265/H.264/MJPEG.
- Hỗ trợ 2 luồng video.
- Ống kính (điều chỉnh qua phần mềm): 2.8~12 mm.
- Góc quan sát: 104.73°~ 31.21°.
- Tầm quan sát hồng ngoại: 50 mét.
- Độ nhạy sáng: 0,005 Lux (F1.6, AGC ON).
- Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, chống ngược sáng WDR 120dB.
- Hỗ trợ công nghệ chống sương mù Defog.
- Tích hợp sẵn Mic.
- Hỗ trợ khe cắm thẻ nhớ 128GB.
- Chuẩn Onvif quốc tế. Hỗ trợ tên miền miễn phí trọn đời.
- Nguồn cấp: DC12V (±25%) và PoE.
Thông số kỹ thuật
| Model | IPC2322LB-ADZK-G |
| Camera | |
| Sensor | 1/2.7', 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000 s |
| S/N | >52dB |
| WDR | 120dB |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| Lens | |
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| Lens Mount | Φ14 |
| Angle of view (H) | 108.05°~ 32.59° |
| Angle of View (V) | 56.81°~ 18.36° |
| Angle of View (O) | 111.91°~36.53° |
| Illuminator | |
| IR Range | Up to 50m |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | 206 × 74 × 74mm |
| Weight | 0.54kg |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Supported |
| Ingress Protection | IP67 |
Xuất xứ: Trung Quốc.
