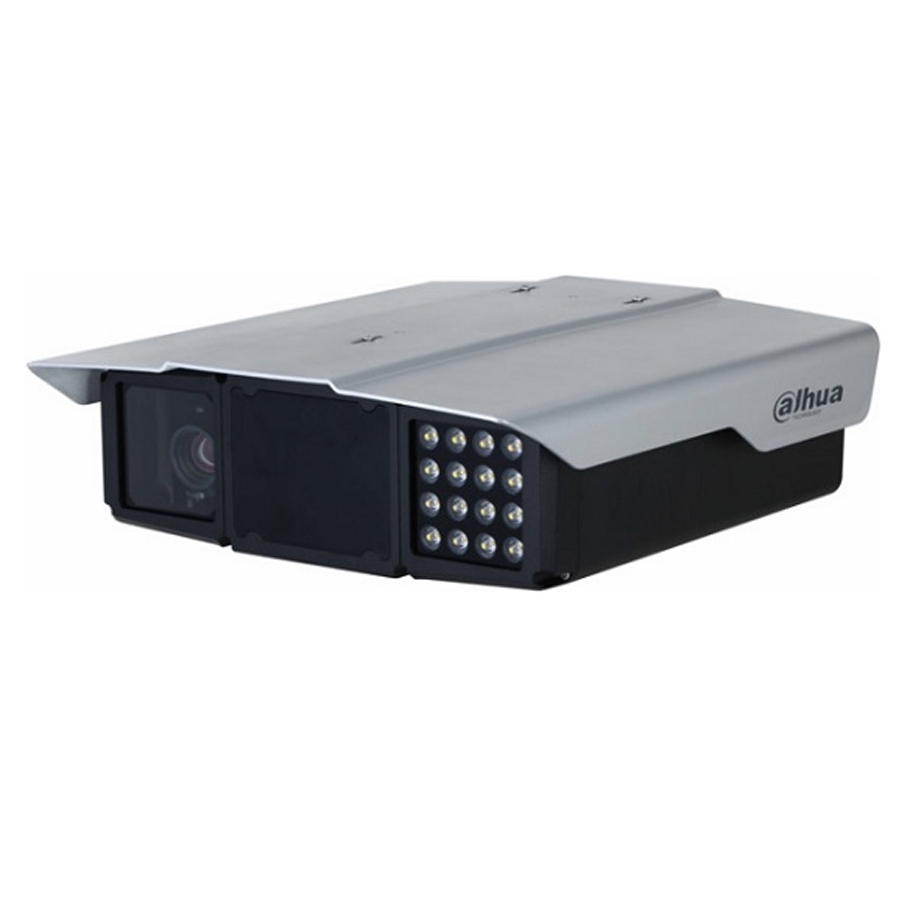

Camera IP giao thông All-in-one 9.0 Megapixel DAHUA DHI-ITC952-SU2F-PQE-C1R1-LZF1640
- Cảm biến hình ảnh: Camera biến GS-CMOS kích thước 1 inch.
- Độ phân giải: 9.0 megapixel.
- Tốc độ khung hình cao 50fps@4096x2160.
- Giám sát 3 làn đường cùng lúc.
- Ống kính motorized 16-40mm.
- Chuẩn nén hình ảnh H.265, chống ngược sáng 90dB.
- Tích hợp camera, radar và đèn trợ sáng trong 1 body camera duy nhất giúp tối giản hệ thống và nâng cao hiệu suất và độ chính xác khi làm việc của thiết bị.
- Tích hợp đèn chiếu sáng 16 bóng với khoản cách tối đa 50 mét và có khả năng chiếu trên 3 làn cùng lúc.
- Three shutter mode cung cấp hình ảnh nhạy sáng tốt và phù hợp nhiều điều khiện ánh sáng và ánh sáng đèn xe khác nhau.
- Hỗ trợ 2 chế độ (không hoạt động cùng lúc): ANPR MODE và E-POLICE MODE.
- Chụp ảnh biển số (ANPR), phát hiện và ghi nhận lại thông tin phương tiện như: Loại xe (10 loại), màu sắc xe (12), thương hiệu (71 logo).
- Chụp ảnh vi phạm giao thông (ANPR Mode): Đi ngược chiều, vượt quá tốc độ, đi chậm, đè vạch liền, chuyển làn sai luật, không đeo đai an toàn, gọi điện thoại khi đang lái xe, hút thuốc khi đang lái xe.
- Chụp ảnh vi phạm giao thông (E-Police Mode): Vượt đèn đỏ, đi ngược chiều, đè vạch liền, sai làn, quẹo trái sai luật, quẹo phải sai luật, quay đầu sai luật, và đè vạch dừng.
- Hỗ trợ các tính năng khác: Video metadata, Face Detection, Traffic Flow detection...
- Tích hợp Radar bắn tốc độ 64 đối tượng cùng lúc: Tốc độ bắn từ 5-300 km/h, sai số ±2 km/h.
- Hỗ trợ GPS, OSD Overlay, ONVIF, SDK & API.
- Cổng kết nối: 1 RJ45 1000Mbps, 1 RS232, 1 RS485, 1 alarm out.
- Điện áp: DC36V.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1 inch GS-CMOS |
| Shutter Mode | Single shutter; Double shutter; Three shutters |
| Electronic Shutter Speed | Auto/Manual 1/50 s–1/100,000 s |
| Noise Reduction | 3D NR |
| S/N | 48 dB |
| WDR | 120 dB |
| Minimum intensity | 0.001 lux |
| Day/Night | Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the common IR cut-off filter at night |
| Illuminator | |
| Illuminator Number | 16 |
| Illumination Distance | 23 m–50 m (75.46 ft–164.04 ft) (adjustable brightness) |
| Covered Lane | 3 lanes |
| Radar | |
| Central Frequency | 24.05–24.25 GHz |
| Measurement Accuracy | ±2 km/h |
| Speed Measurement Range | 5-300 km/h |
| Tracking Target | Up to 64 |
| Lens | |
| Lens Type | Motorized vari-focal |
| Focal Length | 16 mm–40 mm |
| Max. Aperture | F1.5 |
| Aperture Type | P iris |
| Field of View | Horizontal: 20.8°–46.4° Vertical: 11.1°–25.4° Diagonal: 23.4°–51.7° |
| Function | |
| Trigger Mode | Video trigger/Radar trigger |
| OSD Overlay | Time, location, lane (number/direction), plate (number/ color), and more. |
| Alarm Event | Storage full, storage error, external alarm, no storage card, license plate blocklist, abnormal device attitude, illegal access, network disconnection, and IP conflict |
| Automatic Network Replenishment (ANR) | Platform, FTP (TF card is required) |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle; motorcycle |
| Face Detection | Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images |
| ANPR | Adopts developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: SUV, Large bus, sedan, light truck, pickup, heavy truck, medium truck, van, medium bus, MPV Vehicle tail: SUV, large bus, sedan, light truck, pickup, heavy truck, medium truck, van |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, orange, purple, brown, and silver gray |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99%; LPR accuracy > 98% |
| Vehicle Logo | Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
| Motor Vehicle Violation Snapshot | ANPR mode: Wrong-way driving, overspeed, driving slow, crossing the solid white line, crossing the solid yellow line, illegal lane change, not wearing seatbelt, calling while driving, smoking while driving E-Police mode: Running a red light, wrong-way driving, crossing the solid white line, crossing the solid yellow line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by side-mounted cameras), and crossing the stop line |
| Motorcycle Vehicle Violation Capture | Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
| Traffic Flow Detection | Generates statistics on vehicle flow, queue length, average speed, lane occupancy, and more |
| Traffic Event | Detects parking violations of motor vehicles, wrong-way driving, and traffic congestion |
| Video | |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Video Resolution | 4096 × 2160; QFHD (3840 × 2160); 1080p (1920 × 1080); UXGA (1600 × 1200); 720p (1280 × 720) |
| Video Frame Rate | 50 Hz: Maximum 50 fps; default main stream (4096 × 2160@25 fps), sub stream (1600 × 1200@25 fps) 60 Hz: Maximum 30 fps; default main stream (4096 × 2824@15 fps), sub stream (1600 × 1200@15 fps) |
| Video Bit Rate | H.264: 32 kbps–32767 kbps H.265: 32 kbps–32767 kbps MJPEG: 512 kbps–32767 kbps |
| Bit Rate Control | CBR; VBR |
| White Balance | Auto/night/custom color temperature |
| Edge Enhancement | Yes |
| HLC | Yes |
| BLC | Yes |
| Bad Pixel Correction | Yes |
| Gain Scope | 0–100 |
| Image | |
| Composite Image | Supports combining up to 4 images into a composite image |
| Image Resolution | 4096 (H) × 2160 (V) (OSD black background is not calculated in the pixels) |
| Image Encoding Format | JPEG |
| Image Tampering Prevention | Watermark and verification are available for videos and images |
| Network | |
| Network Port | 1 × RJ-45 Ethernet port, 10/100/1000 M network transmission |
| SDK and API | Yes |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Protocol | IPv4; IPv6; HTTP; TCP; IP; UDP; NTP; DHCP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) |
| Browser | Microsoft Edge IE: IE9–IE11 Chrome: Chrome 41 and earlier Firefox: Firefox 49 and earlier For Win 10 users, run the browser as administrator |
| Positioning | GPS |
| Time Synchronization | NTP; GPS |
| Port | |
| Frequency Source Sync | 1, supports synchronizing the camera with the mains electricity |
| Peripheral Light | 5, optocoupler signal output (can be configured as flashing light or LED strobe sync output port, frequency adjustable) |
| RS-485 | 1, connects to devices such as signal detector, strobe, and more |
| Alarm Output | 1 (can be configured as an alarm output port) |
| Alarm In | 1 |
| General | |
| Power Supply | 100–240 VAC, 50 Hz/60 Hz |
| Power Consumption | ≤50 W |
| Operating Temperature | −40 °C to +65 °C (−40 °F to +149 °F) |
| Storage Temperature | −40 °C to +70 °C (−40 °F to +154 °F) |
| Operating Humidity | 10%-90% (RH) |
| Storage Humidity | 10%-90% (RH) |
| Product Dimensions (L × W × H) | 435.4 mm × 416.0 mm × 173.8 mm |
| Weight | 9.2 kg |
| Installation | Center mount; Side mount |
- Sản xuất tại Trung Quốc.
