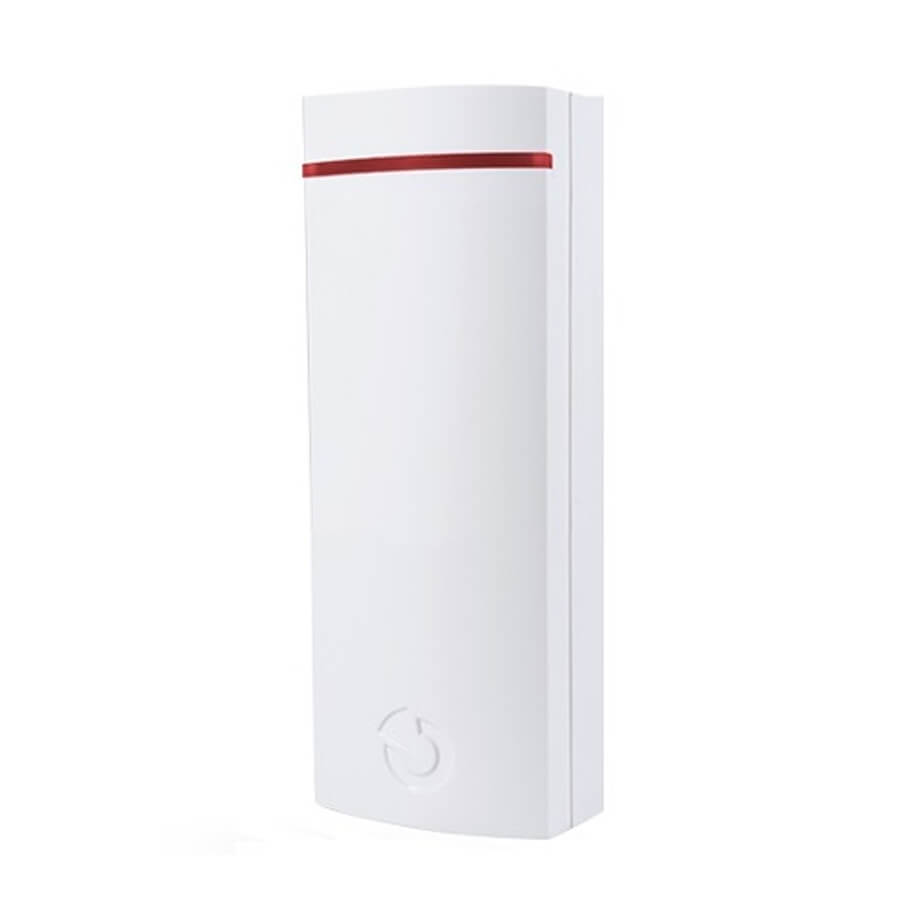

Cảm biến từ có dây với hai ngõ vào (kết hợp bên thứ 3) JABLOTRON JA-112M

Trang Chủ >> Báo cháy-Báo trộm >> Báo động JABLOTRON >> Cảm biến từ có dây với hai ngõ vào (kết hợp bên thứ 3) JABLOTRON JA-112M
Mã số:13320086
Cảm biến từ có dây với hai ngõ vào (kết hợp bên thứ 3) JABLOTRON JA-112M

Cảm biến từ có dây với hai ngõ vào (kết hợp bên thứ 3) JABLOTRON JA-112M

-Cảm biến từ có dây với hai ngõ vào (kết hợp bên thứ 3).

-Thiết bị thuộc hệ thống BUS cho báo động JABLOTRON 100+. Module BUS được sử dụng để kết nối một loạt các công tắc từ để phát hiện khi cửa ra vào và cửa sổ được mở.

-Thiết bị có hai ngõ vào độc lập với tùy chọn thiết lập đầy đủ các thuộc tính của chúng.

-The product is a bus system device for the JABLOTRON 100+.

-A bus module used to connect a wide range of magnetic switches to detect when doors and windows are opened.

-It has two independent inputs with the option of fully setting their properties.

-Up to 100 m of wiring can be connected to each input.

-Inputs can be connected without balancing, they can be balanced singly or doubly and can be connected to a roller blind switch function. It also allows the inverting of the input or the minimum activation time to trigger the alarm (0.1 s to 300 s) to be set.

-The detector communicates with the control panel bus and is powered by it. The detector is addressable and occupies two positions in the security system.

-Nguồn điện: 12 V (9 ...15 V).

-Chiều dài dây cáp kết nối ngõ vào: 100 mét.

-Kích thước: 110 x 44 x 26 mm.

Đặc tính kỹ thuật

Power supply Via the control panel bus 12 V (9 ...15 V)
Backup (idle) mode current consumption 5 mA
Current consumption for cable selection 10 mA
Maximum cable length from the input to the detector 100 m
Dimensions 110 x 44 x 26 mm
Classification EN 50131-1 ed. 2+A1+A2, EN 50131-3
Environment according to EN 50131-1 II. indoor, general
Operation temperature range -10 °C to +40 °C
It also meets the requirements of EN 50130-4 ed. 2+A2, EN 55032, EN 50581

-Xuất xứ tại Czech Rep, EU.

-Bảo hành: 12 tháng.
