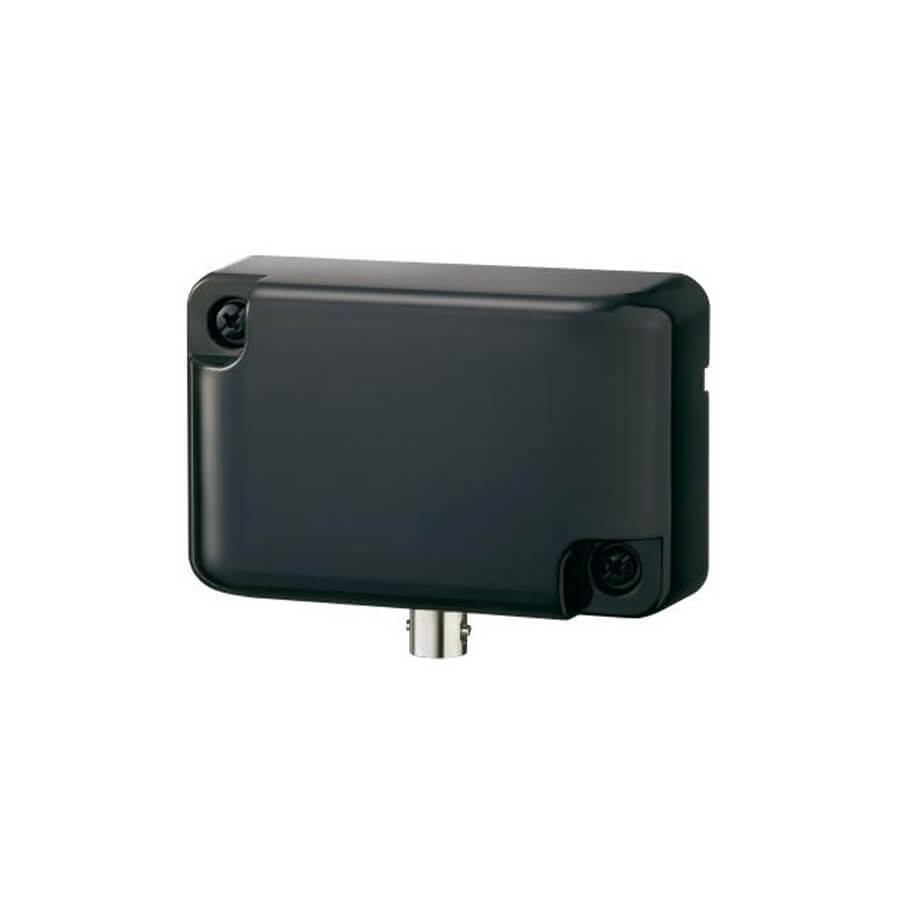

Bộ thu hồng ngoại không dây TOA IR-520R
The IR-520R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or a microphone stand.
Đặc tính kỹ thuật
| Model | IR-520R |
| Power Source | 24 V DC (supplied from the IR-702T) |
| Current Consumption | Max. 30 mA |
| Wavelength | 870 nm |
| Carrier Frequency | Channel A: 3.100 MHz Channel B: 3.350 MHz |
| Communication Area | Approx. 15 m in a space without any obstacles |
| Connection Terminal | 75 Ω, BNC jack |
| Finish | Filter section: Polycarbonate, optical cut filter |
| Dimensions | 84.5 (W) × 63.5 (H) × 32 (D) mm |
| Weight | 100g |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
