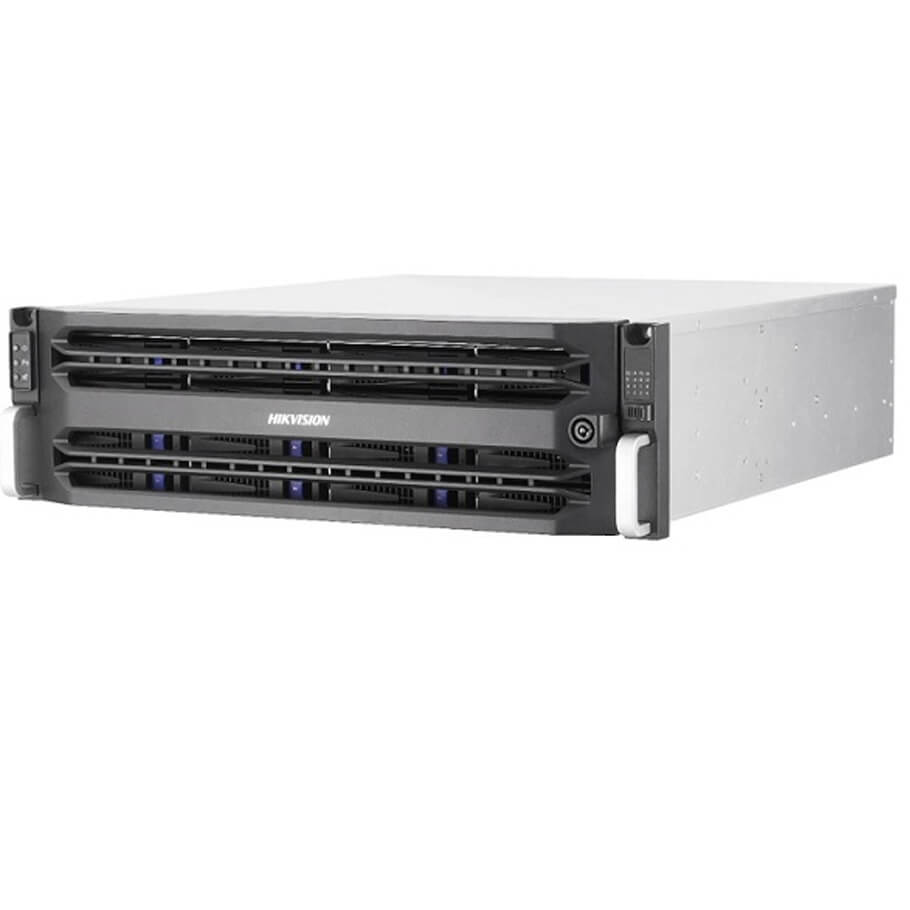

Bộ NAS chuyên dụng ghi hình HIKVISION DS-AT1000S/160
- 8 x 20 TB enterprise HDD.
- IoT fully sealed helium HDD technology.
- Surveillance-specialized direct storage (Direct Streaming mode).
- Highly cost efficient, safe and reliable.
- Energy saving and space saving.
- Easy operation and maintenance.
Đặc tính kỹ thuật
| Performance | |
| Video (2 Mbps stream + rebuilding) | 180-ch |
| Controller | |
| Processor | 64-bit multi-core processor |
| Cache | 12 GB, extendable to 32 GB |
| Storage | |
| HDD slot | 16 (the device is packaged with 8 HDDs) |
| Interface | SATA |
| Capacity | Up to 20 TB per HDD |
| RAID | iRAID, RAID5, RAID6 |
| Disk | Disk detection pre-alarm and repair |
| Logical volume | Recording volume management |
| Recording | |
| Recording type | Continuous recording, manual recording, and alarm recording |
| Video protection | Video loss alarm |
| Search and download | Log in storage system to search, play, and download videos. Support searching videos by time, and event type |
| Maintenance and Management | |
| Management method | GUI based on web, serial port CLI, platform |
| Alarm method | Audio, indicator, GUI |
| Network | |
| Protocol | RTSP, ONVIF, HKSDK |
| External interface | |
| Data network interface | 3, 1000 Mbps Ethernet interface |
| Management network interface | 1, 1000 Mbps Ethernet interface |
| SAS interface | 2 |
| COM interface | 1, RS-232 |
| USB interface | 2, USB 3.0 |
| HDMI interface | 2 |
| VGA interface | Supported (VGA and RS-232 interface cannot be used at the same time) |
| General | |
| Power supply | 100 to 127 VAC or 200 to 160 VAC/47 to 63Hz, redundant power supply |
| Power consumption (with HDDs) | ≤ 255 W |
| Environment temperature | Working: 5 °C to 40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F) |
| Environment humidity | Working: 20% to 80% RH (non-condensing/frozen) Storing: 5% to 90% RH (non-condensing/frozen) |
| Dimensions (W × D × H) | 440 ×132 × 495 mm |
| Weight (without HDDs) | ≤ 20 kg |
- Bảo hành: 24 tháng.
