Bộ micro không dây cài áo TOA WS-5325U

Bộ micro không dây cài áo TOA WS-5325U

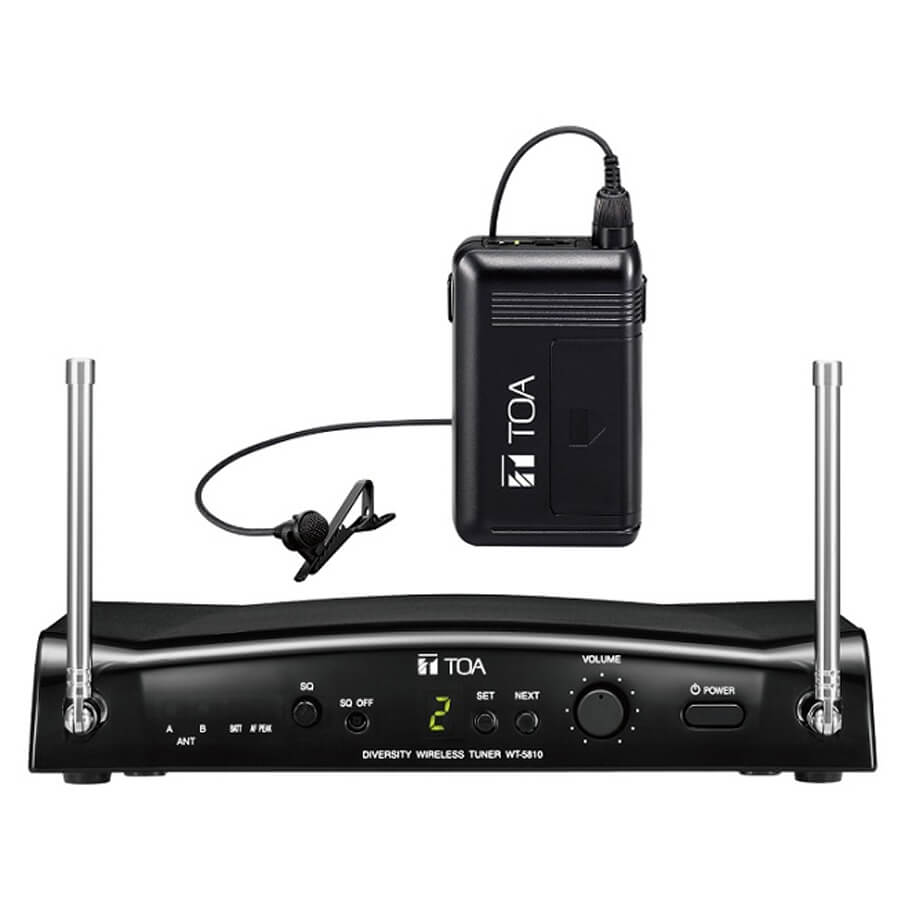

- The WS-5325U includes a wireless transmitter WM-5325, a lavalier microphone YP-M5300, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The YP-M5300 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Specifications

Model WS-5325U
Product Composition Wireless transmitter WM-5325 …1, Lavalier microphone YP-M5300 …1, Diversity wireless tuner WT-5810 …1
Frequency Range 576 - 865 MHz, UHF
Tone Frequency 32.768 kHz
Operating Temperature -10ºC to +50ºC
Wireless transmitter
Modulation Frequency modulation
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Oscillator PLL synthesized
Maximum Input Level -14 dB to -29 dB (Audio level control: Min. to Max.)
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Finish Resin, coating
Dimensions 62 x 102.5 x 23 mm
Weight 90g
Lavalier microphone
Microphone Element Electret condenser type: Unidirectional
Sensitivity -63 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Cord Length 1.3 m (4.27 ft)
Finish Dark black
Diversity wireless tuner
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 VDC)
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Antenna Whip antenna
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Frequency Response 100 Hz - 15 kHz, ±3 dB
Finish Resin, black

- Sản xuất tại Đài Loan.

- Bảo hành: 12 tháng.



Giá: 9.867.000 VND (Đã bao gồm VAT)
