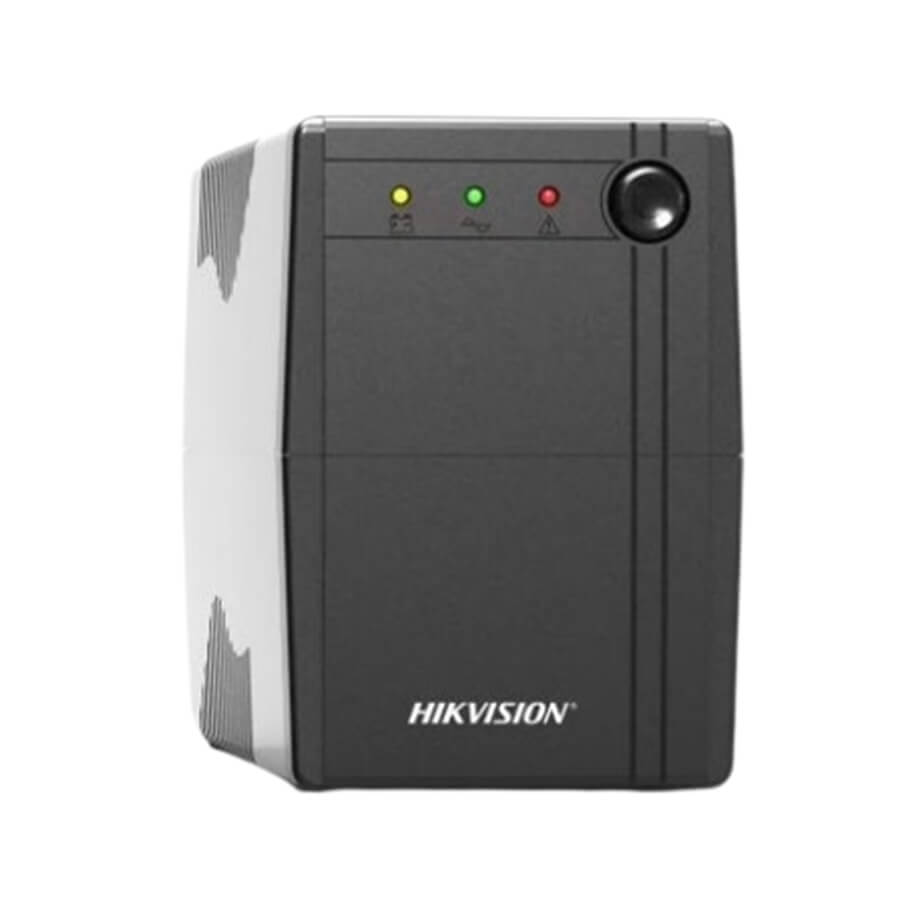

Bộ lưu điện UPS HIKVISION DS-UPS1000
- Dải điện áp đầu vào (Chế độ AC): 85 ~ 150 VAC (± 5 VAC).
- Dải điện áp đầu ra (Chế độ AC): 102 ~ 132 VAC.
- Dải điện áp đầu ra (Chế độ Pin): 110 ~ 125 VAC (không tải).
- Thời gian chuyển đổi: DC sang AC ≤ 10 ms; AC sang DC ≤ 10 ms.
- Ắc quy: 12V/9Ah × 1.
Đặc tính kỹ thuật
| Protection Method | Overload, discharge, and overcharge protection |
| Operating Temperature and Humidity | 0 °C to 40 °C (32 °F to 104 °F). Humidity 30% to 90% (non-condensing) |
| Weight | Approx. 5.4 kg (11.9 lb) |
| Dimension | 274 mm × 95 mm × 139 mm |
| LED Indicator | Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow |
| Alarm | Charging Mode (DC mode): Sounding every 10 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding |
| Storage Conditions | -10 °C to 50 °C (14 °F to 122 °F). Humidity 20% to 95% (non-condensing) |
| Capacity | 1000 VA / 600 W |
| Input Voltage Range (AC mode) | 85 VAC to 150 VAC (± 5 VAC) |
| Input Frequency Range | 50/60 Hz |
| Output Voltage Range (AC Mode) | 102 VAC to 132 VAC |
| Output Voltage Range (Batt. Mode) | 110 VAC to 125 VAC (No Load) |
| Frequency Range (Batt. Mode) | 50/60 Hz ± 0.5 Hz |
| Transfer Time | DC to AC ≤ 10 ms; AC to DC ≤ 10 ms |
| Waveform (Batt. Mode) | Charging Mode (DC Mode): PWM |
| POWER | |
| Battery | 12 V/9 Ah × 1 |
| Rechargeable | Typical recharge time: 10 to 16 hours |
- Bảo hành: 24 tháng.
