Bộ kiểm soát cửa ra vào độc lập 1 cửa DAHUA DHI-ASI1212F

Trang Chủ >> Access Control-Kiểm soát cửa >> Access Control DAHUA >> Bộ kiểm soát cửa ra vào độc lập 1 cửa DAHUA DHI-ASI1212F
Mã số:37018079

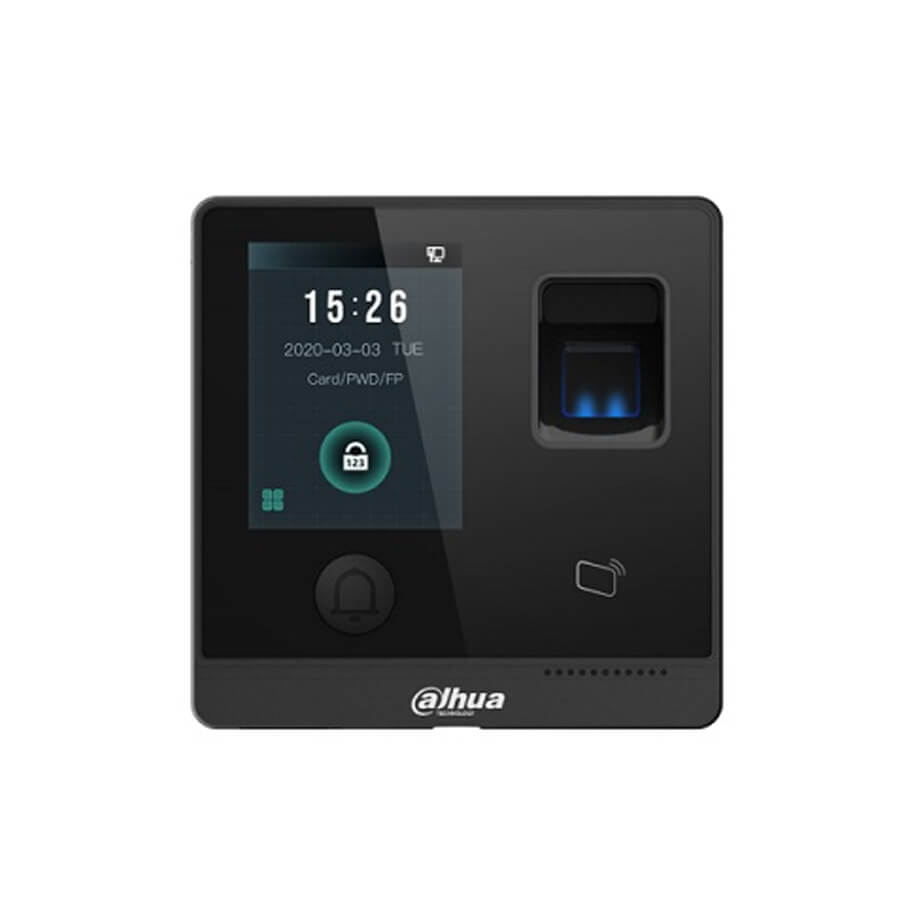

Bộ kiểm soát cửa ra vào độc lập 1 cửa DAHUA DHI-ASI1212F

Bộ kiểm soát cửa ra vào độc lập 1 cửa DAHUA DHI-ASI1212F

- Bộ kiểm soát cửa độc lập (1 cửa).

- Với thiết kế vỏ PC + ABS và kính cho màn hình trước, phù hợp gắn trong nhà.

- Màn hình cảm ứng LCD 2.8-inch với độ phân giải 240 x 320 pixel.

- Thuật toán học sâu cho thời gian nhận dạng vân tay chỉ 1.5s.

- Hỗ trợ mở khóa bằng vân tay, mật khẩu, thẻ (thẻ IC).

- Hỗ trợ 30.000 người dùng, 30.000 thẻ, 3.000 dấu vân tay, 150.000 bản ghi.

- Hỗ trợ OSDP, TCP/IP.

- Hỗ trợ các cổng ngoại vi: RS-485, Wiegand, USB, Alarm in/out,...

- Kích thước (H×W×D): 114.5 × 114.5 × 32.5 mm.

Đặc tính kỹ thuật

System
Main Processor Embedded processor
Network Protocol IPv4, TCP, P2P
Button Type Touch button
OSDP Protocol Yes (only supported as a host)
Basic
Display 2.8 inch TFT touch screen
Screen Type Capacitive screen
Resolution 240(H)×320(V)
Voice Prompt Yes
Buzzer Yes
Housing Material PC+ABS
Function
Unlock Mode Card/remote/password/fingerprint
Card Type IC card
Period List 128
Holiday Period 128
Network Update Yes
First Card Unlock Yes
Remote Verification Yes
Blacklist/Whitelist Yes
Ads Broadcast Support graphic advertisement play
Peripheral Card Reader 1 RS-485, 1 Wiegand
Group Combination Card/remote/password/fingerprint
Web Configuration on PC Yes
Web Configuration on Mobile Yes
Performance
Card Reading Distance 1cm - 3cm
Fingerprint Sensor Type Optical fingerprint
Fingerprint Verification Mode 1:N, 1:1
Fingerprint Comparison Time 1.5 s
Capacity
User 30,000
Fingerprint 3,000
Card 30,000
Password 30,000
Record 150,000
Port
RS-485 1
Wiegand 1 (input or output)
USB 1 USB2.0 port
Network One 10/100 Mbps self-adaptive network port
Alarm Input 1
Alarm Output 1
Alarm Linkage Yes
Unlock Button 1
Door Status Detection 1
Lock Control 1
Alarm
Anti-passback Yes
Tamper Yes
Duress Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
Duress Fingerprint Yes
General
Power Supply DC 12V 1A
Power Consumption ≤ 4.0W (standby), ≤ 6.0W (working)
Dimensions (H×W×D) 114.5 mm × 114.5 mm × 32.5 mm
Packing Dimensions (H×W×D) Packing box: 187 mm ×164 mm ×72 mm
Protective box: 585 mm×390 mm×360 mm
Operating Temperature -10°C to +45°C (14°F to 113°F)
Operating Humidity 5%RH-90%RH (no condensation)
Operating Environment Indoor
Gross Weight 415.0 g (0.91 lb)
Installation Surface mount, flush mount, 86 case mount
Certifications CE, FCC

- Sản xuất tại Trung Quốc.

- Bảo hành: 24 tháng.

Giá: 3.000.000 VND (Đã bao gồm VAT)
