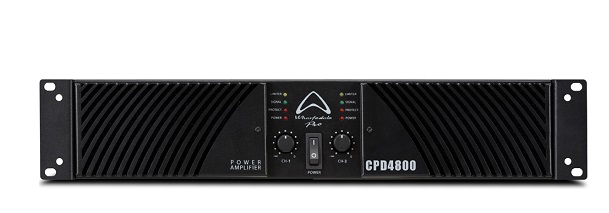

Bộ khuếch đại âm thanh WHARFEDALE PRO CPD4800
- The top-of-the-range CPD4800 delivers breathtaking power. This 2U Class H amp delivers a competitor busting and earth shattering 4800watts when bridged into 4Ω. Weighing in at only 23.5kg the CPD4800 also has the best weight:power ratio in the CPD series.
Key Features
- New - 4800 WWatts when bridged into 4Ω.
- New - 2 x 5-way binding posts.
- Robust construction.
- Parallel, Stereo and Bridge modes.
- Limiter switch.
- Status and clip LEDs.
- Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off muting.
- Color: Black.
Specifications
| Model | CPD4800 |
| Stereo Power Output: RMS | |
| 8Ω x 2 | 1000W |
| 4Ω x 2 | 1500W |
| Bridged Mono Power Output: RMS | |
| 8Ω | 3000W |
| 4Ω | 4800W |
| Frequency Response | 20Hz - 30kHz |
| Topology | Class H |
| Inputs | 2 x XLR |
| Outputs | 2 x NL4 (speakON compatible),2 x binding posts, 2 x XLR |
| Input Sensitivity & impedance | |
| Sensitivity | 0dBu (0.775Vrms) |
| Balanced XLR input | 20KΩ |
| Maximum Input Level | 22dBu (9.7Vrms) |
| Voltage Gain | 42dB |
| Slew Rate | >40V/ us |
| Crosstalk | <-75dB |
| S/N | >100dB |
| Distortion (1W) | <0.02% |
| Damping Factor | >300 |
| Controls | |
| Front panel | AC Switch, CH 1 and CH 2 Gain Knobs |
| Rear panel | Parallel, Stereo & Bridge Mode Switch; Limiter Switch |
| Protections | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Indicators | Power, Protect, Signal, Peak |
| Cooling | Variable Speed Fan |
| Dimensions | 88 x 483 x 450mm |
| Net Weight | 23.5kg/ 51.80lbs |
| Gross Weight | 27kg/ 59.52lbs |
- Bảo hành: 12 tháng.
