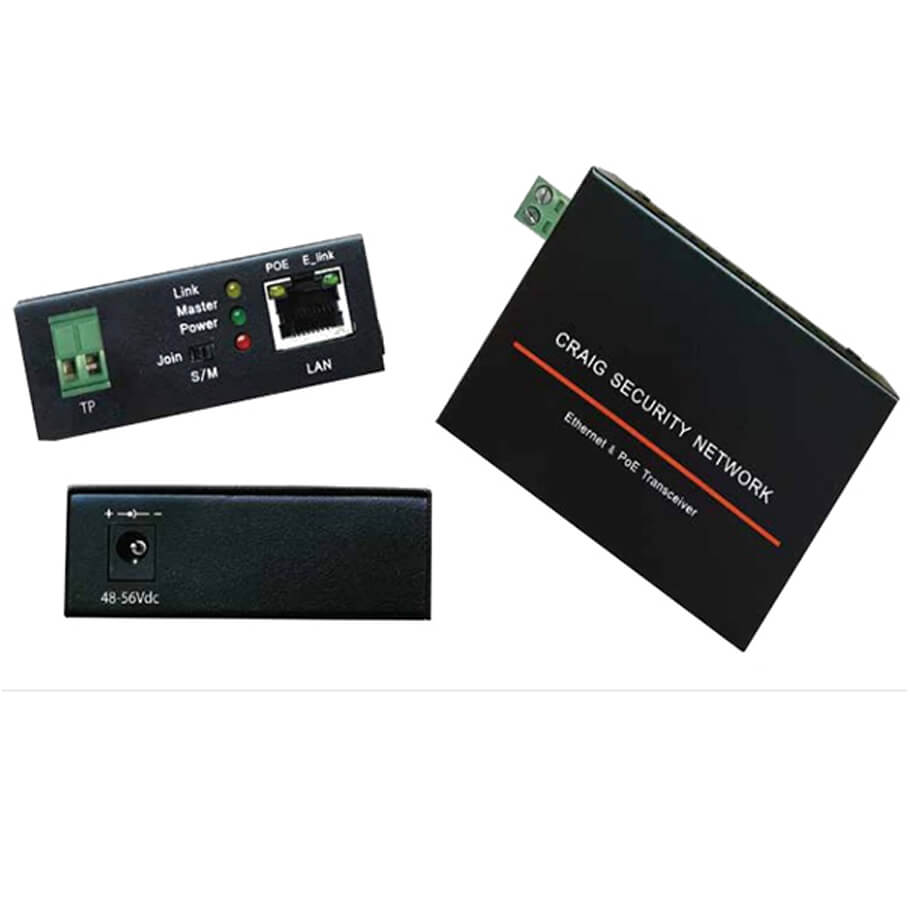

Bộ chuyển đổi tín hiệu mạng CRAIG SECURITY NETWORK CS-7601TW
- Ethernet & PoE over 2-Wires Transceiver.
- Transmit 10/100 BaseT Full Duplex Ethernet up to 600m over 2-Wires cable.
- 48-56Vdc is distributed over the 2-Wires to all connected equipment. Power support
- PoE, PoE+ or Ultra PoE Camera (or other PoE devices), up to 60 watts.
- 2-Wires transceiver at the network-end can support multiple remote transceivers /
- IP cameras by using Daisy Chain method.
- Easy configuration, no PC required.
- Plug and Play Technology.
Đặc tính kỹ thuật
| Model | CS-7601TW |
| Coaxial-line Interface | |
| Standards | Base on up-to-date advanced IEEE P1901 for ethernet over 2-Wires Cable Application with raw data rates up to 90Mbps |
| UTP Cable Device | CR700 / CR100 |
| Connector | 2-Wire on device |
| Line Rates | |
| Phy Rate | Maximum Link Rates 90Mbps |
| Ethernet Interface | |
| Standards | ISO / IEC 802.3 (ANSI / IEEE 802.3i)10BASE-T Ethernet IEEE 802.3u , 100BASETx , Fast Ethernet IEEE 802.3ab 100BASE-T |
| PHY Connection | TSZ7042 , 10BASE-T , 100BASE-T , With Auto-detect Auto MDIX |
| Connector | 2-Wires Connector for 10BASE-T , 100BASE-Tx Ethernet Interface |
| LED Indicators | |
| RJ45-DATA | Data Link / Green |
| RJ45-PoE | PoE On / Yellow |
| Power | 48-56Vdc Link/Red |
| Join | Link/Yellow |
| Encryption | |
| Encryption method | 128-bit AES Link Encryption with key management for secure. Power line communication |
| IGMP | |
| IGMP Protocol | Supports IGMP multicast sessions ToS , CoS and IP port number packet classification |
| PoE | |
| Standards | IEEE 802.3 at / af Both supports |
| Maximum Power | Up to 60W |
| System Power | |
| Voltage | AC/DC Power adaptor , AC 90 ~ 260V , 50Hz / 60Hz , 48-56Vdc, 2A |
| Agency Approval | |
| AC Line Safety | UL 60950-1 and CE60950 for ITE Devices, CAS, TUV |
| Emissions | FCC Part 15 Sub Part B for Class B |
| Surge Protection | 4KV / 1.2 , 50 us , 2KA / 8, 20uS for AC/DC Adaptor |
| Mechanical | |
| Dimensions | With Bracket: 104 x 95 x 26mm Without Bracket : 104 x 70 x 26mm |
| Weight | 180g |
| Enviroment conditions | |
| Operatiiong Temperature range | -20°~75°C |
| Humidity Range | 10% ~ 90% |
| Storage Temperature | -40 ~ 80 °C |
- Bảo hành: 12 tháng.
