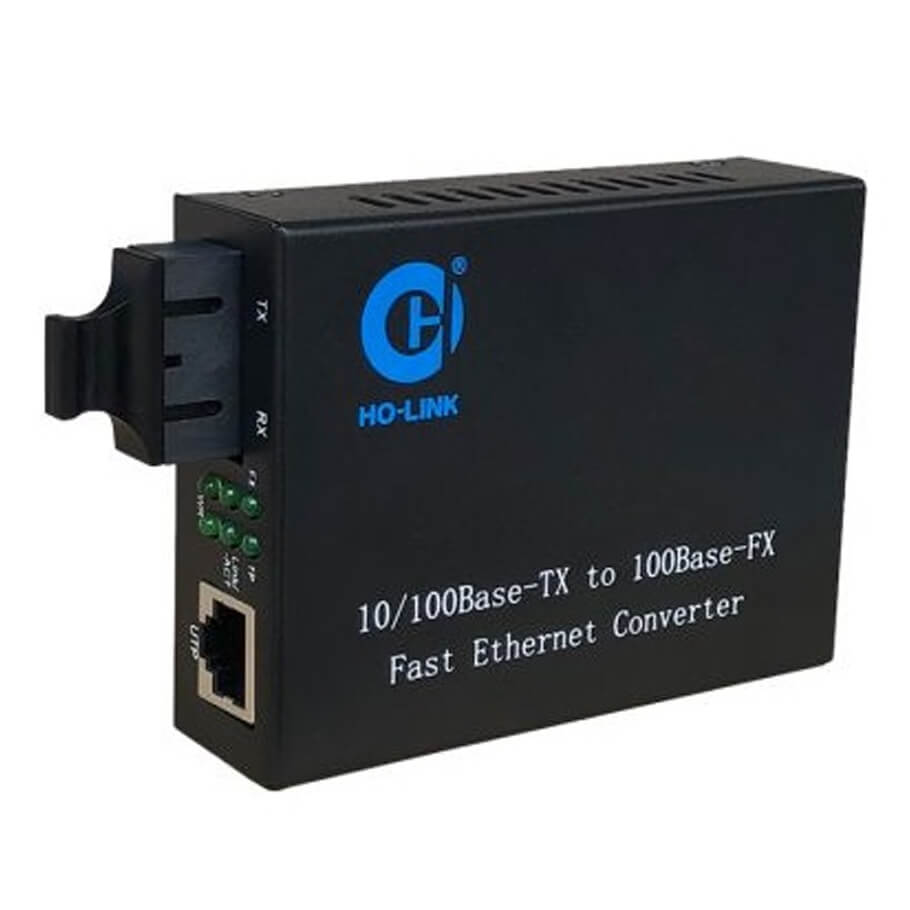

Bộ chuyển đổi quang điện 10/100M Single Fiber HO-LINK HL-1211S-20
- Bộ chuyển đổi quang điện 10/100M Single Fiber.
- Bước sóng: 1310nm.
- Cổng quang: SC- 20km - Duplex.
- Tốc độ RJ45: 10/100Mbps.
- Bộ gồm 1 chiếc, 1 Adapter 5V-2A.
Thông số kỹ thuật
| Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Fiber port | Data Rate: 155M Connector: SC as default,FC/ST (optional) Distance: Multi-mode Fiber 2km Single-mode Fiber 20km Wavelength: 1310nm TX power ≥ -12 dBm RX Sensitivity ≥ -33 dBm |
| Copper port | Data Rate: 10/100M Connector: RJ45 Category-5 twisted pairs: 100m |
| Performance | Conversion Means: store-and-forward/cut-through Delay time: <10us Back Bandwidth: 400Mbps MAC address Size: 4Kbit Packet Buffer Size: 512Kbit |
| LED indicators | PWR (power supply) FX LINK/ACT (optical link/action) TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs) FX 100 (100M transmission rate of optical fiber) |
| Electrical&Mechanical | Input power Requirements: DC5V@1A Power Adapter: AC100V~240V Power consumption: <2W Dimensions: 9.4*7*2.6cm Packing: 26.5*15.7*5.8cm Weight: 0.4kg (External power supply) |
| Environmental | Operating Temperature: -20ºC~+75ºC Storage Temperature: -40ºC~+85ºC Relative Humidity: 5%~90%(no-condensing) MTBF: >100,000 hours |
- Bảo hành: 24 tháng.
