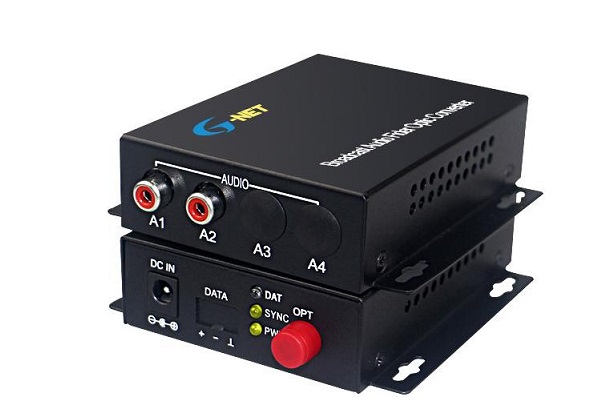

Audio Conveter GNET HHD-G2AB-RCA
- 2CH Bididirectional (hai chiều Audio), RCA, Single Fiber, 20KM, FC.
- Single-Mode Fiber support or distances upto 20km.
- LED Status Provide Rapid Indication of Operating Parameters.
- Completely digital fiber transmit platform.
- Audio to fiber converter is based on self copyright IC.
- No interference from adjacent power lines, sources or other.
- Wall mounted or desktop installation.
Specification
| Audio | |
| Number of channels | 2 channel Bididirectional |
| Audio Connector | RCA (Female) |
| Audio input/output voltage | 2Vp-p (typical value) |
| Audio input/outpit impedance | 600 ohm Unbalanced |
| Bandwidth | 20Hz~20kHz |
| Bit Resolution | 24 bit |
| Signal-to-Noise Ratio (SNR) | ≥8dB |
| Optical | |
| Optical connector | FC/UPC |
| Fiber Mode | Single mode |
| Optical output power | -6dB (+/-5dB) DFB≥-3dB |
| Wavelength | 1310nm&1550nm |
| Transmission distance | 0-20km |
| Electrical & Mechanical | |
| Input Power Requirements | DC 12V |
| Power Adapter | AC 100~240V |
| Environmental | |
| Operating Temperature | -20°C~+50°C |
| Storage Temperature | -40°C~+75°C |
| Relative Humidity | 0%~95% (non-condensing) |
| MTBF | >100.000 hours |
- Bảo hành: 24 tháng.
