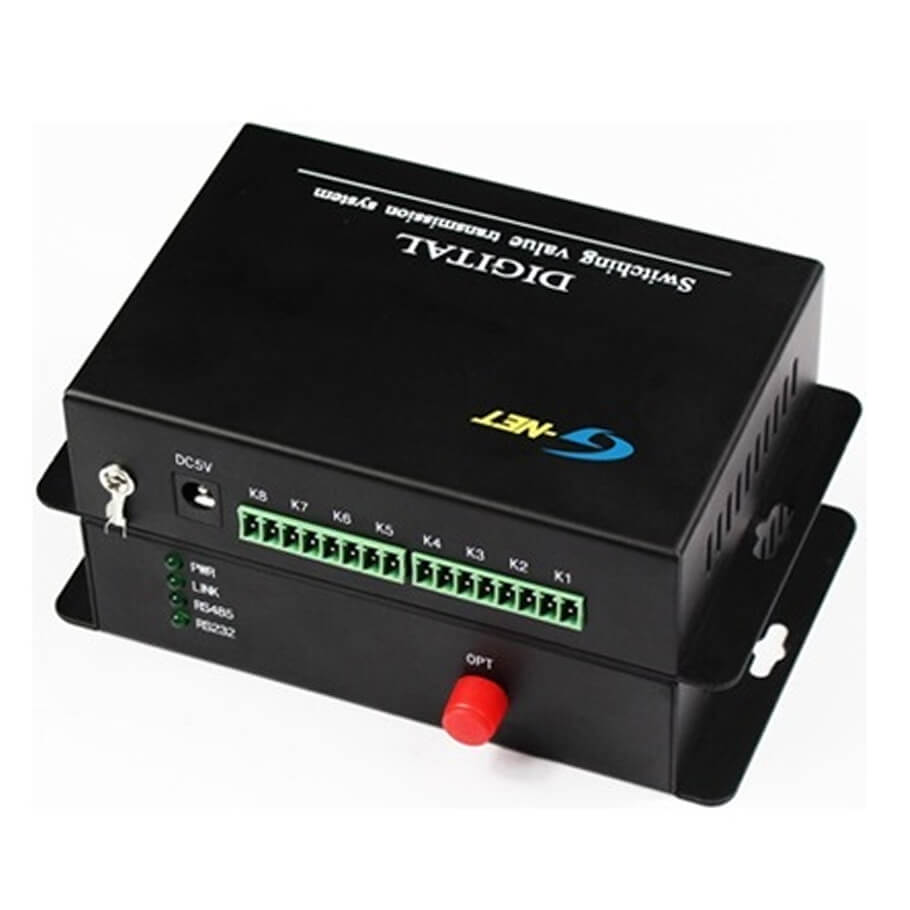

8CH Forward Contact Closure Converter GNET G-8K-FC20T/R
- 8CH Forward Contact Closure (Normal Open), Single Fiber, Single-Mode, 1310nm, 20KM, FC.
- LED indicators display the working status,supporting simple trouble shooting.
- No EMI or RFI and no ground loops.
- Plug and play, no configuration required.
- Desktop or wall mounted,easy to install and use.
Specification
| Contact Closure | |
| Number of Channels | 8 Channel Forward |
| Connector | Terminal Block |
| Data Formats | Contact Closure, TTL |
| Data Rate | DC to 200Kbps |
| Bit Error Rate | < 10E-9 |
| Optical | |
| Fiber mode | Single-mode or Multi-mode,Single fiber |
| Connector | Simplex FC/UPC or SC/UPC or ST/UPC |
| Wavelength | 1310nm |
| Transmission Distance | 20km |
| Power | |
| Power Adapter Input Voltage | AC 100-240V (External Power Adapter) |
| Power Adapter Output Voltage | DC 5V |
| Mechanical | |
| Case | Metal |
| Cooling way | Natural cooling,fanless design |
| Installation | Desktop or Wall Mounted |
| Dimension | 133 x 80 x 32mm (L x W x H) |
| Environmental | |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 0-95% (no condensation) |
| MTBF | >100,000 hours |
- Bảo hành: 24 tháng.
