0916 287 068 867Mbps Wireless Bridge RUIJIE RG-AirMetro550G-B
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng RUIJIE >> 867Mbps Wireless Bridge RUIJIE RG-AirMetro550G-B
Mã số:04625894

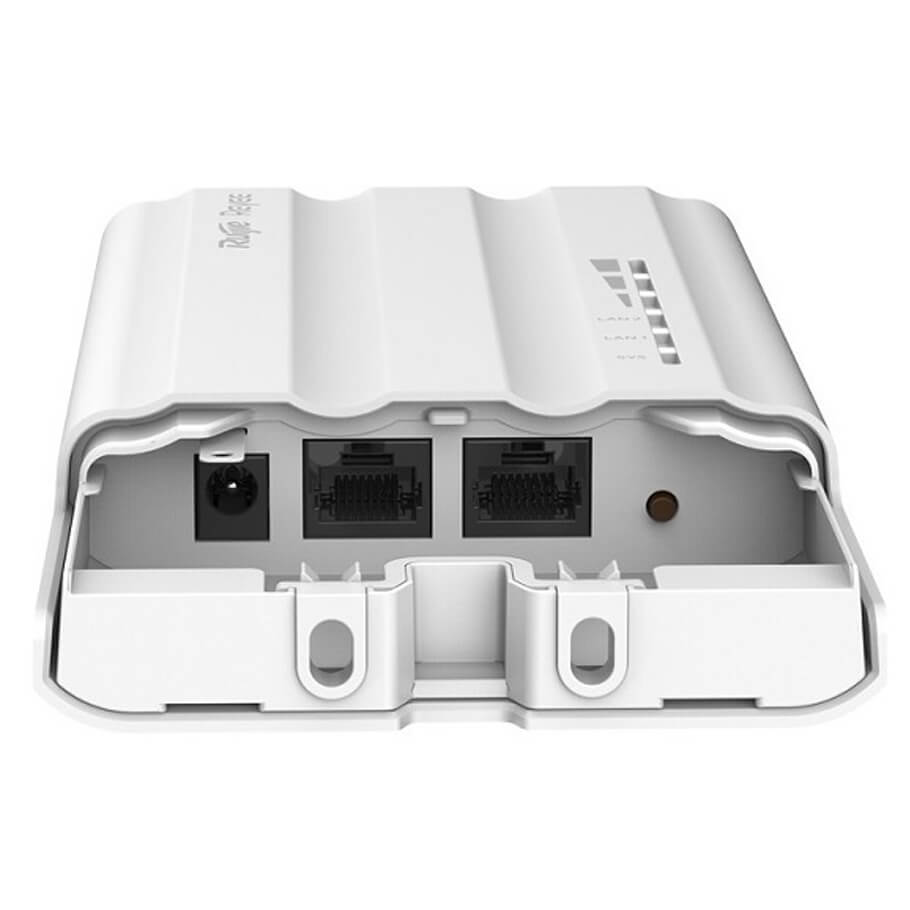

867Mbps Wireless Bridge RUIJIE RG-AirMetro550G-B
- Khoảng cách truyền không dây lên đến 10km.
- Hỗ trợ tối đa 1 đến 32 Links PTMP, kết nối dễ dàng trong 30 giây.
- Hỗ trợ 2 cổng GE - mang đến nhiều khả năng kết nối.
- Đầu vào 12VDC và 24V Passive PoE: Nguồn cấp năng lượng mặt trời.
- Cấp độ bảo vệ: IP55.
- Chống sét 6kV.
Thông số kỹ thuật
| Basic | |
| Working Distance | 2/5/10 km (when mounted on a 360°, 120°, or 90° antenna) |
| Gain | 13/16/20 dBi (2/5/10 km) |
| Angle | 360°/120°/90° |
| Capacity | 5 GHz, 867 Mbps |
| IP Rating | IP55 |
| Frequency Range* | 2.4 GHz: 802.11 b/g/n: 2.4000 GHz to 2.483 GHz 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz (Note: Country-specific restrictions apply.) European Union & United Kingdom: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5470-5725 MHz, EIRP ≤ 30 dBm Myanmar: 2400-2483.5 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Thailand: 2.4 GHz to 2.4835 GHz: 20 dBm 5.725 GHz to 5.825 GHz: 30 dBm Indonesia: 2400-2483.5 MHz, EIRP ≤ 27 dBm 5725-5825 MHz, EIRP ≤ 23 dBm Egypt: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm |
| Software Features | |
| Management Radio | 2.412GHz-2.472GHz |
| Number of PtMP CPE | 1 to 32 |
| Port | 2 x 10/100/1000 Mbps Ports |
| Operating Temperature | -40℃ to +80℃ (-40°F to +176°F) |
| Electrostatic Protection | ±24 kV Contact/Air |
| Surge Protection | 6 kV |
| Power | 24 V Passive PoE 12 V DC Input |
| LED | 3 x Signal Strength LED 2 x LAN LED 1 x System LED |
| Dimensions | 200×98.5×29mm |
| Operation Mode | Base Station/CPE |
| Channel Sizes | 20/40/80Mhz |
| Default login IP | 10.44.77.254 |
| Default Login Username | admin |
| Default Login Password | admin |
| TDMA | Fixed Mode/Flexible Mode |
| WLAN SECURITY | WPA2-PSK |
| Manage SSID | @Ruijie-bxxxx |
| SSID Hidden | Yes |
| Spectrum Analysis | Yes |
| Aligment Tools | Yes |
| One-Touch Pairing | Yes |
| WMM | Yes |
| Storm Control | Yes |
| VLAN Packet Transmit | Yes |
| DHCP Server | Yes |
| Network Diagnoses | Ping/TraceRoute/Dns |
| TIME&Date Setting | Yes |
| Firmware Upgrade | Yes |
| Backup/Restore Configuration | Yes |
| Manage By Cloud | Yes |
| Power Configuration | Yes |
| Country or region code configuration | Yes |
| Language Setting | Chinese/English |
| Remote restart | Yes |
| Hardware Features | |
| ARQ | Yes |
| Nominal Receive Sensitivity @20 MHz Channel | MCS0=-95dBm TO MCS7=- 77dBm |
| Nominal Receive Sensitivity @40 MHz Channel | MCS0=-91dBm TO MCS7=- 73dBm |
| Nominal Receive Sensitivity @80 MHz Channel | MCS0=-89dBm TO MCS9=- 64dBm |
| Modulation Levels (Adaptive) | MCS0(BPSK)to MCS9 (256QAM5/6) |
| Transmit Power Range | 0 to +26 dBm (1 dB interval) |
| Hardware Button | 1 x Reset/WPS button |
| Power Supply | 24 V Passive PoE input (shipped with a 24 V PoE injector) |
| Power Consumption | < 12 W |
| Environment | Operating temperature: -40℃ to +70℃ (-40°F to +158°F) Storage temperature: -40℃ to +85℃ (-40°F to +185°F) Operating humidity: 5% to 95% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
| MTBF | > 400,000 hours |
- Bảo hành: 3 năm.
Giá: 3.204.000 VND
(Đã bao gồm VAT)
