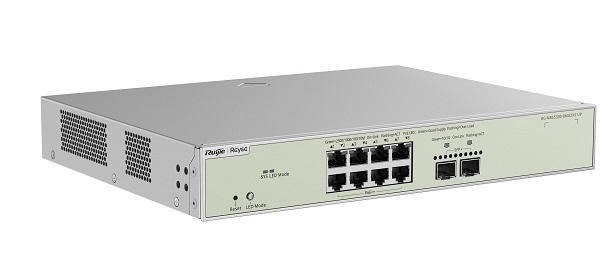

8-Port Gigabit PoE + 2-Port SFP+ Switch RUIJIE RG-NBS5300-8MG2XS-UP
- Hỗ trợ 8 cổng 10/100/1000Base-T PoE, và 2 cổng SFP+.
- Max. PoE budget: 370W.
- Công suất chuyển mạch: 80Gbps.
- Tốc độ chuyển tiếp: 58.72Mpps.
- Kích thước bảng địa chỉ MAC: 16000.
Thông số kỹ thuật
| Basic | |
| 10/100/1000/2500Base-T copper ports | 8 |
| SFP+ ports | 2 |
| PoE/PoE+/PoE++ ports | 8 |
| Max. PoE budget | 370W |
| Layer Type | Layer 3 |
| Switching capacity | 80Gbps |
| Forwarding rate | 58.72Mpps |
| Switching Cache | 12Mbit |
| ARP Table Size | 2000 |
| MAC address table | 16000 |
| Maximum VLAN Support | 4094 |
| Dimensions (W x D x H) | 300mm x 230mm x 43.6mm (The depth excludes the front panel) 300mm x 233mm x 43.6mm (The depth includes the front panel) |
| Weight | 3.25kg |
| MTBF | 400000H |
| Layer 2 Features | |
| Jumbo Frame | 9216 |
| Flow Control | Yes |
| STP (IEEE 802.1d) | Yes |
| STP (IEEE 802.1d) | Yes |
| MSTP (IEEE 802.1s) | non-supported |
| Port Fast | Yes |
| BPDU Guard | Yes |
| Errdisable Recovery | Yes |
| Max. Aggregation Group | 16 |
| Max. Member per Group | 8 |
| Unknow Unicast Storm Suppression | Yes |
| Multicast / Broadcast Storm Suppression | Yes |
| Many-to-One Mirroring | Yes |
| VLAN Range | 1~4094 |
| Port-based VLAN | Yes |
| MAC-based VLAN | non-supported |
| IP-based VLAN | non-supported |
| Voice VLAN | Yes |
| RLDP | Yes |
| LLDP / LLDP-MED | Yes |
| Cable Testing | Yes |
| IGMP Snooping v1/v2/v3 | Y/Y/N |
| Layer 3 Features | Yes |
| Static Routing | Yes |
| RIP/RIPng | Yes |
| OSPFv2/OSPFv3 | Yes |
| VCS | 2 |
| Max. No. of SVI (IPv4) | 32 |
| Max. No. of SVI (IPv6) | 32 |
| Software Features | |
| Ping | Yes |
| Traceroute | Yes |
| ACL Entries | Yes |
| Static Routing | Yes |
| IP Standard ACL | Yes |
| MAC-based Extended ACL | Yes |
| IP-based Extended ACL | Yes |
| Port-based Rate Limit (Ingress/Egress) | Yes |
| SNMP v1/v2c/v3 | Yes |
| DHCP Server | Yes |
| Web Management | Yes |
| Management IP | 10.44.77.200 |
| HTTP/HTTPS | Yes |
| Cloud Management | Yes |
| SON (Self-Organizing Network) with IP | Yes |
| Camera Recognition | Yes |
| Loop Prevention | Yes |
| Loop Notification | Yes |
| Protection Port | Yes |
| IP Source Guard | Yes |
| Anti-ARP Spoofing | Yes |
| DHCP Snooping | Yes |
| Physical Features | |
| DHCP Client | Yes |
| Flash Memory | 256MB |
| Reset Button | front |
| Cable Hot-swappable | Yes |
| Power Supply Slot | Single, fixed power supply |
| Power Supplies | 100 - 240V AC, 10A |
| Power Consumption (220VAC) | No PoE load: 42.48W; Full PoE load: 431.86W |
| EEE | Yes |
| Fan | 2 |
| Airflow | Left/Right-to-Rear |
| Fan Adaptive Speed Adjustment | Yes |
| Acoustic Noise | <40dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Port Surge | 6 kV |
| Operating Altitude (meters) | -500 to 5000 |
| Certificate | CE, RoHS |
- Bảo hành: 5 năm.
