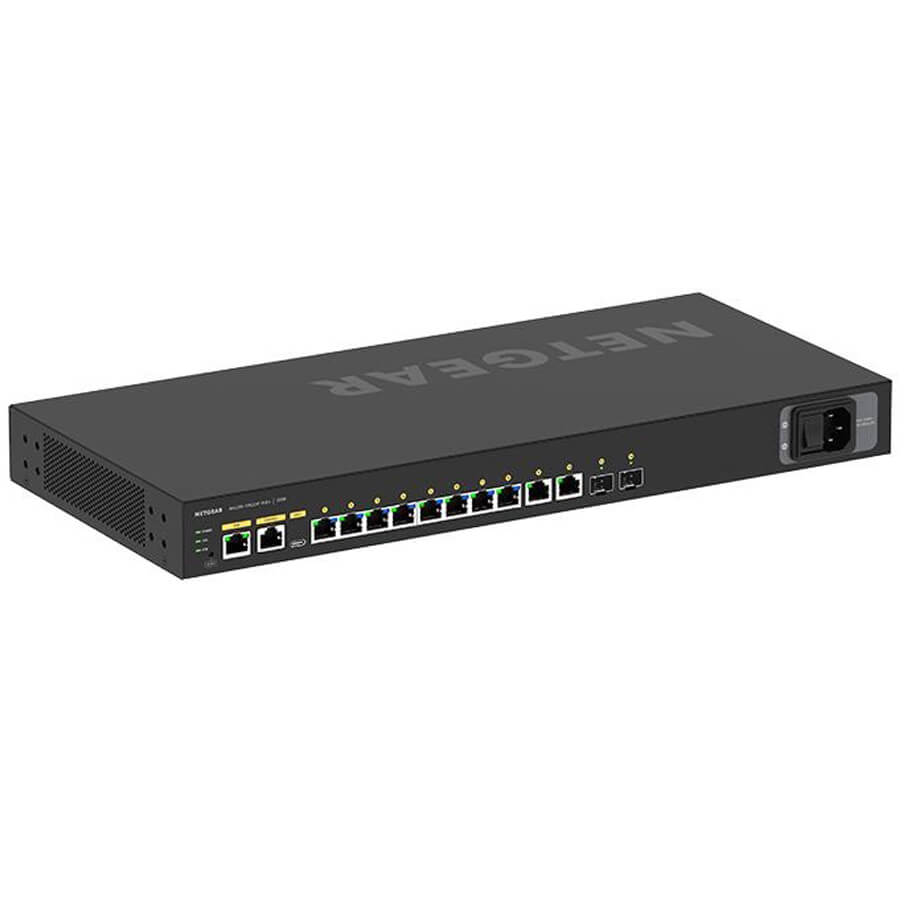

8-Port GE PoE Managed Switch NETGEAR GSM4212PX
- CPU/RAM/FLASH: ARM A9 1.25Ghz 32-bit/2GB RAM/256MB Flash.
- 1-port 1G Out-of-band RJ45 + 8x10/100/1000 PoE+ RJ45 + 2x10/100/1000 RJ45 + 2 x 1/10G SFP+.
- PoE standard: 802.3af (15.4W), 802.3at (30W).
- Stacking: Không hỗ trợ.
- Bandwidth/Throughput: 60 Gbps/ 44.64 Mpps.
- MAC/ARP Table/IP Multicast Routing Entries/IGMP: 16K/4K/512 IPv4, 128 IPv6/2K IPv4, 2K IPv6.
- VLAN/ACLs/Packet Buffer/Jumbo Frames: 4K/100/16Mb/Up to 12K packet size.
- Application Route Scaling: Static: 64 v4/64 v6, RIP: 32v4
- Layer-3: IPv4/IPv6 Static Routing, IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM.
- Audio profiles: Dante, Q-SYS, AES67 và AVB.
- Video profiles: NVX, SVSI, Q-SYS, NDI và Dante,...
- PoE Power Budget: 240W.
- Fan: Side-to-side airflow.
- PSU: 1 x Fixed Internal (C14 inlet) On/Off switch.
- Form Factor: 1U Rackmount.
* AVB license mua riêng theo từng switch model.
Thông số kỹ thuật
| Model | GSM4212PX |
| Primary Port Speed | 1 Gigabit |
| Number of Ports | 12 (10x 1G, 2x SFP+) |
| PoE Ports / Budget | 8 PoE+ (30W/port), 240W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes. Electronic license required, activation key sent via email (AVB4212PX-10000S) |
| Acoustics | Fanless or 39.22dB@25ºC |
| Power Consumption | With PoE: 306.4W/1046.050Btu/hr; Without PoE: 25W/85.35Btu/hr; Standby without any port connection: 12.96W/44.245Btu/hr |
| Third party support | Domotz |
| Dimensions (WxDxH) | 440 x 200 x 43.2mm |
| Weight | 2.9Kg |
- Bảo hành: 3 năm.
