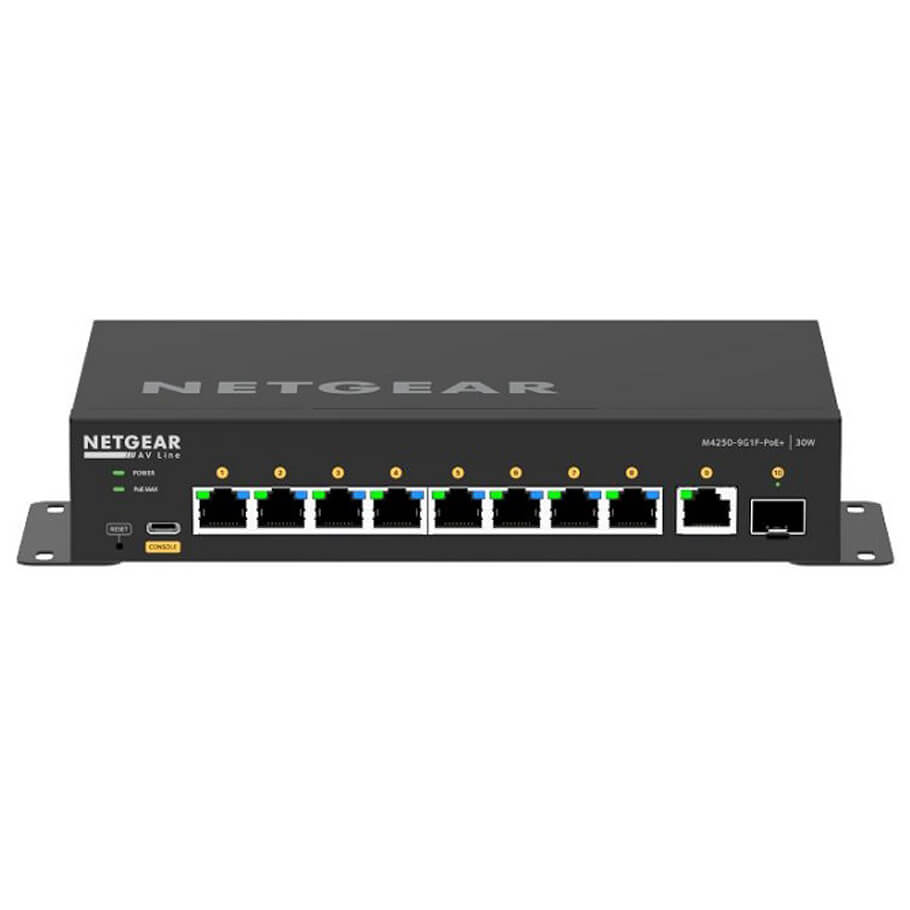

8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch NETGEAR GSM4210PD
- CPU/RAM/FLASH: ARM A9 1.25Ghz 32-bit/2GB RAM/256MB Flash
- 1-port 1G Out-of-band RJ45 + 8x10/100/1000 PoE+ RJ45 + 1x10/100/1000 RJ45 + 1x1G SFP
- PoE standard: 802.3af (15.4W), 802.3at (30W)
- Stacking: Không hỗ trợ
- Bandwidth/Throughput: 20 Gbps/14.88 Mpps
- MAC/ARP Table/IP Multicast Routing Entries/IGMP: 16K/4K/512 IPv4, 128 IPv6/2K IPv4, 2K IPv6
- VLAN/ACLs/Packet Buffer/Jumbo Frames: 4K/100/16Mb/Up to 12K packet size
- Application Route Scaling: Static: 64 v4/64 v6, RIP: 32v4
- Layer-3: IPv4/IPv6 Static Routing, IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM
- Audio profiles: Dante, Q-SYS, AES67 và AVB
- Video profiles: NVX, SVSI, Q-SYS, NDI và Dante,...
- PoE Power Budget: 110W
- Fan/PSU/Form Factor: Fanless, 1 x external power adapter using standard AC power cord (C13), fixed/Desktop
* AVB license mua riêng theo từng model switch
Thông số kỹ thuật
| Model | GSM4210PD |
| Primary Port Speed | 1 Gigabit |
| Number of Ports | 10 (8x 1G PoE+, 1x 1G, 1x SFP) |
| PoE Ports / Budget | 8 PoE+ (30W/port), 110W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes. Electronic license required, activation key sent via email (AVB4210PD-10000S) |
| Acoustics | Fanless |
| Power Consumption | With PoE: 132.25W/451.5Btu/hr Without PoE: 9.88W/33.73Btu/hr Standby without any port connection: 6.4W/22.02Btu/hr |
| Third party support | Domotz |
| Dimensions (WxDxH) | 210x 140 x 40 mm |
| Weight | 965g |
- Bảo hành: 3 năm.
