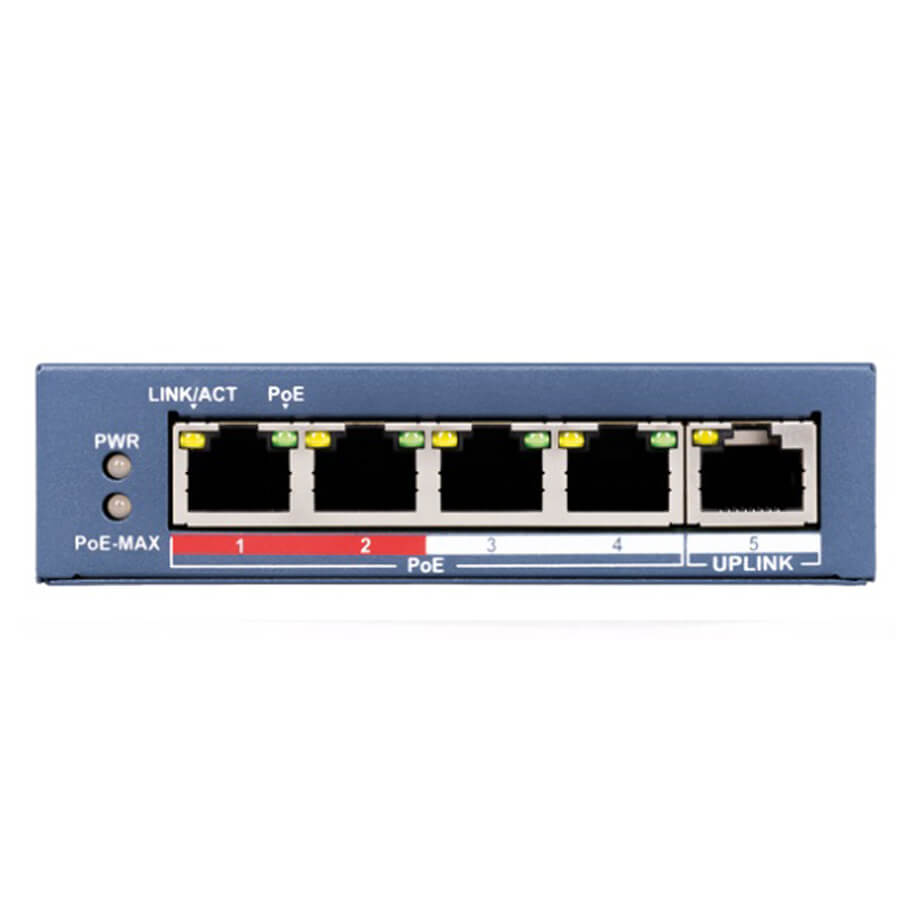

5-Port 10/100Mbps Ethernet PoE Switch JABLOTRON JI-114Z
- The PoE switch is suitabe for the easy and fast extension of your local LAN. It is equipped with four powerful PoE ports for data connection and to power supply JABLOTRON IP cameras using one cable.
- Support networks at both 10Mbps and 100Mbps.
Thông số kỹ thuật
| Power (power adapter from 230 V AC) | 51 V DC |
| Maximum current | 1.25 A |
| Communication interface | 5x RJ-45 10/100 Mbps Ethernet |
| PoE ports | 4 |
| High priority ports | Port 1 |
| Maximum load per port | 30 W |
| Total maximum load | 58 W |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| Maximum cable length – CAT-5e category cable with PoE: | EXTEND mode OFF (10/100 Mbps) 150 m EXTEND mode ON (10 Mbps) 250 m |
| Transmission speed | Ethernet: 10 Mbps (Half Duplex)/20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex)/200 Mbps (Full Duplex) |
| Transmission medium | Ethernet: Cat. 3 or better UTP/STP Fast Ethernet: Cat. 5 or better UTP/STP |
| Switching capacity | 1 Gbps |
| Operational humidity | 10 % to 90 % RH, non-condensing |
| Operational temperature range | 0 °C to +40 °C |
| Storage temperature range | 40 °C to +70 °C |
| Degree of protection | IP20 |
| Dimensions, weight | 132 x 28 x 94 mm, 300 g |
| Complies with | EN 55032:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2014. EN 61000-3-3:2013 |
- Bảo hành: 5 năm.
