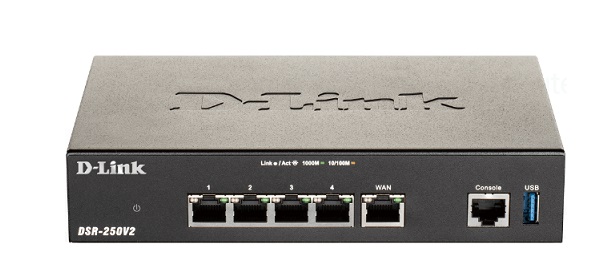

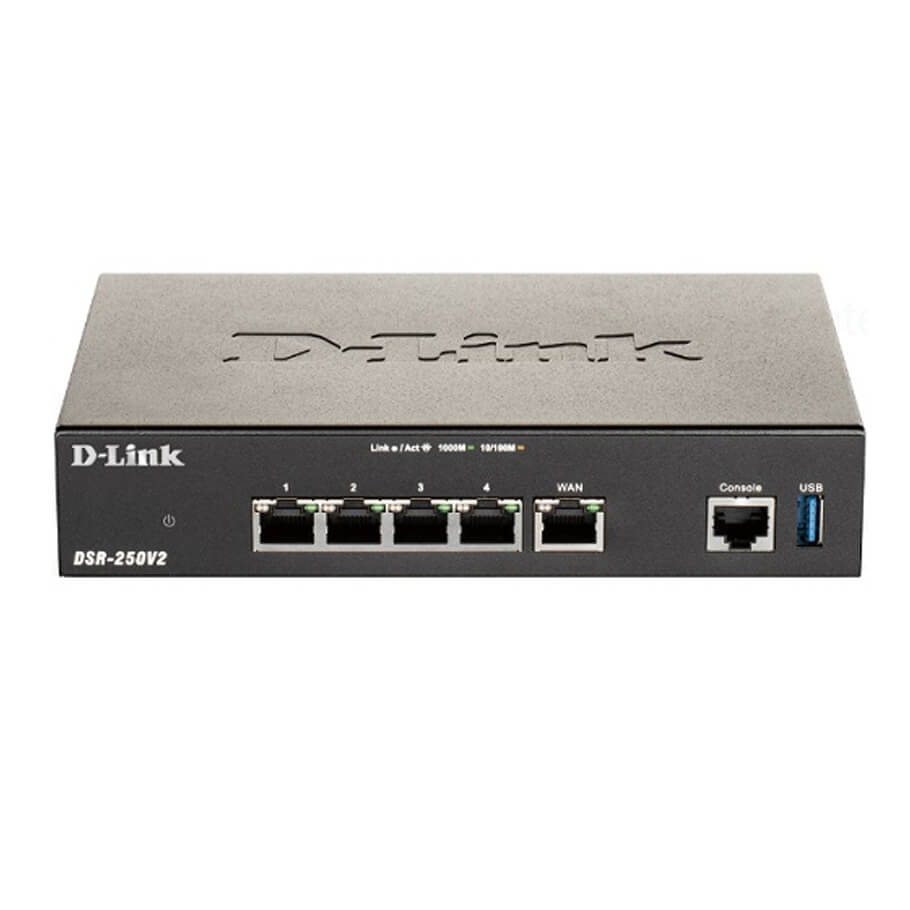

5-Gigabit Port VPN Router D-Link DSR-250V2
- The D-Link DSR-250v2 Series Unified Services Routers provide highly secure, multifunctional networking solutions to small and medium businesses users.
- Automatic failover to another link from available ISP when primary line is lost.
- Support 1 x GE WAN, 3 x GE LAN, 1 GE Configurable LAN/WAN and 1 x USB 3.0 port.
- 900/200Mbps firewall/VPN throughput, 50.000 Concurrent Sessions, and 50/20 IPsec/SSL VPN Tunnels.
- Advanced routing, VLAN and IPsec/PPTP/L2TP/OpenVPN VPN Server/Client.
- Value-added office utilities to reduce OpEx/CAPEX.
- Traffic load balancing and Avoid complicated maintenance issues.
Thông số kỹ thuật
| Ethernet Interface | 1 x 10/100/1000 Mbps WAN port; 3 x 10/100/1000 Mbps LAN ports; 1 x 10/100/1000 Mbps configurable port |
| USB Port | 1 x USB 3.0 |
| Console Port | RJ-45 |
| Firewall Throughput | 950 Mbps |
| VPN Throughput (3DES) | 200 Mbps |
| Concurrent Sessions | 50,000 |
| New Sessions (per second) | 2000 |
| Firewall Policies | 300 |
| Static/Dynamic IP | Yes |
| Static Route | Yes |
| Dynamic Route | RIP v1/v2, OSPF, OSPFv3 |
| Authentication | Internal User Database, Radius, POP3, LDAP, AD, NT Domain |
| Application Control | Well-known Application Control (license required) |
| DHCP Server/Client | 1024 clients |
| DHCP Relay | Yes |
| IEEE 802.11q VLAN | Yes |
| Number of VLANs | 16 |
| IP Multicast | IGMP Proxy, IGMP Snooping |
| IPv6 | Yes |
| Route Failover | Yes |
| VPN Tunnels | 75 |
| IPsec Tunnel | 50 |
| PPTP/L2TP Tunnels | 30 |
| GRE | 20 |
| OpenVPN Tunnels | 20 |
| SSL Encryption Methods | RC4-128, 3DES, AES |
| Encryption Methods | DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL |
| Priority Bandwidth Control | Low/Medium/High |
| Web-based User Interface | Yes |
| Command Line | Yes |
| SNMP | v1, v2c, v3 |
| Power Supply | External Power Supply Unit DC 12 V/1.5 A |
| Max Power Consumption | 8.603 W/ 14.4 W |
| Dimensions (L x W x H) | 190 x 120 x 38 mm |
| Operation Temperature | 0 to 40°C (32 to 104 °F) |
| Storage Temperature | 20 to 70 °C (-4 to 158 °F) |
| Operation Humidity | 5% to 95% non-condensing |
| MTBF | 1,230,157.85 hours |
Bảo hành: 36 tháng.
