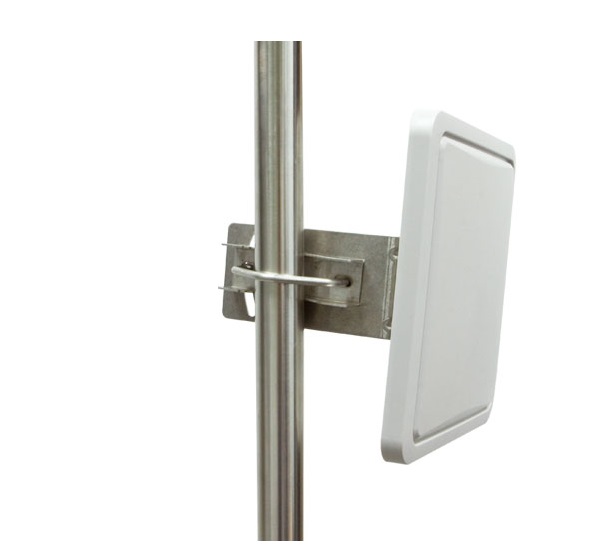

2x2 MIMO 2.4GHz 14dBi Flat-Panel Dual Polarization Direction Antenna PLANET ANT-FP14D
- Designed to extend wireless coverage of 802.11b/g/n devices at frequency of 2.4GHz.
- Intergrating two polarities into one antenna helps to reduce cost of deployment.
- 14dBi high-gain antenna.
- IP55-rated case.
- Compact-sized housing and lightning protection system design.
- Built-in two N-Type female connectors.
- Easily-extended, point-to-point wireless coverage.
Specifications
| Electrical Specifications | |
| Frequency Range | 2.4 ~ 2.5GHz |
| Max. Gain | 14dBi |
| Antenna Type | Uni-directional, flat panel |
| V.S.W.R. | <1.5 |
| Polarization | Horizontal and vertical (dual polarization) |
| HPBW/Horizontal | 30 degrees |
| HPBW/Vertical | 30 degrees |
| Input Impedance | 50Ω |
| Connector | N-Type (female) x 2 |
| Environmental & Mechanical Characteristics | |
| Survival Wind Speed | Greater than 150mph |
| Temperature | -40 ~ 70 degrees C |
| Humidity | 95% @ 55 degrees C |
| Radome Color | Grayish-white |
| Radome Material | ABS, UV-resistant |
| Dimensions (W x D x H) | 228 x 15 x 228 mm (connector excluded) |
| Weight | 562g |
| Waterproof Rating | IP55 |
| Mount Type | Pole Mount |
- Bảo hành: 24 tháng.
