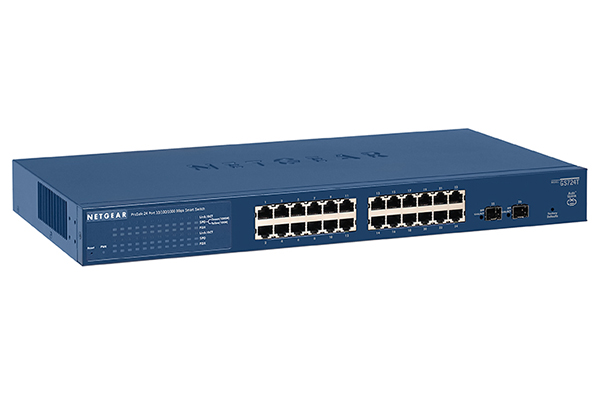

24-Port Gigabit Ethernet Smart Managed Pro Switch with 2 SFP Ports NETGEAR GS724T (version 4)
- 24-Port Gigabit Ethernet Smart Managed Pro Switch with 2 SFP Ports.
- Bandwidth: 52 Gbps.
- Buffer Memory/ACLs/MAC/VLANs: 2MB/100 shared/16K MAC/256 VLANs.
- Jumbo frame: Up to 9K packet size.
- Static Routing: 32 IPv4, PSU: Internal, Form Factor: Rack 1U.
Đặc tính kỹ thuật
| Model | GS724T (version 4) |
| Interfaces | 24 10/100/1000 Mbps auto-sensing Gigabit- Ethernet switching ports, and two dedicated 1000M SFP fiber ports |
| Forwarding modes | Store-and-forward |
| Bandwidth | 52 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC Address database size | 16k media access control (MAC) addresses |
| Addressing | 48-bit MAC address |
| Multicast groups | 512 |
| Number of static routes | 32 |
| Number of routed VLANs | 15 |
| Number of ARP Cache entries | 512 |
| Number of DHCP snooping bindings | 8K |
| Number of DHCP static entries | 1024 |
| ACL | 100 shared for MAC, IP and IPv6 ACLs |
| Jumbo frame support | up to 9K packet size |
| Acoustic noise (ANSI-S10.12) | 0 dBA |
| Mean Time Between Failures (MTBF) | 567,680 hours |
| IEEE 802.1Q VLAN Tagging | Yes |
| Protocol based VLANs | Yes |
| MAC based VLANs | Yes |
| Voice VLAN | Based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP) |
| Protocol-based VLAN | Yes |
| IEEE 802.1x | Yes |
| Guest VLAN | Yes |
| RADIUS based VLAN assignment via .1x | Yes |
| Network Storm Protection, DoS | Yes |
| Broadcast, Unicast, Multicast DoS Protection | Yes |
| DoS Attacks | Yes |
| Dynamic ARP inspection | Yes |
| IEEE 802.3ad - LAGs | Yes |
| LACP | Yes (26 LAGS with max. of 8 members in each LAG) |
| Broadcast Storm Control | Yes |
| IEEE 802.3x (Full Duplex and flow control) | Yes |
| IEEE 802.1D Spanning Tree Protocol | Yes |
| IEEE 802.1w Rapid Spanning Tree | Yes |
| IEEE 802.1s Multiple Spanning Tree | Yes |
| IGMP Snooping (v1, v2 and v3) | Yes |
| MLD Snooping Support (v1 and v2) | Yes |
| IGMP Snooping queries | Yes |
| Block unknown Multicast | Yes |
| Multicast VLAN Registration | Yes |
| Static Routing | Yes |
| VLAN Routing | Yes |
| IP Source Guard | Yes |
| IEEE 802.3 Ethernet | IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX |
| IEEE 802.3i 10BASE-T | IEEE 802.3ae 10-Gigabit Ethernet |
| IEEE 802.3u 100BASE-T | IEEE 802.3ad Trunking (LACP) |
| IEEE 802.3ab 1000BASE-T | IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) |
| IEEE 802.1Q VLAN Tagging | IEEE 802.1p Class of Service |
| IEEE 802.3x Full-Duplex Flow Control | IEEE 802.1Qat |
| File Transfers (uploads, downloads) | TFTP / HTTP |
| Per port | Speed, Link, Activity |
| Dimensions | 440 x 204 x 43mm |
| Weight | 2.74 kg |
- Bảo hành: 3 năm.
