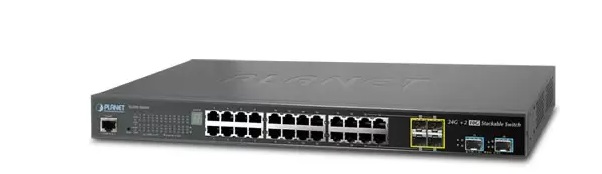

24-Port GE + 6-Port 1G/10G SFP Managed Stackable Switch PLANET SGS-5220-24T2X
- The SGS-5220-24T2X is Layer 2+ Managed Stackable Gigabit Switch, which supports both IPv4 and IPv6 protocols and hardware Layer 3 static routing capability, and provides 24 10/100/1000Mbps Gigabit Ethernet ports, 4 shared Gigabit SFP slots, 2 10G SFP+ uplink slots and another 2 dedicated 10G SFP+ stacked interfaces for stacking with the series of switches. Up to 16 units, 384 Gigabit Ethernet ports and 32 10Gbps SFP+ slots can be managed by a stacking group and you can add ports and functionality as needed.
Đặc tính kỹ thuật
| Hardware Specifications | |
| Copper Ports | 24 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
| 10/100/1000Mbps/SFP Combo Interfaces | 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24 |
| 10Gbps Fiber Uplink Ports | 2 1/10GBase-SR/LR SFP+ slots |
| 10G Stackable Ports | 2 10GBase-SR/LR SFP+ slots |
| Console | 1 x RJ-45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 128Gbps/non-blocking |
| Throughput | 95.2Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and ageing |
| Shared Data Buffer | 4 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
| LED | - System: PWR (Green) Master (Green) Fan1 Alert (Green) Fan2 Alert (Green) - Ethernet Interfaces (Port 1 to Port 24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): 1000 (Green), 100 (Orange) - 1/10G SFP+ Interfaces (Port 25 to Port 26): 10G (Green), 1G (Orange) - 10G Stackable Interfaces (Port 27 to Port 28): Stack (Green), LNK/ACT (Orange) |
| Power Requirements | 100~240V AC, 50/60Hz, 2A |
| Power Consumption (Full Loading) | 43 watts |
| ESD Protection | 6KV DC |
| Dimensions (W x D x H) | 440 x 200 x 44.5 mm, 1U high |
| Weight | 2850g |
| Stacking Functions | |
| Stacking Ports | 2 SFP+ slots |
| Stacking Numbers | 16 |
| Stacking Bandwidth | 40Gbps full duplex |
| Stack ID Display | 7-Segment LED display (1~9, A~F, 0) |
| Stack Topology | Ring/Chain/Back-to-Back |
| Layer2 Management Function | |
| Basic Management Interfaces | Console, Telnet, Web Browser, SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk Supports 10 groups of 16-Port trunk |
| QoS | Traffic classification based, Strict priority and WRR 8-Level priority for switching - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP Packet |
| IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups IGMP Querier mode support |
| MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast Groups MLD Querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| SNMP MIBs | RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Layer3 Function | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware Static Routing IPv6 hardware Static Routing |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2 |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
- Bảo hành: 24 tháng.
