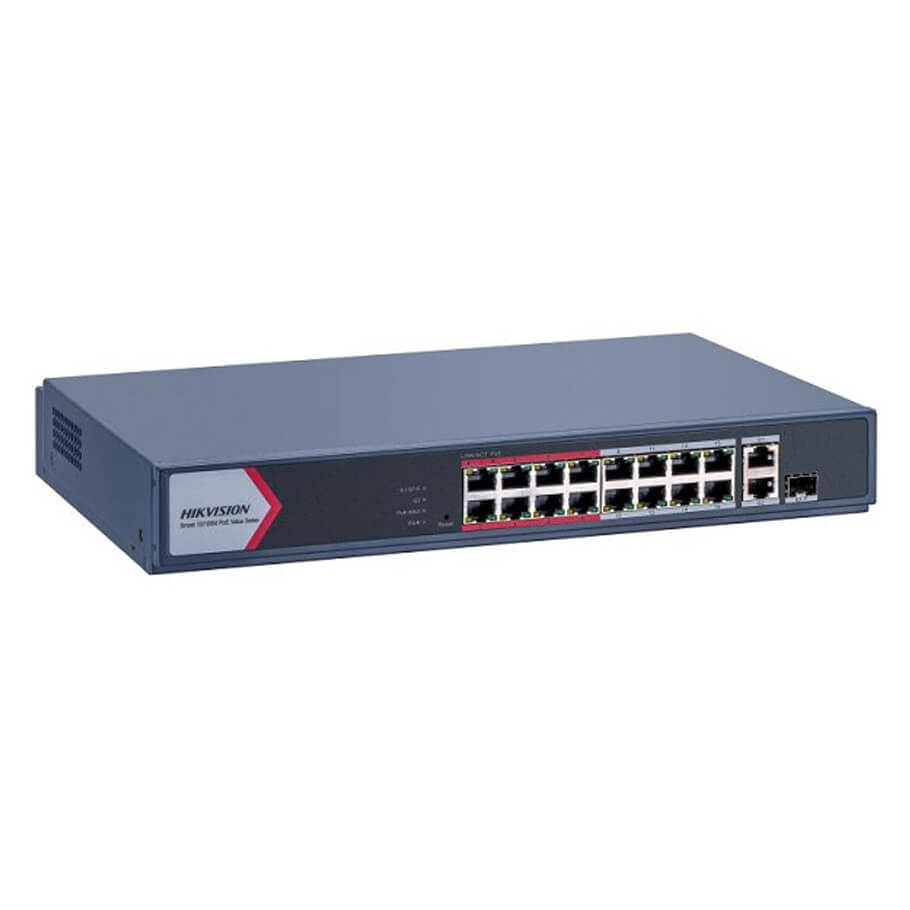

16-Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1318P-EI/M
- 16 cổng PoE 10/100 Mbps, 1 cổng combo Gigabit, 1 cổng RJ45 Gigabit.
- Chuẩn IEEE 802.3at/af cho các cổng PoE.
- Quản lý cấu trúc mạng, cảnh báo tự động, theo dõi tình trạng mạng.
- Bảo vệ chống sét 6 KV cho các cổng PoE.
- Camera AF/AT có thể hoạt động trong phạm vi lên đến 300m ở chế độ mở rộng.
Thông số kỹ thuật
| Network Parameters | |
| Port Type | RJ45 port,full duplex,MDIMDI-X adaptive |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z |
| Ports | 16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port |
| High Priority Ports | Ports 1 to 8 |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default),Extend mode |
| MAC Address Table | 16 K |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Software Function | |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| Device Maintenance | Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. |
| General | |
| Shell | Metal material |
| Weight | 1.8 kg |
| Dimensions (W × H × D) | 335.00 mm × 44.50 mm × 226.00 mm |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
- Bảo hành: 24 tháng.
