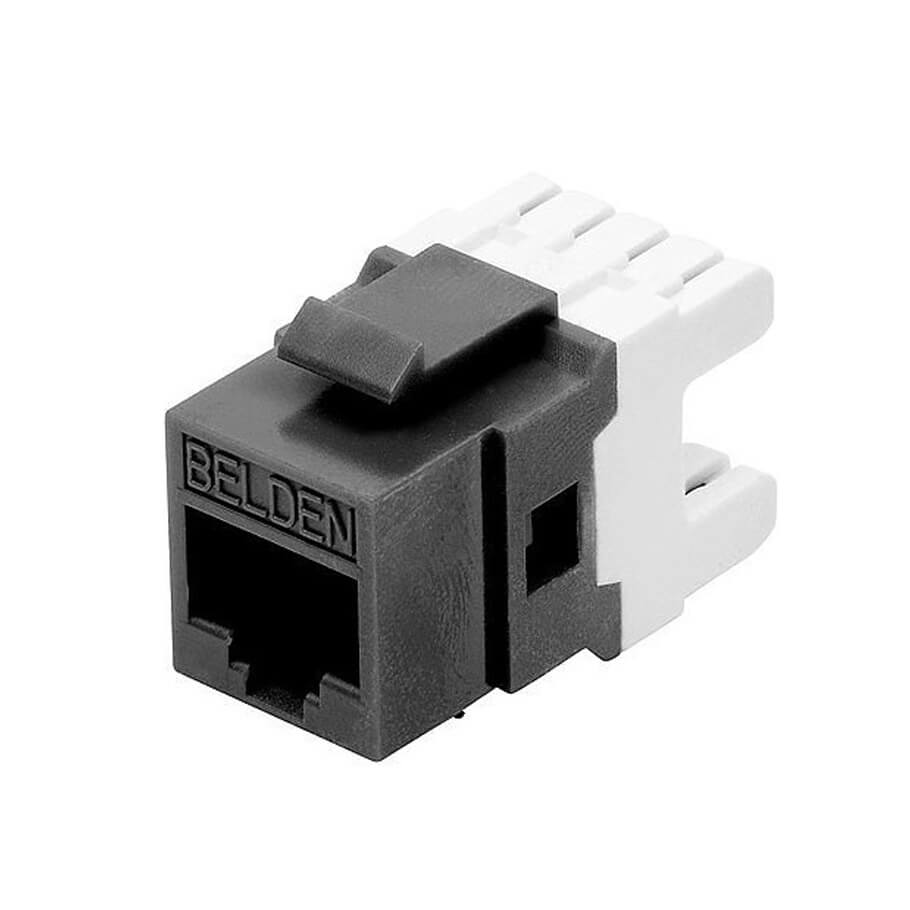

10GX Modular Jack CAT.6 BELDEN AX102283
- Part number: AX102283
- IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T.
- Wiring Scheme: T568A/B.
- Electrical Characteristics
+ Dielectric Strength: 1000V RMS@60Hz for 1 minute;
+ Current Rating: 1.500A;
+ Insulation Resistance: 500 M-Ohm Minimum;
+ Max Contact Resistance: 20 mOhm;
+ Termination Resistance: 2.5 mOhm;
- Temperature Range
+ Installation Temperature Range: -10°C to +60°C;
+ Storage Temperature Range: -40°C to +70°C;
+ Operating Temperature Range: -10°C to +60°C.
- Mechanical Characteristics
+ Footprint/Type: KeyConnect;
+ Tool Compatibility: Belden 110 Connecting Tool;
+ Plug/Jack Compatibility: RJ45, RJ11;
+ Termination Front Connection: Mated Connection;
+ Termination Front Connection Durability: 750 cycles;
+ Termination Rear Connection: IDC Connection;
+ Termination Rear Connection Durability: 20 terminations;
+ Cable/Connector Retention: 15 lbs.;
+ Connector/Hardware Retention: 20 lbs;
+ Plug/Connector Retention: 11.250 lbs.
- Standards
+ Data Category: Category 6A;
+ TIA/EIA Compliance: Category 6A - TIA 568.2-D, ISO/IEC 11801:2002 Amendment 2;
+ Other Standards: FCC Part 68, Subpart F, IEC 60603-7;
+ Third Party Performance Verification: ETL - Verified Category 6A;
- Dimension (H x W x D): 0.9 x 0.675 x 1.17 in.
- Color: Black.
