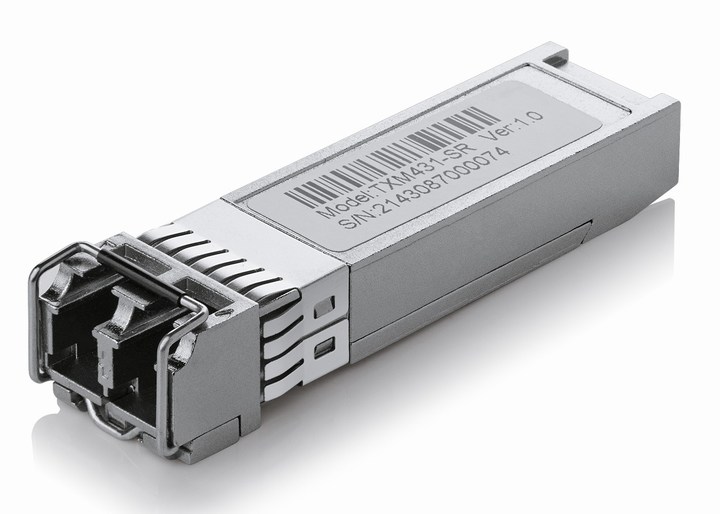

10GBase-SR SFP+ LC Transceiver TP-LINK TXM431-SR
- Multi-mode SFP+ LC Transceiver.
- Hot-Pluggable with maximum flexibility.
- Compatible with multiple TP-LINK switch models/ SFP+ modules.
- 850nm multi-mode transceiver.
- 300m max distance.
- Supports full duplex.
- LC/UPC Connector.
- 10Gbps Ethernet connectivity.
- SFP+ form factor.
- Hot pluggable.
Specifications
|
Standards and Protocols |
IEEE 802.3ae, CSMA/CD, TCP/IP |
|
Wave Length |
850nm |
|
Fiber Type |
50/125um or 62.5/ 125um Multi-mode |
|
Max. Cable Length |
300m or 33m |
|
Data Rate |
10Gbps |
|
Port Type |
LC/UPC |
|
Transmission power |
-1.0dBm (Max) |
|
-7.3dBm (Min) |
|
|
Reception power |
-1.0dBm (Max) |
|
-9.9dBm (Min) |
|
|
Sensitivity |
-11.1dBm |
|
Safety & Emission |
FCC, CE |
|
Power Supply |
3.3V |
|
Environment |
Operating Temperature: 0ºC ~70ºC (32ºF ~ 158ºF) |
|
Storage Temperature: -40ºC ~80ºC (-40ºF ~ 176ºF) |
|
|
Operating Humidity: 10% ~ 90% non-condensing |
|
|
Storage Humidity: 5% ~ 90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
