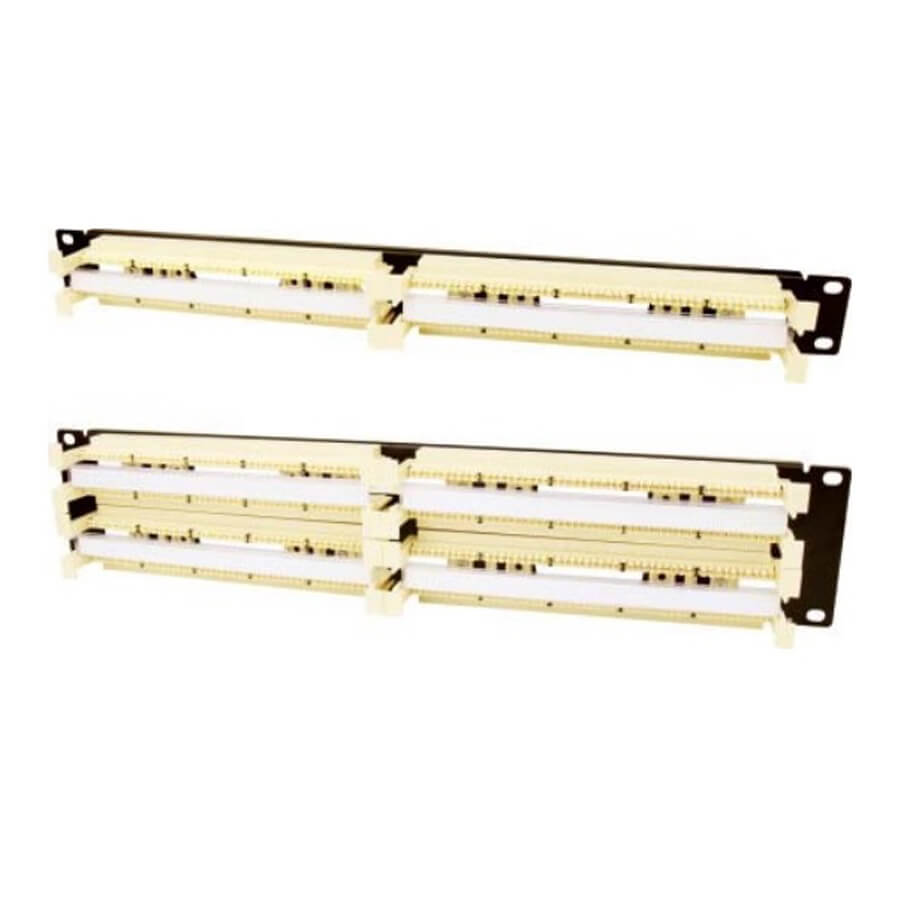

100-pair CAT.5E 110 Base Unit VIVANCO VC110B5R1A
- VIVANCO CAT5e 100 pair 110 Base Unit (Rack Mount, Easy Installation).
- Part number: VC110B5R1A.
Features and Benefít
- Use 5 pair punching tool to facilitate the installation time and cost.
- Support 4 pair and 5 pair connector.
- Used for 110 to 110 or 110 to RJ45 system.
| ELECTRICAL CHARACTERISTICS | |
| Dielectric Strength | DC 1000V (AC750V) 1min, no breakdown and arcing phenomena |
| Connecting Reactance (Ω) | ≤200mΩ |
| Insulation Resistance (Ω) | Under normal atmospheric pressure ≥500mΩ |
| PHYSICAL CHARACTERISTICS | |
| AWG | 22~26AWG |
| IDC Insertion Life Span | ≥ 200 |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
