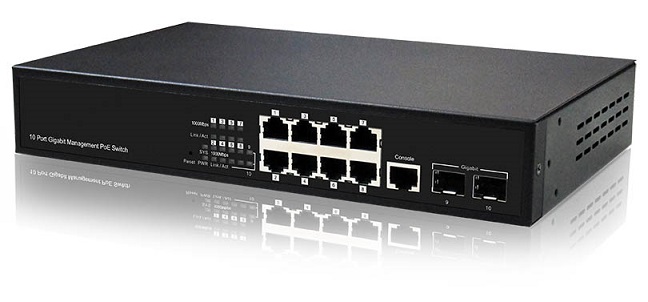

10-Port 10/100/1000Mbps PoE Switch IONNET IGS-1008 (130Watt)

Trang Chủ >> Thiết bị mạng >> Switch PoE IONNET >> 10-Port 10/100/1000Mbps PoE Switch IONNET IGS-1008 (130Watt)
Mã số:04220018
10-Port 10/100/1000Mbps PoE Switch IONNET IGS-1008 (130Watt)

10-Port 10/100/1000Mbps PoE Switch IONNET IGS-1008 (130Watt)

Bao gồm 10-Port PoE, công suất 130 Watt

10 ports Gigabit 10/100/1000 Mbps Switch with 8 ports IEEE802.3af/ 802.3at (PoE+) + 2 Giga SFP + 1 port RJ45 (console)

Max 30 watt per port

Metal case, Rackmount Design 1U

Web Management


IGS-1008(130) series are high performance and cost efficiency PoE Smart Switch. It comes with 8 dedicated 10/100/1000Mbps copper ports and 2 Gigabit Fiber ports. IGS-1008 (130) offers useful PoE management features to control and monitor your PD devices (Wireless AP, IP Phone, IP Camera ...etc.). It also provides a comprehensive set of switch functions that makes you easy to deployment reliability and ensuring performance business networks.


Providing 8 ports of 10/100/1000Mbps TX switching port and 2 Giga Fiber SFP Slot.

Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX

Complying with 802.3x Flow Control and 802.3az Green Ethernet

8 Ports PSE/ PoE function, complying with IEEE-802.3at / IEEE802.3af

Supporting the power up to Max 15.4Watt/ 30Watt for each PSE/PoE port

Supporting the flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode

All ports support Auto-MDIX function

Broadcast storm control and supporting store & forward operation

Non-blocking & Non-head-of-line blocking full-wire speed forwarding

Auto-learning networking configurations

Built-in 8K MAC learning table, 4M bit buffer memory

Filtering/Forwarding Rate: 1000Mbps/ 1488,000pps 100Mbps/ 148,800pps; 10Mbps/ 14,880pps

Supports packet length 1522 bytes/ Maximum 1536 bytes and Jumbo frames: 9.6K

Status LEDs: System Power, Link/Activity and PoE/PSE on line

Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat.

5 UTP/ STP, 1000BASE-T Cat. 5E UTP/STP.

Operating Temperature: 0°C ~ 40°C

Storing Temperature: -20°C ~ 90°C

Humidity: 10% ~90% RH (Non-condensing)

Dimension (L x W x H): 263 x 160 x 44 mm (1U high)

Power Consumption: 10Watt

Maximum Supply PoE Power per device: 130Watt

Weight: 1.45 kg

Safety & EMI Certificates: CE & FCC

Smart plug & play



IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE802.3ab 1000BaseT

IEEE802.3af PoE

IEEE802.3at PoE+


Number of Ports:

8 10/100/1000BaseT with RJ-45 Connector with 2 port SFP, 1 port RJ45 ( console 1152008N1)

8 PSE ports with RJ-45 connectors

Data Transfer Rate

Ethernet: 10Mbps/Half-Duplex, 20Mbps/Full-Duplex

Fast Ethernet: 100Mbps/ Half-Duplex, 200Mbps/ Full-Duplex

Gigabit: 2000Mbps/ Full-Duplex

Transmission Media

10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m

100BaseTX Cat. 5 UTP/STP, up to 100 m

1000Base T cat 5,6 UTP, up to 100m

Led Indicators

Per Port:

(TX): 10/100/1000M Link/Act, PoE

Per Unit: Power

Maximum Supply PoE per Device

130Watt (as table 1)

Power Consumption



263x160x44 mm ( L x W x H )


1.45 kg


10 to 90% RH (non-condensing)


FCC Class A, CE

Sản xuất tại Taiwan

Bảo hành: 12 tháng

Giá: Vui lòng gọi
