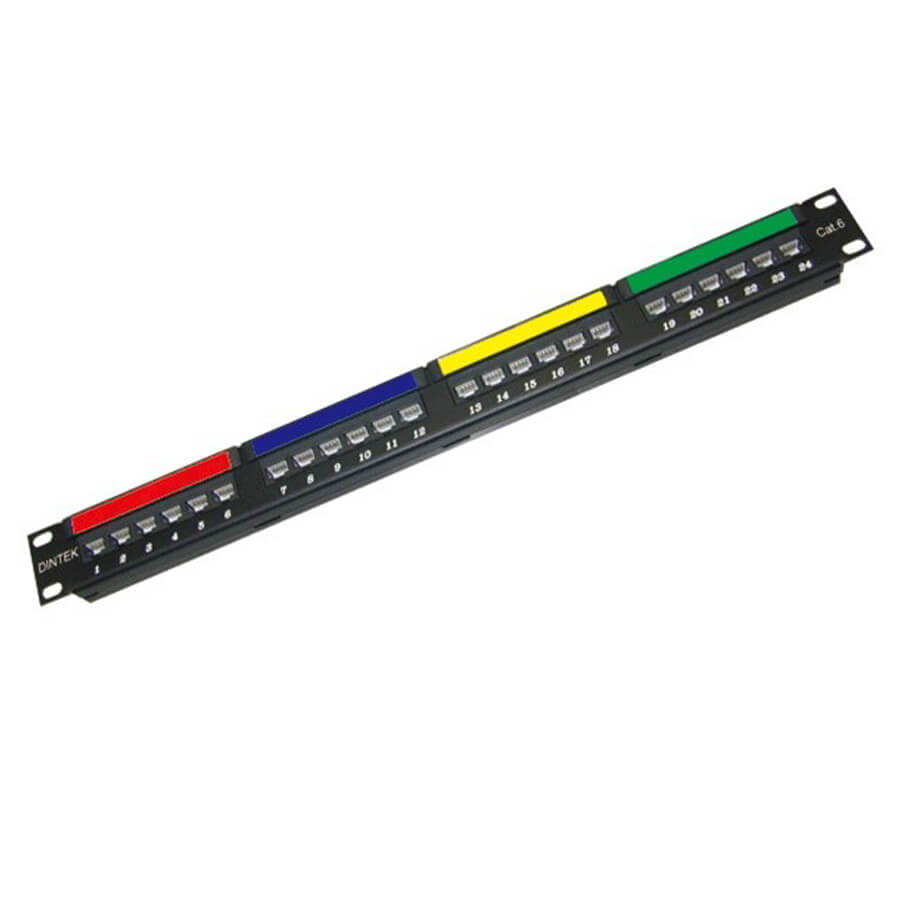

Patch panel 24 port Dintek, CAT.6, 19 inch (1402-04011)
- Product Code: 1402-04011
- Cat.6 19 inch 110/Krone dual type Patch Panel 24 ports, 1U size.
Cat.6 19” 110/ krone dual type Patch Panel 24 ports, 1U size with color label, Component level
- The DINTEK PowerMAX Connectivity solution is comprised of a system of patch panels, work area outlets, and patch cords to enable users to specify the highest level of channel performance available.
- Our Category 6 patch panels are designed to exceed ANSI/TIA-568-C.2 performance specifications and are backward compatible with lower level cabling products.
- DINTEK Category 6 panels support both T568A and T568B wiring schemes and can be terminated with an industry standard 110 or Krone installation tool. Panels include a mounting slot for the DINTEK cable management bar, which easily mounts to the back of the panel, for improved routing and strain releif functionality.
- Combined with other DINTEK PowerMAX Products, they are the perfect solution to your voice and data communications needs.
Features
- Meet ANSI/TIA-568-C.2 Cat.6 component level connecting hardware performance requirements
- Stripped window label for easy management
- 110 and krone dual type IDC termination
- 19 inch 24 port patch panel, 1U size & 48 port panel, 2U size.
- Accept 22~26AWG, stranded or solid wire
- Modular jack meet FCC part 68
- Wiring: T568A/B
- Optional rear cable management
Electrical Characteristics
- Insulation resistance between any two conductors: 500 MegaOhms min.
- Dielectric with standing voltage: 1000V, RMS, 60HZ, 1 MIN.
- Contact resistance: 20 MilliOhms max.
- Current rating: 1.5 AMPS at 20℃
Physical Characteristics
- Housing: High-impact, flame-retardant plastic, UL94V-0 rated, Spring wire/contact blades
- Contact material: Phosphor bronze alloy
- Plate: SPCC-SD 16G
Mechanical Characteristics
- Total mating force: 800 GRAMS for a 8 wire leads minimum.
- Retention: 30lbs min between the jack and plug.
- Insertion/Extraction life: 750 cycles minimum.
- Number of IDC terminations: 200 minimum.
Standards
- UL Verified
- ISO/IEC11801 2nd edition
- ANSI/TIA Standard 568-C.2
- CENELEC EN 50173
Applicatons
- Voice; T1; ISDN
- 10BASE-T (IEEE 802.3)
- 16Mbps Token Ring (IEEE802.5)
- 100VG-AnyLAN (IEEE802.12)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
