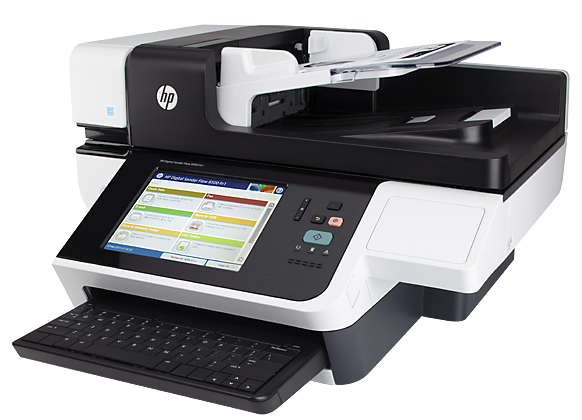

Máy quét 2 mặt HP Digital
Sender Flow 8500 fn1 Document Capture Workstation
-
Công nghệ Scan:
Charge Coupled Device (CCD), Contact Image Sensor (CIS).
-
Loại scan:
Flatbed, ADF.
-
Chế độ scan 2 mặt.
-
Tốc độ Scan: 60
trang/ phút, 120 hình/ phút (trắng đen, xám, màu 200 ppi; trắng đen, xám 300 ppi);
45 trang/ phút/ 90 hình/ phút (màu, 300 ppi).
-
Độ phân giải Scan:
600 x 600 dpi.
-
Khả năng nạp tài
liệu tự động: 100 tờ.
-
Định dạng file
scan: JPG, TIFF, MTIFF, PDF.
-
Nguồn sáng: Đèn
sáng Diode (LED).
-
Tốc độ vi xử lý: 1
GHz.
-
Bộ nhớ: 1536 MB.
-
Chu kỳ in hàng
tháng: 5.000 trang/ tháng.
-
Khổ giấy: A4, A5,
A6, letter, legal.
-
Nhiệt độ hoạt
động: 10°C - 35°C.
-
Hỗ trợ kết nối:
10/100/1000 Ethernet, 1 Hi-Speed USB Host (rear), 1 Hi-Speed USB Host (walk-up),
1 Hardware Integration Pocket (HIP) Hi-Speed USB.
-
Nguồn điện: 100 -
240VAC.
-
Kích thước: 520.7
x 533.4 x 308.1 mm.
-
Trọng lượng: 20.18
kg.
Đặc tính kỹ thuật
|
Scan technology |
Charge Coupled
Device (CCD) Flatbed, Contact Image Sensor (CIS) ADF |
|
Scan type |
Flatbed, ADF; Color
scanning: Yes |
|
Scan resolution |
Enhanced: Up to 600
dpi; Hardware: Up to 600 x 600 dpi; Optical: Up to 600 dpi |
|
Scan file format |
JPG, TIFF, MTIFF,
PDF (image-only, searchable, high-compressed and AES encrypted), PDF/A,
TXT, Unicode TXT, RTF, HTML |
|
Scanning options (ADF) |
Single-pass duplex |
|
Scan speed (ADF) |
Up to 60 ppm/ 120
ipm (b&w, grayscale, color 200 ppi; b&w, grayscale 300 ppi), Up to 45
ppm/ 90 ipm (color 300 ppi) |
|
Software included |
Embedded IRIS OCR
engine, compatible with HP Digital Sending Software 4.91.21 software
(optional) |
|
Bit Depth/Grayscale levels |
24-bit/ 256 |
|
Standard memory |
1536 MB (768 MB on
primary processor, 768 MB on scanner processor) |
|
Processor speed |
1 GHz |
|
Hard disk capacity (Printer) |
Standard, HP High
Performance Secure Hard Disk (AES128 encryption, Secure Erase, minimum
250 GB) |
|
Light source (scanning) |
Light Emitting Diode
(LED) |
|
Media types |
Paper (plain,
inkjet, photo), envelopes, labels, cards (business, insurance, embossed,
plastic ID, credit) [flatbed only] |
|
Media size (ADF) |
Letter, legal,
executive, A4, A5, A6, custom sizes |
|
Duplex ADF scanning |
Yes |
|
Auto document feeder capacity |
Standard, 100 sheets |
|
Standard connectivity |
10/100/1000
Ethernet, 1 Hi-Speed USB Host (rear), 1 Hi-Speed USB Host (walk-up), 1
Hardware Integration Pocket (HIP) Hi-Speed USB |
|
Network ready |
Standard (built-in
Ethernet), optional (WiFi 802.11g) |
|
Duty cycle |
Up to 5,000 pages
daily |
|
Supported network protocols |
IPv4/IPv6: Apple
Bonjour Compatible (Mac OS 10.2.4 and higher), SNMPv1/v2c/v3, HTTP,
HTTPS, FTP, TFTP, WS Discovery, IPsec/Firewall; IPv6: DHCPv6, MLDv1,
ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, and WINS |
|
Control panel |
Full-SVGA display
with HP Easy Select UI, Screen brightness-adjustment control, LEDs
(Ready, Data, Attention), Buttons (Start, Cancel, Sleep, Reset) Virtual
keyboard, Hi-Speed USB Host port |
|
Minimum system requirements |
PC: Windows® folder
share, DFS, Novell share, Windows® client to access the Embedded Web
Server pages |
|
Operating temperature range |
50 to 95°F (10 to
35ºC) |
|
Storage temperature range |
-40 to 149°F (-40 to
65ºC) |
|
Dimensions |
520.7 x 533.4 x
308.1 mm |
|
Weight |
20.18 kg |
-
Bảo hành chính hãng HP 01 năm.
