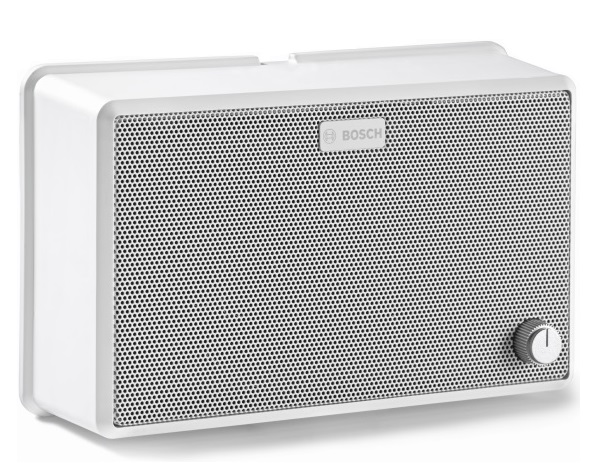

Loa hộp 6W BOSCH LB7-UC06V
- Suitable for speech and music reproduction
- Compact size
- Integrated volume control
- Knock-out ports for conduit - or cable entries
- Material: ABS
Specifications
| Model | LB7-UC06V |
| Rated power (PHC) | 6W |
| Transformer taps | 70V: 6W, 3W, 1.5W, 0.75W, 0.375W 100V: 6W, 3W, 1.5W, 0.75W |
| Sound pressure level at 6W/1W (1 kHz, 1m) | 102 dB / 94 dB |
| Sound pressure level at 6W/1W (1 kHz, 4m) | 90 dB / 82 dB |
| Frequency response (-10 dB) | 160 Hz to 20 kHz |
| Opening angle at 1 kHz / 4 kHz (-6 dB) | 180°/ 85° (horizontal) 180°/ 98°(vertical) |
| Rated voltage | 70/100 V |
| Connector | 1 x 2-pole ABS screw terminal block |
| Acceptable wire gauge | 0.5 to 4 mm2 |
| Dimensions (H x W x D) | 146 x 234 x 70 / 82 mm |
| Weight | 1.1 kg |
| Color | White (RAL 9003) |
| Operating temperature | -10°C to +55°C |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
